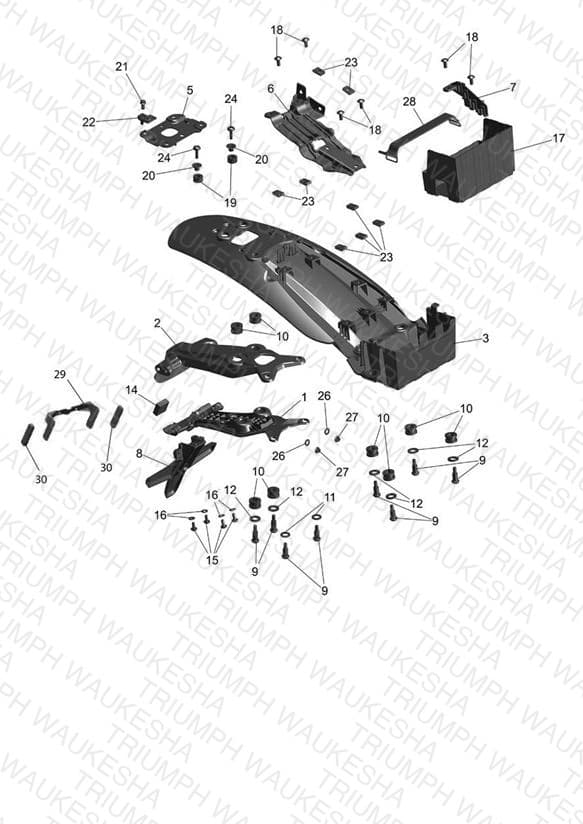

Rear Mudguard
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA232812 Bracket, Structure Plate Lower | Bracket, Structure Plate Lower | 1 | $9.61 | Out of Stock | Notify Me |
| 2 | TA232811 Bracket, Structure Plate Upper | Bracket, Structure Plate Upper | 1 | $6.42 | Out of Stock | Notify Me |
| 3 | 56TA40BA Undertray, Phantom Blk Gloss | Undertray, Phantom Blk Gloss | 1 | $65.04 | Available to order | 1 |
| 4 | JG171031 Nut, Clip, M5 | Nut, Clip, M5 | 4 | $0.63 | Available to order | 4 |
| 5 | TA181436 Bracket, Fender | Bracket, Fender | 1 | $12.75 | Available to order | 1 |
| 6 | TA111034 Bracket, Cannister | Bracket, Cannister | 1 | $12.17 | Available to order | 1 |
| 7 | TA113801 Bracket, Relay | Bracket, Relay | 1 | $4.23 | Available to order | 1 |
| 8 | TA181426 Structure, Plate | Structure, Plate | 1 | $18.69 | Out of Stock | Notify Me |
| 9 | LBU00208 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 8 | $1.91 | Available to order | 8 |
| 10 | JG171022 Grommet, Tank Mounting Rear | Grommet, Tank Mounting Rear | 8 | $1.21 | Available to order | 8 |
| 11 | KDAB1018 Washer, Plain, Small | Washer, Plain, Small | 2 | $0.10 | Available to order | 2 |
| 12 | 39258811 Plain Washer | Plain Washer | 6 | $0.43 | Available to order | 6 |
| 14 | JZ232805 Foam | Foam | 1 | $0.28 | Available to order | 1 |
| 15 | LBU00279 Screw, Socket, M5 x 0.8 | Screw, Socket, M5 x 0.8 | 4 | $0.64 | Out of Stock | Notify Me |
| 16 | KDBB0512 Plain Washer | Plain Washer | 4 | $0.10 | Available to order | 4 |
| 17 | TA181313 Damper, Battery | Damper, Battery | 1 | $16.06 | Available to order | 1 |
| 18 | KBUA0614 Screw, Truss, M6 x 1 | Screw, Truss, M6 x 1 | 6 | $0.37 | Available to order | 6 |
| 19 | JP181279 Grommet | Grommet | 2 | $0.37 | Available to order | 2 |
| 20 | JP181280 Collar | Collar | 2 | $0.71 | Available to order | 2 |
| 21 | KAED0612 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 1 | $0.23 | Available to order | 1 |
| 22 | TA181450 Bracket, Connector | Bracket, Connector | 1 | $3.61 | Available to order | 1 |
| 23 | 05161256 Clip Nut M6 | Clip Nut M6 | 8 | $0.63 | Out of Stock | Notify Me |
| 24 | LBU00190 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 2 | $0.97 | Available to order | 2 |
| 26 | KDBB0613 Plain Washer | Plain Washer | 3 | $0.10 | Out of Stock | Notify Me |
| 27 | KCGF0606 Nut, Hex, Flgd | Nut, Hex, Flgd | 2 | $0.18 | Out of Stock | Notify Me |
| 28 | JL113825 Strap | Strap | 1 | $3.50 | Available to order | 1 |
| 29 | TA181447 Bracket, Reflex Reflector | Bracket, Reflex Reflector | 1 | $12.66 | Available to order | 1 |
| 30 | TA401016 Reflex Reflector | Reflex Reflector | 2 | $7.20 | Available to order | 2 |
| 31 | JF232807 Bracket, Number Plate Rear | Bracket, Number Plate Rear Not Illustrated | 1 | $18.20 | Out of Stock | Notify Me |
