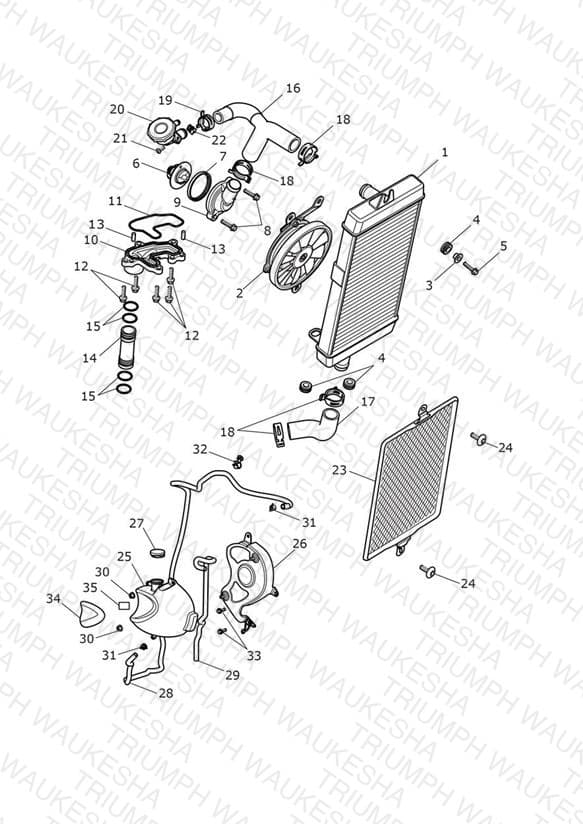

Cooling System
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2101333 Radiator | Radiator | 1 | $895.87 | Available to order | 1 |
| 2 | T2101666 Fan, Radiator | Fan, Radiator | 1 | $475.29 | Available to order | 1 |
| 3 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 1 | $5.78 | Available to order | 1 |
| 4 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 3 | $1.91 | Available to order | 3 |
| 5 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 1 | $2.46 | Available to order | 1 |
| 6 | T2100935 Thermostat, 75 Deg | Thermostat, 75 Deg | 1 | $68.42 | Out of Stock | Notify Me |
| 7 | T2100201 Seal, Thermostat | Seal, Thermostat | 1 | $7.14 | Available to order | 1 |
| 8 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.48 | Available to order | 2 |
| 9 | T2101255 Cover, Water Outlet | Cover, Water Outlet | 1 | $55.12 | Available to order | 1 |
| 10 | T2101266 Coolant Manifold | Coolant Manifold | 1 | $129.27 | Available to order | 1 |
| 11 | T2101277 Sealing Ring, Coolant Manifold | Sealing Ring, Coolant Manifold | 1 | $14.66 | Out of Stock | Notify Me |
| 12 | T3200134 Bolt, RHHF, M6x25, Encaps | Bolt, RHHF, M6x25, Encaps | 5 | $2.74 | Available to order | 5 |
| 13 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 2 | $1.13 | Available to order | 2 |
| 14 | T2101233 Pipe, Coolant Feed, Internal | Pipe, Coolant Feed, Internal | 1 | $29.65 | Available to order | 1 |
| 15 | T3600124 O Ring, ID 21.5 x 3 | O Ring, ID 21.5 x 3 | 4 | $3.39 | Available to order | 4 |
| 16 | T2101180 T-Piece, Coolant, Assy | T-Piece, Coolant, Assy | 1 | $27.77 | Available to order | 1 |
| 17 | T2101477 Hose, Coolant, Rad to Engine | Hose, Coolant, Rad to Engine | 1 | $13.67 | Available to order | 1 |
| 18 | T3706215 Clamp, Constant Tension, Dia 30 | Clamp, Constant Tension, Dia 30 | 4 | $13.99 | Available to order | 4 |
| 19 | T3706212 Clamp, Constant Tension, Dia 23 | Clamp, Constant Tension, Dia 23 | 1 | $13.99 | Available to order | 1 |
| 20 | T2101499 Filler Neck, Coolant | Filler Neck, Coolant | 1 | $79.84 | Available to order | 1 |
| 21 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 1 | $0.97 | Out of Stock | Notify Me |
| 22 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.39 | Available to order | 1 |
| 23 | T2109602 Grill, Radiator | Grill, Radiator > AC6470 All Expt BR; > AE0473 BR Only | 1 | $112.13 | Out of Stock | Notify Me |
| 24 | T3330958 Screw, But/Hd, M5 x 10, Blk, Enc | Screw, But/Hd, M5 x 10, Blk, Enc | 2 | $0.97 | Available to order | 2 |
| 25 | T2101175 Expansion Tank, Coolant | Expansion Tank, Coolant | 1 | $83.67 | Available to order | 1 |
| 26 | T2101176 Mount, Expansion Tank | Mount, Expansion Tank | 1 | $41.26 | Available to order | 1 |
| 27 | T2101015 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $2.00 | Available to order | 1 |
| 28 | T2100787 Hose, Expansion, Coolant | Hose, Expansion, Coolant | 1 | $59.87 | Available to order | 1 |
| 29 | T2100779 Hose, Expansion Tank Overflow | Hose, Expansion Tank Overflow | 1 | $51.31 | Available to order | 1 |
| 30 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 31 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 2 | $5.42 | Available to order | 2 |
| 32 | T3700190 Clip, Rear Brake Hose | Clip, Rear Brake Hose | 1 | $3.04 | Available to order | 1 |
| 33 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.50 | Available to order | 2 |
| 34 | T2101177 Cosmetic Cover, Expansion Tank | Cosmetic Cover, Expansion Tank | 1 | $2.95 | Available to order | 1 |
| 35 | T3650201 Adhesive Tape, 19mm x 25mm | Adhesive Tape, 19mm x 25mm | 1 | $12.83 | Backorder — Late August 2026 | 1 |
| 36 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not illustrated | 1 | $187.12 | Available to order | 1 |
