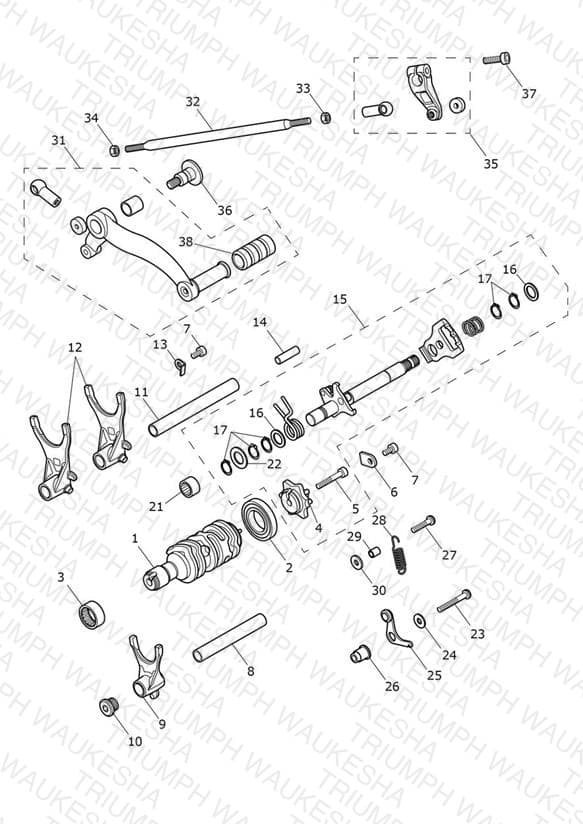

Gear Selectors & Pedal
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1193006 Drum, Selector, 6 Speed | Drum, Selector, 6 Speed > 953447 | 1 | $282.43 | Unavailable | 1 |
| 1 | T1190138 Drum, Selector, 6 Speed | Drum, Selector, 6 Speed 953448 > | 1 | $396.11 | Available to order | 1 |
| 2 | T1190286 Bearing, Ball | Bearing, Ball | 1 | $48.95 | Available to order | 1 |
| 3 | T3802210 Bearing, Needle, 22 x 28 x 10 | Bearing, Needle, 22 x 28 x 10 | 1 | $12.94 | Backorder — Mid September 2026 | 1 |
| 4 | T1197500 Detent Wheel | Detent Wheel | 1 | $41.44 | Available to order | 1 |
| 5 | T3050302 Capscrew, Skt/Hd, M6 x 35 | Capscrew, Skt/Hd, M6 x 35 | 1 | $1.21 | Available to order | 1 |
| 6 | T1190207 Keeper Plate | Keeper Plate | 1 | $20.60 | Available to order | 1 |
| 7 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw | 2 | $1.47 | Available to order | 2 |
| 8 | T1194321 Selector Shaft, Input | Selector Shaft, Input | 1 | $42.51 | Available to order | 1 |
| 9 | T1198600 Selector Fork, Input | Selector Fork, Input | 1 | $140.21 | Backorder — Late August 2026 | 1 |
| 10 | T3456666 Plug, Flgd, M18 x 1.5, Slv, Enc | Plug, Flgd, M18 x 1.5, Slv, Enc | 1 | $7.80 | Available to order | 1 |
| 11 | T1190134 Selector Fork Shaft | Selector Fork Shaft | 1 | $42.41 | Available to order | 1 |
| 12 | T1198800 Selector Fork, Output | Selector Fork, Output | 2 | $166.86 | Out of Stock | Notify Me |
| 13 | T1191458 Retainer, Selector Shaft | Retainer, Selector Shaft | 1 | $2.55 | Available to order | 1 |
| 14 | T1190145 Dowel, Abutment | Dowel, Abutment | 1 | $13.51 | Available to order | 1 |
| 15 | T1191922 Kit, Spares Selector Mechanism | Kit, Spares Selector Mechanism | 1 | $142.08 | Available to order | 1 |
| 16 | T3550236 Washer, 14 x 20 x 1.6 | Washer, 14 x 20 x 1.6 | 2 | $2.95 | Available to order | 2 |
| 17 | T3502535 Circlip, Din 471, Dia. 14.0 | Circlip, Din 471, Dia. 14.0 | 5 | $1.91 | Available to order | 5 |
| 21 | T3800001 Bearing, Needle, 20 x 14 x 12 | Bearing, Needle, 20 x 14 x 12 | 1 | $8.60 | Available to order | 1 |
| 22 | T3550444 Washer, 15.5 x 25 | Washer, 15.5 x 25 | 1 | $1.78 | Available to order | 1 |
| 23 | T3331499 Screw, Pan/Hd, Tx, M6 x 35 | Screw, Pan/Hd, Tx, M6 x 35 | 1 | $2.37 | Available to order | 1 |
| 24 | T3554200 Washer, Hardened, 6.5 x 16 x 1 | Washer, Hardened, 6.5 x 16 x 1 | 1 | $3.77 | Available to order | 1 |
| 25 | T1190159 Detent Arm Assembly | Detent Arm Assembly | 1 | $23.95 | Available to order | 1 |
| 26 | T1194200 Dowel, Detent Arm | Dowel, Detent Arm | 1 | $9.31 | Available to order | 1 |
| 27 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 1 | $1.06 | Available to order | 1 |
| 28 | T1190109 Spring, Linear, Detent Arm | Spring, Linear, Detent Arm | 1 | $5.14 | Available to order | 1 |
| 29 | T3000042 Spacer, Turned | Spacer, Turned | 1 | $1.72 | Available to order | 1 |
| 30 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 1 | $1.40 | Available to order | 1 |
| 31 | T2081562 Gearchange Pedal Assembly | Gearchange Pedal Assembly | 1 | $121.69 | Available to order | 1 |
| 32 | T2081557 Gearchange Rod | Gearchange Rod | 1 | $29.49 | Available to order | 1 |
| 33 | T3350304 Nut, LH, M6, Slv | Nut, LH, M6, Slv | 1 | $1.51 | Available to order | 1 |
| 34 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $0.94 | Available to order | 1 |
| 35 | T2082617 Gear Clamp Assembly | Gear Clamp Assembly | 1 | $102.64 | Available to order | 1 |
| 36 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 1 | $10.63 | Available to order | 1 |
| 37 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.51 | Available to order | 1 |
| 38 | T2081795 Rubber, Gearchange Pedal | Rubber, Gearchange Pedal | 1 | $10.90 | Backorder — Late September 2026 | 1 |
