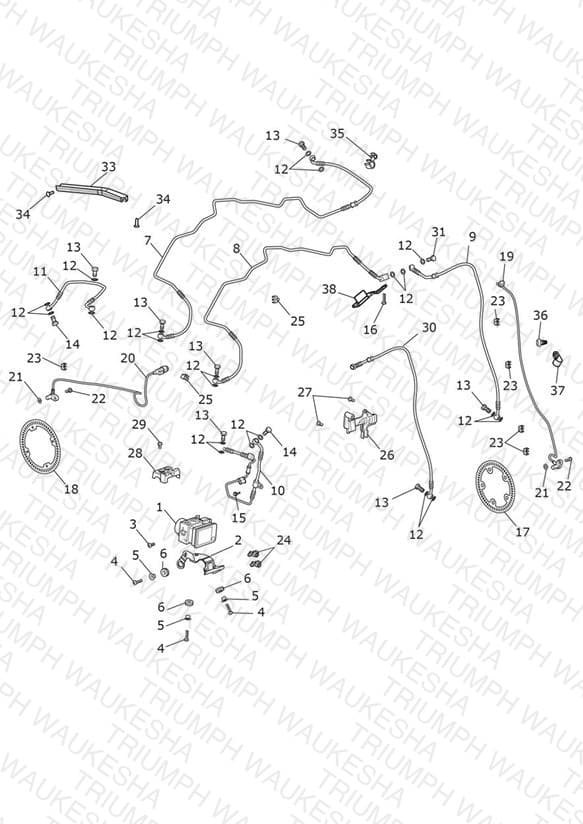

ABS System
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2021931 ABS Modulator, Wet | ABS Modulator, Wet | 1 | $2112.44 | Available to order | 1 |
| 2 | T2023066 Bracket, Modulator, ABS | Bracket, Modulator, ABS | 1 | $41.26 | Available to order | 1 |
| 3 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 4 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 3 | $2.85 | Available to order | 3 |
| 5 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 3 | $5.78 | Available to order | 3 |
| 6 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 3 | $2.10 | Available to order | 3 |
| 7 | T2028123 Brake Line, M/Cyl to Modulator, Front | Brake Line, M/Cyl to Modulator, Front | 1 | $78.87 | Backorder — Late August 2026 | 1 |
| 8 | T2028666 Brake Line, Modulator to Headstock | Brake Line, Modulator to Headstock | 1 | $96.97 | Available to order | 1 |
| 9 | T2028150 Brake Line, Headstock to Caliper, Front L | Brake Line, Headstock to Caliper, Front L | 1 | $78.87 | Out of Stock | Notify Me |
| 10 | T2028166 Brake Line, M/Cyl to Modulator, Rear | Brake Line, M/Cyl to Modulator, Rear | 1 | $106.47 | Available to order | 1 |
| 11 | T2028178 Brake Line, Modulator to Caliper, Rear | Brake Line, Modulator to Caliper, Rear | 1 | $46.36 | Available to order | 1 |
| 12 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 21 | $1.07 | Available to order | 21 |
| 13 | T3250032 Banjo Bolt, M10 x 19 | Banjo Bolt, M10 x 19 | 7 | $5.58 | Available to order | 7 |
| 14 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 2 | $7.02 | Available to order | 2 |
| 15 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 1 | $4.88 | Available to order | 1 |
| 16 | T3300069 Screw, Pan/Hd, Tx, M6 x 27, Enc | Screw, Pan/Hd, Tx, M6 x 27, Enc | 1 | $1.82 | Available to order | 1 |
| 17 | T2022122 Pulser Ring, 5 x 100.5 pcd | Pulser Ring, 5 x 100.5 pcd 60 Teeth, Silver | 1 | $134.99 | Available to order | 1 |
| 18 | T2021492 Pulser Ring, Rear | Pulser Ring, Rear 60 Teeth, Black | 1 | $216.72 | Available to order | 1 |
| 19 | T2029275 Sensor, Wheel Speed, HAS-5, 270 | Sensor, Wheel Speed, HAS-5, 270 | 1 | $202.84 | Available to order | 1 |
| 20 | T2029270 Sensor, Wheel Speed, HAS-5, 270 | Sensor, Wheel Speed, HAS-5, 270 | 1 | $184.39 | Available to order | 1 |
| 21 | T3552001 Washer, M6 x 14 x 0.5 | Washer, M6 x 14 x 0.5 Use as required | 2 | $1.79 | Available to order | 2 |
| 21 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 | 2 | $1.69 | Available to order | 2 |
| 21 | T3552003 Washer, M6 x 14 x 1.5 | Washer, M6 x 14 x 1.5 | 2 | $1.79 | Available to order | 2 |
| 21 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 | 2 | $1.91 | Available to order | 2 |
| 22 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.63 | Available to order | 2 |
| 23 | T3701103 Clip, Twin, 3.9-7 | Clip, Twin, 3.9-7 | 5 | $3.07 | Backorder — Mid September 2026 | 5 |
| 24 | T3700162 Clip, Cable/Pipe | Clip, Cable/Pipe | 2 | $1.13 | Available to order | 2 |
| 25 | T3700197 Clip, Hose, 6.5d, Twin | Clip, Hose, 6.5d, Twin | 2 | $8.01 | Available to order | 2 |
| 26 | T2025085 Moulding, Hose Routing | Moulding, Hose Routing | 1 | $8.09 | Available to order | 1 |
| 28 | T2025082 Moulding, Anti-Rotation, Banjo | Moulding, Anti-Rotation, Banjo | 1 | $13.18 | Available to order | 1 |
| 29 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 1 | $3.04 | Available to order | 1 |
| 30 | T2028151 Brake Line, Headstock to Caliper, Front R | Brake Line, Headstock to Caliper, Front R | 1 | $106.47 | Available to order | 1 |
| 31 | T3250019 Bolt, Banjo, M10 x 31 | Bolt, Banjo, M10 x 31 | 1 | $6.29 | Backorder — Early September 2026 | 1 |
| 33 | T2025110 Hose Guide, Swingarm | Hose Guide, Swingarm | 1 | $7.42 | Available to order | 1 |
| 34 | T3332737 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $4.36 | Available to order | 2 |
| 35 | T3700190 Clip, Rear Brake Hose | Clip, Rear Brake Hose | 1 | $3.04 | Available to order | 1 |
| 36 | T3450295 Fir Tree, Dia 5.7 x 12.7 | Fir Tree, Dia 5.7 x 12.7 | 1 | $1.40 | Available to order | 1 |
| 37 | T3701094 P Clip, Dia 4.4, Black | P Clip, Dia 4.4, Black | 1 | $3.24 | Backorder — Mid September 2026 | 1 |
| 38 | T2028945 Bracket, Connector Block | Bracket, Connector Block | 1 | $39.79 | Out of Stock | Notify Me |
