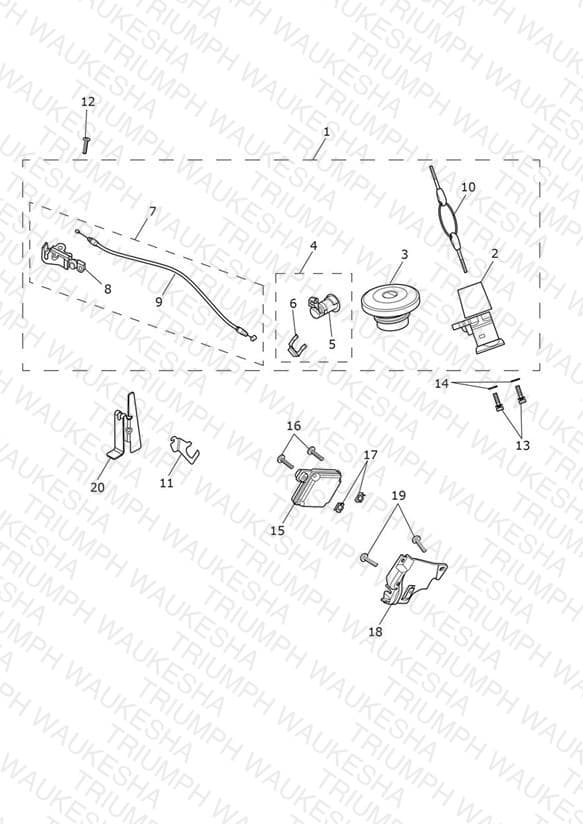

Ignition Switch & Lockset
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2501838 Lockset, TFC | Lockset, TFC | 1 | $228.91 | Available to order | 1 |
| 2 | T2505609 Ignition Lock, Combined | Ignition Lock, Combined Includes 2 keys | 1 | $272.86 | Available to order | 1 |
| 3 | T2401693 Fuel Filler Cap, Locking | Fuel Filler Cap, Locking Includes 2 keys | 1 | $121.69 | Available to order | 1 |
| 4 | T2501924 Seat Lock Assembly | Seat Lock Assembly | 1 | $125.46 | Available to order | 1 |
| 5 | T2501922 Seat Lock, Panel Mount | Seat Lock, Panel Mount | 1 | $30.70 | Out of Stock | Notify Me |
| 6 | T2505616 Clip, Seat Lock | Clip, Seat Lock | 1 | $9.97 | Available to order | 1 |
| 7 | T2501322 Latch Assy, Seat | Latch Assy, Seat | 1 | $36.21 | Available to order | 1 |
| 8 | T2503006 Seat Latch | Seat Latch | 1 | $45.80 | Out of Stock | Notify Me |
| 9 | T2501323 Cable, Seat Lock | Cable, Seat Lock | 1 | $27.77 | Available to order | 1 |
| 10 | T2504665 Key Cut, Immobiliser | Key Cut, Immobiliser | 2 | $86.22 | Out of Stock | Notify Me |
| 10 | T2504666 Key, Blank, Immobiliser | Key, Blank, Immobiliser | 2 | $43.64 | Backorder — Early September 2026 | 2 |
| 11 | T2501725 Cable Bracket, Seat Lock | Cable Bracket, Seat Lock | 1 | $14.83 | Available to order | 1 |
| 12 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 1 | $0.97 | Available to order | 1 |
| 13 | T3330327 Bolt, Shear, M6 x 22, Enc | Bolt, Shear, M6 x 22, Enc | 2 | $5.24 | Available to order | 2 |
| 14 | T3550436 Washer, M6, Elongated | Washer, M6, Elongated | 2 | $4.45 | Available to order | 2 |
| 15 | T2504061 Immobiliser ECU, with RF 434 | Immobiliser ECU, with RF 434 All Except JP | 1 | $1452.32 | Available to order | 1 |
| 15 | T2504071 Immobiliser ECU, with RF 315 | Immobiliser ECU, with RF 315 JP Only | 1 | $1452.32 | Available to order | 1 |
| 16 | T3330429 Screw, Skt Hd, M5 x 25, SS | Screw, Skt Hd, M5 x 25, SS | 1 | $2.20 | Available to order | 1 |
| 17 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 18 | T2504009 Moulding, Bracket, Immobiliser | Moulding, Bracket, Immobiliser | 1 | $9.41 | Backorder — Late September 2026 | 1 |
| 19 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 2 | $5.30 | Available to order | 2 |
| 20 | T2503640 Bracket, Lock Protection | Bracket, Lock Protection | 1 | $29.83 | Available to order | 1 |
