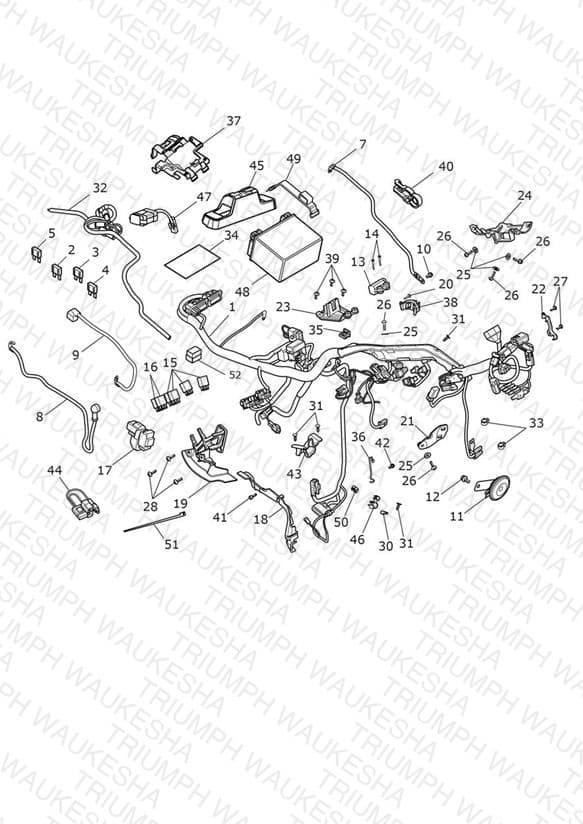

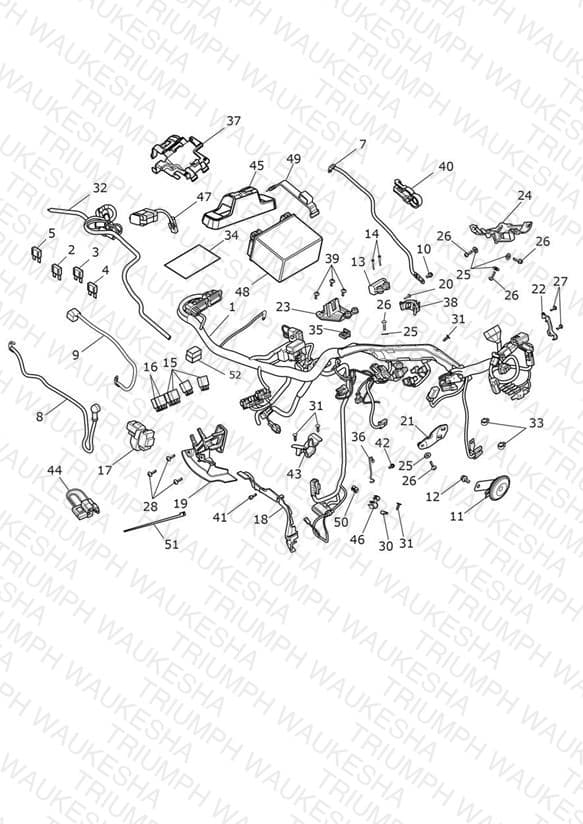

Electrical Equipment
Parts (53)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2508555 Main Harness | Main Harness | 1 | $1425.91 | Out of Stock | Notify Me |
| 2 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 2 | $4.74 | Available to order | 2 |
| 3 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 4 | $4.74 | Available to order | 4 |
| 4 | T2501325 Fuse, Mini, 25A | Fuse, Mini, 25A | 1 | $4.74 | Available to order | 1 |
| 5 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 2 | $4.74 | Available to order | 2 |
| 7 | T2500872 Earth Lead | Earth Lead > AA2565 | 1 | $44.96 | Available to order | 1 |
| 7 | T2502497 Earth Lead | Earth Lead AA2566 > | 1 | $10.34 | Available to order | 1 |
| 8 | T2507565 Starter Lead | Starter Lead | 1 | $46.94 | Available to order | 1 |
| 9 | T2507578 Lead, Battery Positive | Lead, Battery Positive > 993756 | 1 | $84.90 | Available to order | 1 |
| 9 | T2503301 Battery Lead, Positive | Battery Lead, Positive 993757 > | 1 | $84.90 | Out of Stock | Notify Me |
| 10 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.72 | Available to order | 1 |
| 11 | T2507002 Horn Assy, 440 Hz | Horn Assy, 440 Hz All Except IN | 1 | $53.24 | Available to order | 1 |
| 12 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.74 | Out of Stock | Notify Me |
| 13 | T2502455 Fall Detection Switch | Fall Detection Switch | 1 | $84.58 | Available to order | 1 |
| 14 | T3330390 Screw, H/Hd, M4 x 25, Slv, Enc | Screw, H/Hd, M4 x 25, Slv, Enc | 2 | $2.74 | Available to order | 2 |
| 15 | T2507727 Relay, Normally Open | Relay, Normally Open | 4 | $20.12 | Available to order | 4 |
| 16 | T2507728 Relay, Changeover | Relay, Changeover | 2 | $18.50 | Available to order | 2 |
| 17 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 18 | T2501772 Moulding, Starter Cable Guide | Moulding, Starter Cable Guide | 1 | $15.95 | Available to order | 1 |
| 19 | T2502881 Bracket, Unfused Solenoid, Moulding | Bracket, Unfused Solenoid, Moulding | 1 | $8.93 | Available to order | 1 |
| 20 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 1 | $1.51 | Available to order | 1 |
| 21 | T2501775 Moulding, Bracket, Connectors, Headstock | Moulding, Bracket, Connectors, Headstock | 1 | $10.28 | Available to order | 1 |
| 22 | T2501779 Moulding, Headstock Tidy | Moulding, Headstock Tidy | 1 | $10.81 | Available to order | 1 |
| 23 | T2501277 Bracket, Fusebox | Bracket, Fusebox | 1 | $65.62 | Out of Stock | Notify Me |
| 24 | T1290354 Moulding, Coils Bracket | Moulding, Coils Bracket | 1 | $11.41 | Available to order | 1 |
| 25 | T3555025 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 5 | $1.72 | Available to order | 5 |
| 26 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 5 | $5.30 | Available to order | 5 |
| 27 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 2 | $5.67 | Available to order | 2 |
| 28 | T3331260 Screw, Thread Forming, 5 x 20 | Screw, Thread Forming, 5 x 20 | 3 | $10.34 | Available to order | 3 |
| 30 | T3701094 P Clip, Dia 4.4, Black | P Clip, Dia 4.4, Black | 1 | $3.24 | Backorder — Mid September 2026 | 1 |
| 31 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 4 | $5.24 | Available to order | 4 |
| 32 | T9820091 Harness, Multifunction Lamp | Harness, Multifunction Lamp | 2 | $57.03 | Available to order | 2 |
| 33 | T3700182 Clip, Omega, 18mm x 14mm | Clip, Omega, 18mm x 14mm | 2 | $4.12 | Available to order | 2 |
| 34 | T2501828 Foam Pad, ECU | Foam Pad, ECU | 1 | $10.44 | Available to order | 1 |
| 35 | T3700216 Clip, Wire, Saddle | Clip, Wire, Saddle | 1 | $4.12 | Available to order | 1 |
| 36 | T2503076 Wire Guide | Wire Guide | 1 | $5.60 | Available to order | 1 |
| 37 | T2501777 ECM Bracket | ECM Bracket | 1 | $20.99 | Available to order | 1 |
| 38 | T2501317 Bracket, Purge Valve | Bracket, Purge Valve | 1 | $19.47 | Out of Stock | Notify Me |
| 39 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 3 | $4.92 | Available to order | 3 |
| 40 | T2506520 Cover, Earth Lead | Cover, Earth Lead | 1 | $10.28 | Available to order | 1 |
| 41 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 42 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 1 | $0.97 | Out of Stock | Notify Me |
| 43 | T2501331 Moulding, Harness, Spine | Moulding, Harness, Spine | 1 | $11.41 | Backorder — Late September 2026 | 1 |
| 44 | T2503436 Auxiliary Fly Lead, Japan | Auxiliary Fly Lead, Japan JP Only | 1 | $25.34 | Available to order | 1 |
| 45 | T2501887 Battery Spacer, Moulding | Battery Spacer, Moulding | 1 | $8.11 | Out of Stock | Notify Me |
| 46 | T3700190 Clip, Rear Brake Hose | Clip, Rear Brake Hose | 1 | $3.04 | Available to order | 1 |
| 47 | T2501419 USB Charger, 5V | USB Charger, 5V | 1 | $40.59 | Available to order | 1 |
| 48 | T2505583 Battery, 12V, 8,6AH, FCB | Battery, 12V, 8,6AH, FCB N/A to EF/ER/GR Markets | 1 | $223.03 | Available to order | 1 |
| 48 | T2506213 Kit, Battery, YTZ10S | Kit, Battery, YTZ10S EF/ER/GR Markets Only | 1 | $223.03 | Out of Stock | Notify Me |
| 49 | T2501756 Battery strap | Battery strap | 1 | $9.41 | Available to order | 1 |
| 50 | T3701103 Clip, Twin, 3.9-7 | Clip, Twin, 3.9-7 | 1 | $3.07 | Backorder — Mid September 2026 | 1 |
| 51 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
| 52 | T2506075 Cover, Relay Moulding | Cover, Relay Moulding | 1 | $7.62 | Out of Stock | Notify Me |
