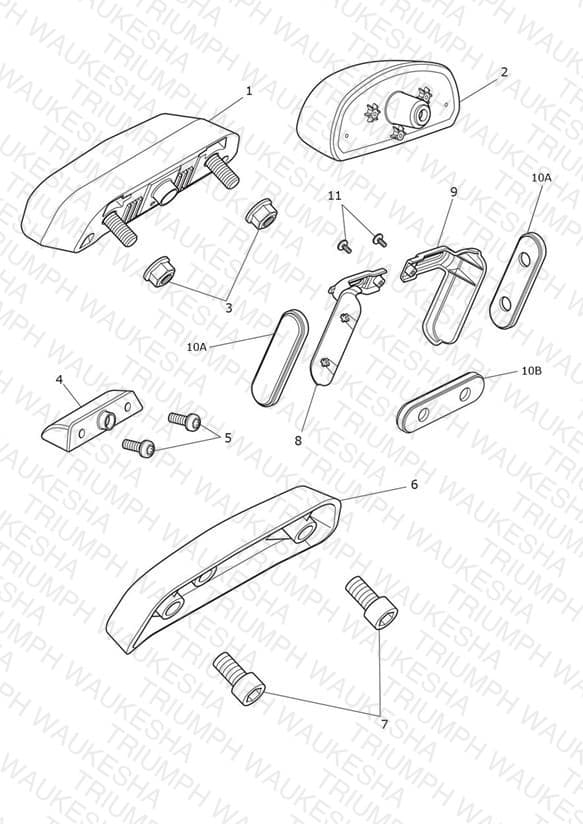

Rear Light & Reflectors
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2701236 Rear Light, LED | Rear Light, LED All Except US & CA | 1 | $433.90 | Available to order | 1 |
| 2 | T2702230 Rear Light Assy, LED | Rear Light Assy, LED CA Only | 1 | $441.72 | Available to order | 1 |
| 3 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 All Except US | 2 | $0.67 | Available to order | 2 |
| 4 | T9830106 LED Light, Reg Plate, Alt | LED Light, Reg Plate, Alt | 1 | $38.93 | Available to order | 1 |
| 5 | T3330392 Screw, But/Hd, M4 x 5, S/S | Screw, But/Hd, M4 x 5, S/S | 2 | $4.45 | Available to order | 2 |
| 6 | T9702550 Blanking Plate, Rear Light | Blanking Plate, Rear Light US Only | 1 | $45.62 | Available to order | 1 |
| 7 | T3050348 Screw, Cap/Hd, M6 x 12, Enc, Slv | Screw, Cap/Hd, M6 x 12, Enc, Slv US Only | 2 | $5.14 | Available to order | 2 |
| 8 | T2702025 Bracket, Side Reflector, RH | Bracket, Side Reflector, RH All Except JP | 1 | $30.70 | Available to order | 1 |
| 9 | T2702026 Bracket, Side Reflector, LH | Bracket, Side Reflector, LH All Except JP | 1 | $30.70 | Available to order | 1 |
| 10a | T2700443 Reflector, Oval, Red | Reflector, Oval, Red All Except JP | 2 | $6.14 | Available to order | 2 |
| 11 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT All Except JP | 2 | $0.75 | Available to order | 2 |
