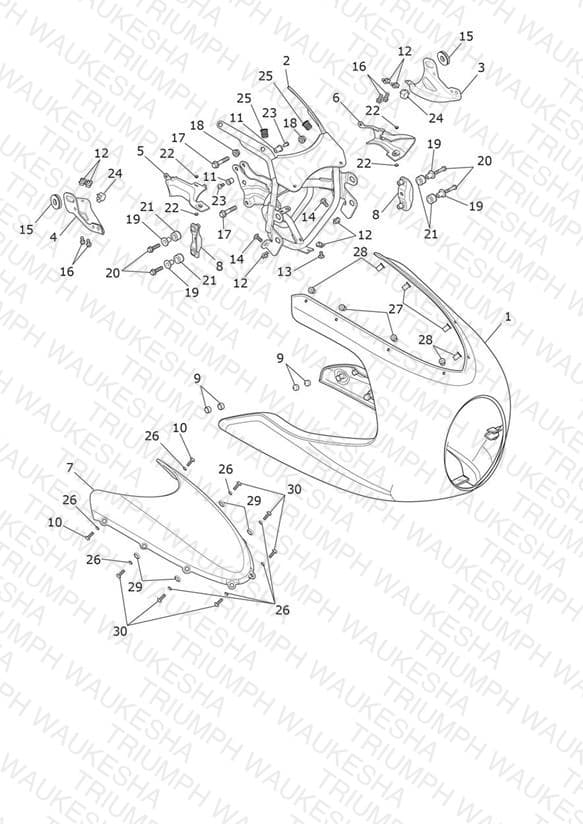

Cockpit
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2318503-PI Cockpit Fairing | Cockpit Fairing | 1 | $1771.65 | Available to order | 1 |
| 2 | T2307173 Subframe, Cockpit, Anodised | Subframe, Cockpit, Anodised | 1 | $535.60 | Available to order | 1 |
| 3 | T9700484 Indicator Bracket, LH | Indicator Bracket, LH | 1 | $22.94 | Available to order | 1 |
| 4 | T9700483 Indicator Bracket, RH | Indicator Bracket, RH | 1 | $22.94 | Out of Stock | Notify Me |
| 5 | T2310063 Conduit, Cockpit Fairing, RH | Conduit, Cockpit Fairing, RH | 1 | $4.77 | Available to order | 1 |
| 6 | T2305344 Conduit, Cockpit Fairing, LH | Conduit, Cockpit Fairing, LH | 1 | $3.34 | Available to order | 1 |
| 7 | T2310984 Screen, Fairing, Tinted, C | Screen, Fairing, Tinted, C US | 1 | $155.74 | Available to order | 1 |
| 7 | T2308466 Screen, Fairing, Tinted, Non-Coated | Screen, Fairing, Tinted, Non-Coated All Except US | 1 | $85.52 | Backorder — Late August 2026 | 1 |
| 8 | T2304539 Bracket, Headlight Isolation | Bracket, Headlight Isolation | 2 | $11.12 | Available to order | 2 |
| 9 | T3450108 Stand Off Rubber | Stand Off Rubber | 4 | $2.55 | Available to order | 4 |
| 10 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv | 2 | $5.69 | Available to order | 2 |
| 11 | T3350050 Wellnut, M5 | Wellnut, M5 | 2 | $6.65 | Available to order | 2 |
| 12 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 7 | $3.39 | Available to order | 7 |
| 13 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 1 | $5.02 | Available to order | 1 |
| 14 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $6.73 | Available to order | 2 |
| 15 | T3020140 Rubber Grommet | Rubber Grommet | 2 | $2.85 | Available to order | 2 |
| 16 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 4 | $3.24 | Available to order | 4 |
| 17 | T3200601 Bolt, HHF, M8 x 40, Slv | Bolt, HHF, M8 x 40, Slv | 2 | $3.04 | Available to order | 2 |
| 18 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.45 | Available to order | 2 |
| 19 | T3010701 Flanged Sleeve, 6.4 x 10 x 14.5 | Flanged Sleeve, 6.4 x 10 x 14.5 | 4 | $5.30 | Available to order | 4 |
| 20 | T3205070 Bolt, HHF, Lghtd, M6 x 30, Slv | Bolt, HHF, Lghtd, M6 x 30, Slv | 4 | $2.37 | Available to order | 4 |
| 21 | T3020606 Grommet, Dia 15 x 3, Panel | Grommet, Dia 15 x 3, Panel | 4 | $4.01 | Available to order | 4 |
| 22 | T3700266 Clip, Ratchet, Rivet, 5.9-7.5 | Clip, Ratchet, Rivet, 5.9-7.5 | 4 | $2.00 | Available to order | 4 |
| 23 | T3332655 Screw, But/HD, M5 x 12. Slv | Screw, But/HD, M5 x 12. Slv | 2 | $0.89 | Unavailable | View Details |
| 24 | T3700182 Clip, Omega, 18mm x 14mm | Clip, Omega, 18mm x 14mm | 2 | $4.12 | Available to order | 2 |
| 25 | T3450092 Insert, Round, Plastic | Insert, Round, Plastic | 2 | $2.85 | Available to order | 2 |
| 26 | T3550294 Washer, M5, Nylon | Washer, M5, Nylon | 8 | $1.16 | Available to order | 8 |
| 27 | T3350805 Wellnut, M5 x 16 Shank, L Head | Wellnut, M5 x 16 Shank, L Head | 4 | $6.65 | Available to order | 4 |
| 28 | T3350822 Wellnut, M5 x 16 Shank, S Head | Wellnut, M5 x 16 Shank, S Head | 4 | $6.65 | Available to order | 4 |
| 29 | T3550901 Washer, M5, Rubber, Self Adhesive | Washer, M5, Rubber, Self Adhesive | 4 | $7.14 | Available to order | 4 |
| 30 | T3330819 Screw, But/Hd, M5 x 25, Slv | Screw, But/Hd, M5 x 25, Slv | 6 | $6.65 | Available to order | 6 |
