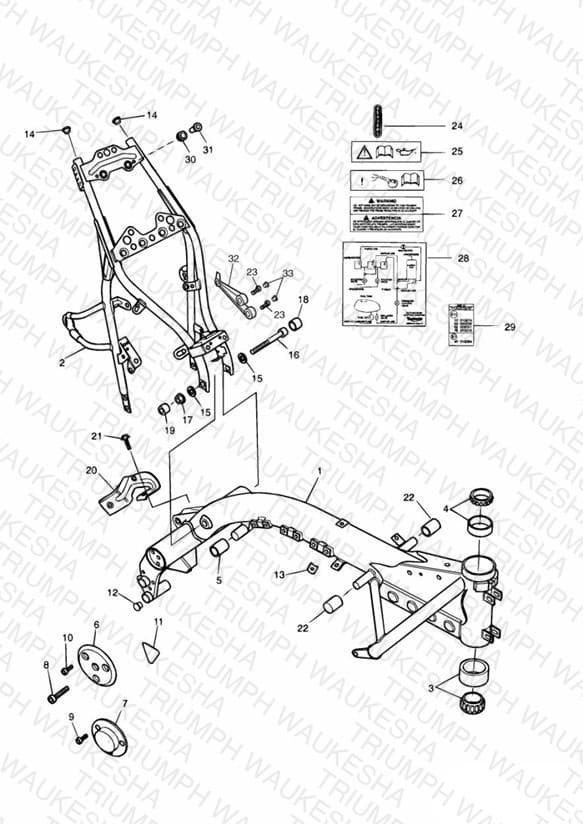

Main Frame & Fittings
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2079006 Frame kit | Frame kit » 71698 Not US,TW,SG or South America | 1 | $2246.82 | Obsolete | View Details |
| 1 | T2079007 Frame kit | Frame kit » 71698 US 49 States, SG & South America | 1 | $2144.50 | Obsolete | View Details |
| 1 | T2079008 Frame kit | Frame kit » 71698 US CAL & TW | 1 | $2260.43 | Obsolete | View Details |
| 1 | T2079004 Frame kit | Frame kit » 71698 Canada | 1 | $2144.50 | Obsolete | View Details |
| 1 | T2079020 Frame assembly | Frame assembly 71699 » Not US,TW,SG or South America | 1 | $2144.50 | Obsolete | View Details |
| 1 | T2079025 Frame assembly | Frame assembly 71699 » US 49 States, SG & South America | 1 | $2144.50 | Obsolete | View Details |
| 1 | T2079030 Frame assembly | Frame assembly 71699 » US CAL & TW | 1 | $2144.50 | Obsolete | View Details |
| 1 | T2079035 Frame assembly | Frame assembly 71699 » Canada | 1 | $2144.50 | Obsolete | View Details |
| 2 | T2070951 Rear frame | Rear frame » 71698 Also order item 28 | 1 | $739.78 | Obsolete | View Details |
| 2 | T2070954 Rear frame | Rear frame 71699 » » 89736 Also order item 28 | 1 | $739.78 | Obsolete | View Details |
| 2 | T2072912 Rear frame | Rear frame 89737 » Also order item 28 | 1 | $713.97 | Obsolete | View Details |
| 3 | T3800031 Bearing, 30x55x17, Taper Roll | Bearing, 30x55x17, Taper Roll Lower | 1 | $32.55 | Available to order | 1 |
| 4 | T3800055 Bearing | Bearing Upper | 1 | $53.11 | Backorder — Mid October 2026 | 1 |
| 5 | 2078691-T0301 Sleeve | Sleeve | 1 | $11.18 | Obsolete | View Details |
| 6 | T2071050 Finisher | Finisher » 71698 Upper | 2 | $17.55 | Obsolete | View Details |
| 6 | 2071021-T0301 Finisher | Finisher 71699 » Upper | 2 | $18.42 | Obsolete | View Details |
| 7 | T2071051 Finisher | Finisher » 71698 Lower | 2 | $18.42 | Obsolete | View Details |
| 7 | T2071031 Finisher | Finisher 71699 » Lower | 2 | $17.11 | Obsolete | View Details |
| 8 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv M6 x 20mm | 2 | $1.61 | Available to order | 2 |
| 9 | 3050038-T0301 Capscrew | Capscrew M6 x 10mm | 6 | $0.30 | Obsolete | View Details |
| 10 | 3050039-T0301 Capscrew | Capscrew M6 x 8mm - PART NO LONGER AVAILABLE | 6 | $1.81 | Obsolete | View Details |
| 11 | T3900063 Badge | Badge | 1 | $8.14 | Obsolete | View Details |
| 12 | 3450190-T0301 End cap | End cap | 2 | $1.10 | Obsolete | View Details |
| 13 | T3351002 Nut, Captive, U-Type, M5, Slv | Nut, Captive, U-Type, M5, Slv Ignition coil to spine | 6 | $2.53 | Available to order | 6 |
| 14 | T3450060 Cap | Cap | 2 | $1.50 | Available to order | 2 |
| 15 | T3550309 Washer | Washer | 2 | $15.53 | Obsolete | View Details |
| 16 | 3330251-T0301 Screw, Torx, M12 x 119 | Screw, Torx, M12 x 119 M12 x 119mm | 1 | $7.06 | Unavailable | View Details |
| 17 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 1 | $6.46 | Available to order | 1 |
| 18 | T2201208 Bush | Bush PART NO LONGER AVAILABLE | 1 | $2.74 | Obsolete | View Details |
| 19 | T2201207 Bush | Bush RH | 1 | $2.74 | Obsolete | View Details |
| 20 | T2070711 Support bracket | Support bracket | 1 | $7.15 | Obsolete | View Details |
| 21 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 2 | $1.84 | Available to order | 2 |
| 22 | T2400603 Bush, Tank Mount | Bush, Tank Mount | 2 | $2.79 | Available to order | 2 |
| 23 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv » 89736 | 2 | $7.90 | Available to order | 2 |
| 24 | T3900001 Gear position indicator label | Gear position indicator label | 1 | $6.06 | Out of Stock | Notify Me |
| 25 | T3900302 Label, Oil & Filter | Label, Oil & Filter Oil filter | 1 | $6.06 | Available to order | 1 |
| 26 | T3900026 Label | Label Air intake | 1 | $0.90 | Obsolete | View Details |
| 27 | T3900169 Label, Frame modification | Label, Frame modification Frame modifications US & TW | 1 | $4.84 | Available to order | 1 |
| 28 | T3930085 Label | Label US CAL & TW Carb layout | 1 | $4.81 | Obsolete | View Details |
| 29 | T3900024 Label | Label ECE DE | 1 | $10.89 | Obsolete | View Details |
| 30 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $3.04 | Available to order | 4 |
| 31 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $6.15 | Available to order | 4 |
| 32 | T2080323 Hanger bracket | Hanger bracket » 89736 LH | 1 | $64.41 | Available to order | 1 |
| 33 | T3450195 Plug, M8, Black | Plug, M8, Black » 89736 M5 Black | 2 | $0.81 | Available to order | 2 |
