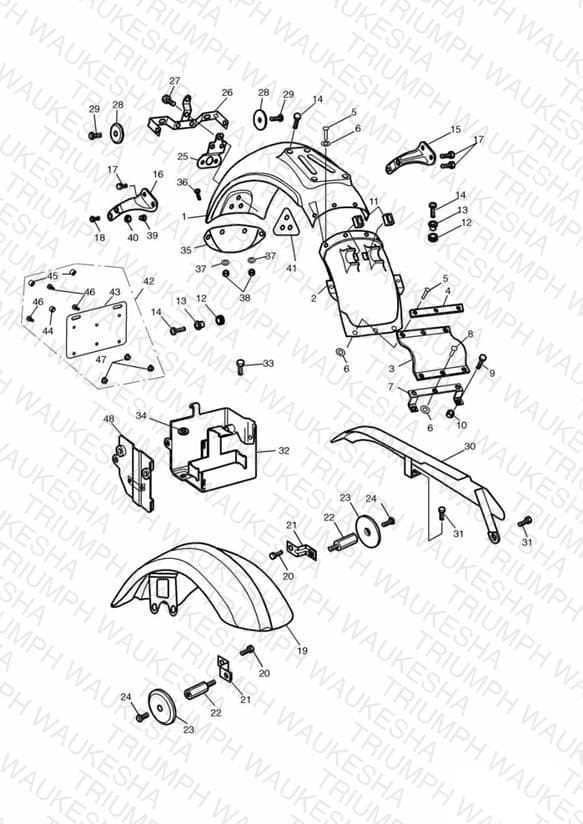

Mudguards/Chainguard/Battery Box
Parts (58)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2300641-FA Rear mudguard | Rear mudguard Racing Yellow | 1 | $301.52 | Obsolete | View Details |
| 1 | T2300641-CM Rear mudguard | Rear mudguard Tornado Red | 1 | $287.16 | Obsolete | View Details |
| 1 | T2300641-NF Rear mudguard | Rear mudguard Opal White | 1 | $301.52 | Obsolete | View Details |
| 1 | T2300641-EE Rear mudguard | Rear mudguard » 186150 Tangerine | 1 | $301.52 | Obsolete | View Details |
| 1 | T2300641-PG Rear mudguard | Rear mudguard 186151 » Jet Black | 1 | $287.16 | Obsolete | View Details |
| 2 | T2300720 Cover | Cover | 1 | $38.96 | Available to order | 1 |
| 3 | T2300359 Mudguard flap | Mudguard flap | 1 | $31.64 | Backorder — Late August 2026 | 1 |
| 4 | T2300330 Clamp plate | Clamp plate | 1 | $4.36 | Available to order | 1 |
| 5 | T2307377 Pop Rivet, Dia 4.8 | Pop Rivet, Dia 4.8 | 7 | $1.13 | Available to order | 7 |
| 6 | T3550135 Washer | Washer | 10 | $0.79 | Obsolete | View Details |
| 7 | 2300310-T0301 Bracket | Bracket | 1 | $3.77 | Obsolete | View Details |
| 8 | T3330061 Rivet | Rivet | 3 | $3.77 | Available to order | 3 |
| 9 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 2 | $1.62 | Available to order | 2 |
| 10 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.45 | Available to order | 2 |
| 11 | T3020380 Grommet | Grommet PART NO LONGER AVAILABLE | 2 | $4.04 | Obsolete | View Details |
| 12 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 3 | $1.91 | Available to order | 3 |
| 13 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 3 | $5.78 | Available to order | 3 |
| 14 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 15 | T2700532 Bracket lh | Bracket lh Chrome | 1 | $195.81 | Available to order | 1 |
| 16 | T2700244 Bracket rh | Bracket rh Chrome | 1 | $148.22 | Obsolete | View Details |
| 17 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv » 107984 | 4 | $1.62 | Available to order | 4 |
| 18 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.39 | Available to order | 2 |
| 19 | T2300643-FA Front mudguard | Front mudguard Racing Yellow | 1 | $239.63 | Obsolete | View Details |
| 19 | T2300643-CM Front mudguard | Front mudguard Tornado Red | 1 | $239.63 | Obsolete | View Details |
| 19 | T2300643-NF Front mudguard | Front mudguard Opal White | 1 | $239.63 | Obsolete | View Details |
| 19 | T2300643-EE Front mudguard | Front mudguard » 186150 Tangerine | 1 | $239.63 | Obsolete | View Details |
| 19 | T2300643-PG Front mudguard | Front mudguard 186151 » Jet Black | 1 | $214.41 | Obsolete | View Details |
| 20 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 4 | $2.74 | Available to order | 4 |
| 21 | T2070854 Bracket, Hose, Front | Bracket, Hose, Front US,TW,SG,CA | 2 | $2.44 | Obsolete | View Details |
| 22 | T2080538 Extension piece | Extension piece US,TW,SG,CA | 2 | $5.45 | Obsolete | View Details |
| 23 | T2700283 Amber reflector | Amber reflector US,TW,SG,CA | 2 | $6.45 | Available to order | 2 |
| 24 | T3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv | Screw, Pan/Hd, Tx, M5 x 20, Slv | 2 | $2.63 | Available to order | 2 |
| 25 | T2300630 Bracket | Bracket | 1 | $35.84 | Available to order | 1 |
| 26 | T2300269 Bracket | Bracket Not US,TW,SG or CA | 1 | $9.72 | Obsolete | View Details |
| 26 | T2300250 Bracket number plate | Bracket number plate US,TW,SG,CA | 1 | $24.36 | Obsolete | View Details |
| 27 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv Bracket to mudguard | 3 | $3.50 | Available to order | 3 |
| 28 | T2700284 Reflex Reflector | Reflex Reflector US,TW,SG,CA | 2 | $3.33 | Available to order | 2 |
| 29 | T3330565 Screw | Screw | 2 | $4.12 | Available to order | 2 |
| 30 | T2058014 Chainguard | Chainguard » 71698 Stainless | 1 | $74.00 | Obsolete | View Details |
| 30 | T2058018 Chainguard | Chainguard 71699 » Black | 1 | $64.08 | Obsolete | View Details |
| 32 | T3990004 Battery box assembly | Battery box assembly » 161317 | 1 | $29.51 | Obsolete | View Details |
| 32 | T2500092 Battery box assembly | Battery box assembly 161318 » | 1 | $29.51 | Obsolete | View Details |
| 33 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv M6 x 16mm | 2 | $0.97 | Available to order | 2 |
| 34 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.00 | Available to order | 2 |
| 35 | T2300338 Extension | Extension SE, AR, GR, HK, PT, JP. | 1 | $94.78 | Obsolete | View Details |
| 36 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv SE, AR, GR, HK, PT, JP. | 2 | $5.69 | Available to order | 2 |
| 37 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 SE, AR, GR, HK, PT, JP. | 2 | $0.97 | Available to order | 2 |
| 38 | T3350041 Nut | Nut SE, AR, GR, HK, PT, JP. | 2 | $0.79 | Obsolete | View Details |
| 39 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 2 | $4.12 | Available to order | 2 |
| 40 | T3020012 Grommet | Grommet * PART NO LONGER AVAILABLE * | 2 | $3.06 | Obsolete | View Details |
| 41 | T2300422 Support plate | Support plate | 1 | $8.82 | Obsolete | View Details |
| 42 | T2700372 Mounting kit | Mounting kit 168067 » JP | 1 | $36.33 | Out of Stock | Notify Me |
| 43 | T2700358 Bracket, Reg Plate | Bracket, Reg Plate 168067 » JP | 1 | $13.18 | Available to order | 1 |
| 44 | T3021161 Rubber Foot, Dia 14.22 x 7.1 | Rubber Foot, Dia 14.22 x 7.1 168067 » JP | 1 | $2.17 | Available to order | 1 |
| 45 | T3000031 Spacer | Spacer 168067 » JP | 2 | $5.78 | Out of Stock | Notify Me |
| 46 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv 168067 » JP | 3 | $1.72 | Available to order | 3 |
| 47 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc 168067 » M6 JP Black | 3 | $1.13 | Available to order | 3 |
| 48 | T2500071 Door | Door 161318 » | 1 | $28.96 | Available to order | 1 |
