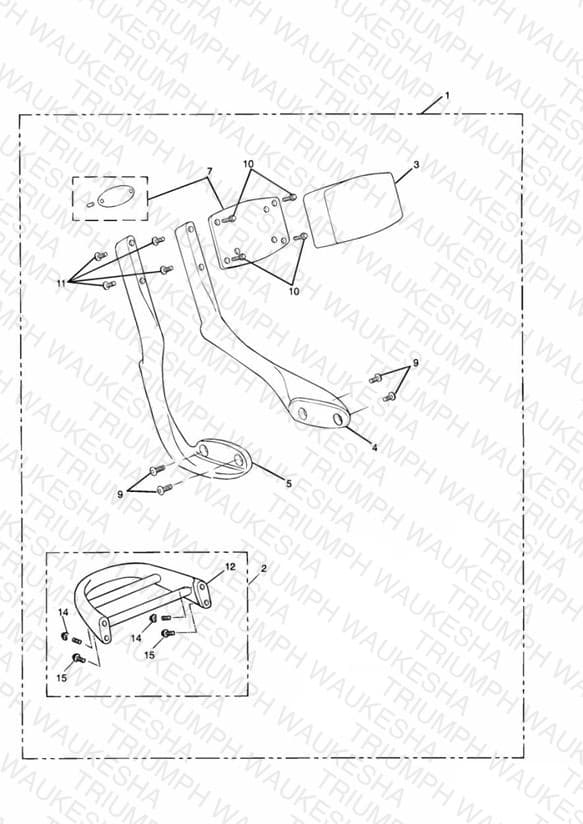

Passenger Backrest & Rack - Chromium & Polished Finish
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9950055 Passenger Backrest and rack | Passenger Backrest and rack Chromium Finish | 1 | $445.00 | Out of Stock | Notify Me |
| 1 | A9950050 Passenger Backrest and rack | Passenger Backrest and rack Polished Finish | 1 | $370.00 | Obsolete | View Details |
| 2 | A9730513 Kit luggage rack | Kit luggage rack Chromium Finish | 1 | $199.00 | Unavailable | 1 |
| 2 | A9700006 Kit luggage rack | Kit luggage rack Polished Finish | 1 | $168.00 | Obsolete | View Details |
| 3 | A2300348 Backrest pad Replaced by T2300348 — Passenger Backrest Pad | Backrest pad | 1 | $97.00 | Unavailable | View Details |
| 4 | A9730514 Upright | Upright LH, Chromium Finish | 1 | $147.00 | Obsolete | View Details |
| 4 | A9750001 Upright | Upright LH, Polished Finish | 1 | $33.48 | Obsolete | View Details |
| 5 | A9730515 Upright | Upright RH, Chromium Finish | 1 | $106.00 | Obsolete | View Details |
| 5 | A9750002 Upright | Upright RH, Polished Finish | 1 | $116.00 | Obsolete | View Details |
| 7 | A9750003 Plate | Plate | 1 | $132.00 | Obsolete | View Details |
| 9 | A9910031 Bolt | Bolt | 4 | $5.45 | Obsolete | View Details |
| 10 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 4 | $3.50 | Available to order | 4 |
| 11 | T3330550 Screw M6 x 16, S/S, Large HD | Screw M6 x 16, S/S, Large HD * PART NO LONGER AVAILABLE * | 4 | $3.23 | Obsolete | View Details |
| 12 | A9750039 Luggage rack | Luggage rack | 1 | — | Unavailable | View Details |
| 14 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 15 | T3203040 Bolt, RHHF Domed, M6 x 40 | Bolt, RHHF Domed, M6 x 40 | 2 | $1.72 | Available to order | 2 |
