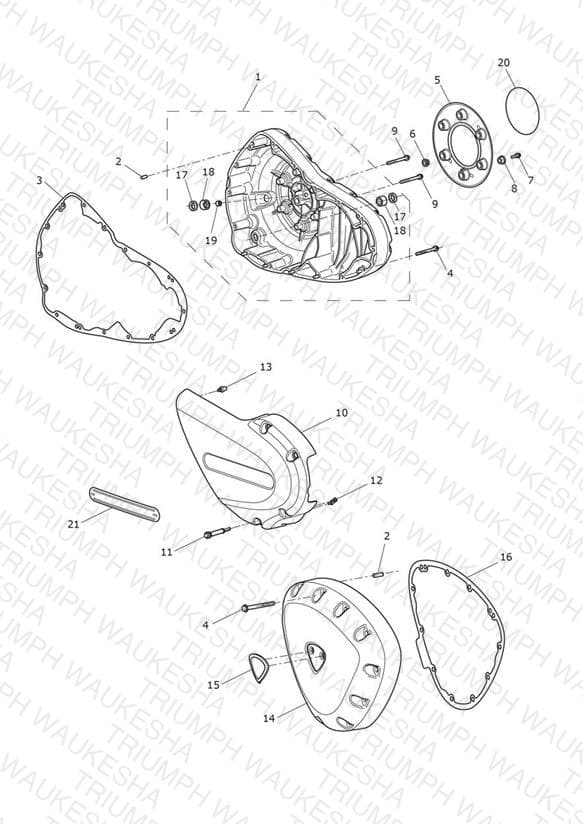

Engine Covers - Night Storm
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1260669 Cover, Clutch, Assy, Black | Cover, Clutch, Assy, Black | 1 | $369.67 | Available to order | 1 |
| 2 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 6 | $1.13 | Available to order | 6 |
| 3 | T1260660 Gasket, Clutch Cover | Gasket, Clutch Cover | 1 | $15.03 | Available to order | 1 |
| 4 | T3205074 Bolt, HHF, Lghtd, M6 x 55, Slv | Bolt, HHF, Lghtd, M6 x 55, Slv | 26 | $3.39 | Available to order | 26 |
| 5 | T1260739 Cover, Embellisher, Clutch | Cover, Embellisher, Clutch | 1 | $106.47 | Available to order | 1 |
| 6 | T3590159 Grommet, Rubber, ID8 | Grommet, Rubber, ID8 | 6 | $1.51 | Available to order | 6 |
| 7 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 6 | $3.50 | Available to order | 6 |
| 8 | T3010065 Flanged Sleeve, M6 x 5.5 LG | Flanged Sleeve, M6 x 5.5 LG | 6 | $4.64 | Available to order | 6 |
| 9 | T3205075 Bolt, HHF, Lghtd, M6 x 65, Slv | Bolt, HHF, Lghtd, M6 x 65, Slv | 2 | $3.77 | Available to order | 2 |
| 10 | T1268900 Cover, Pulley, Black | Cover, Pulley, Black | 1 | $193.93 | Out of Stock | Notify Me |
| 11 | T3050199 Bolt, RHHF, Shld, M6 x 14, Slv | Bolt, RHHF, Shld, M6 x 14, Slv > 472779 | 4 | $4.55 | Available to order | 4 |
| 12 | T3590161 Grommet, Plug, Twin | Grommet, Plug, Twin | 4 | $1.91 | Available to order | 4 |
| 13 | T3590162 Grommet, Rubber, Conical | Grommet, Rubber, Conical | 1 | $1.33 | Obsolete | View Details |
| 14 | T1260673 Cover, Alternator, Black | Cover, Alternator, Black | 1 | $226.22 | Available to order | 1 |
| 15 | T3950111 Triumph Triangular Badge | Triumph Triangular Badge | 1 | $15.38 | Available to order | 1 |
| 16 | T1260661 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $15.06 | Available to order | 1 |
| 17 | T3600088 Seal, Oil, 14 x 22 x 4.5 | Seal, Oil, 14 x 22 x 4.5 | 2 | $6.39 | Available to order | 2 |
| 18 | T3800001 Bearing, Needle, 20 x 14 x 12 | Bearing, Needle, 20 x 14 x 12 | 2 | $8.60 | Available to order | 2 |
| 19 | T3800156 Bearing, Needle Roller, 7 x 11 x 9 | Bearing, Needle Roller, 7 x 11 x 9 | 1 | $33.23 | Available to order | 1 |
| 20 | T1260616 Badge, Clutch Cover | Badge, Clutch Cover | 1 | $50.37 | Available to order | 1 |
| 21 | T1261988 Badge, Pulley Cover, Night Storm | Badge, Pulley Cover, Night Storm | 1 | $50.37 | Out of Stock | Notify Me |
