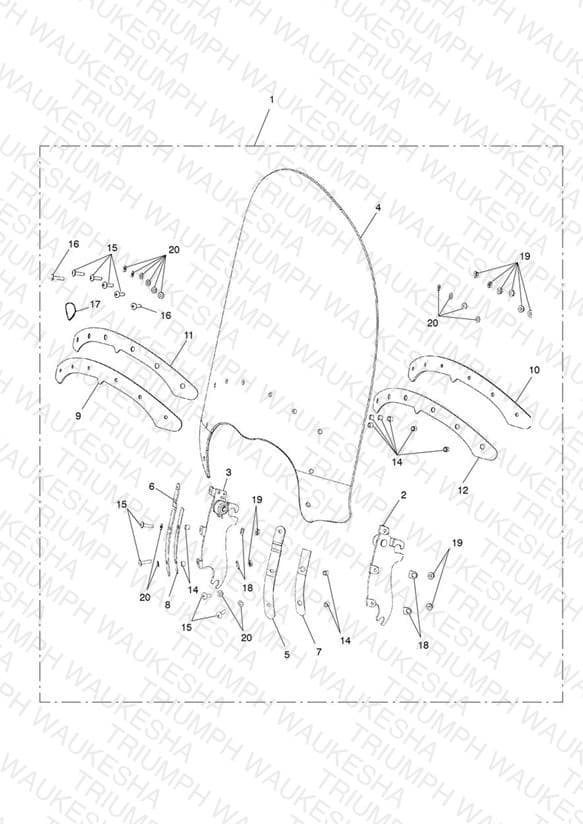

Q/R Roadster Screen Kit
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9700341 Q/R Roadster Screen Kit | Q/R Roadster Screen Kit Requires fitting kit: A9700366 | 1 | $175.00 | Obsolete | View Details |
| 2 | A9700342 Bracket, Vert LH, Assembled | Bracket, Vert LH, Assembled | 1 | $76.14 | Available to order | 1 |
| 3 | A9700343 Bracket, Vert RH, Assembled | Bracket, Vert RH, Assembled | 1 | $76.14 | Available to order | 1 |
| 4 | A9700344 Screen, Roadster, Formed | Screen, Roadster, Formed | 1 | $189.00 | Obsolete | View Details |
| 5 | A9700355 O/S Plate, Vert, LH, Chrome | O/S Plate, Vert, LH, Chrome | 1 | $20.35 | Obsolete | View Details |
| 6 | A9700356 O/S Plate, Vert, RH, Chrome | O/S Plate, Vert, RH, Chrome | 1 | $19.85 | Obsolete | View Details |
| 7 | A9700349 Gasket, O/S, Vert, LH | Gasket, O/S, Vert, LH | 1 | $5.00 | Obsolete | View Details |
| 8 | A9700350 Gasket, O/S, Vert, RH | Gasket, O/S, Vert, RH | 1 | $5.00 | Obsolete | View Details |
| 9 | A9700347 O/S, Plate, Hor, Chrome | O/S, Plate, Hor, Chrome | 1 | $69.00 | Obsolete | View Details |
| 10 | A9700348 I/S, Frame, Hor | I/S, Frame, Hor | 1 | $71.00 | Obsolete | View Details |
| 11 | A9700352 Gasket, O/S, Hor | Gasket, O/S, Hor | 1 | $8.45 | Obsolete | View Details |
| 12 | A9700351 Gasket, I/S, Hor | Gasket, I/S, Hor | 1 | $8.65 | Obsolete | View Details |
| 14 | A9700328 Collar, SS | Collar, SS | 10 | $2.85 | Obsolete | View Details |
| 15 | A9700336 CS, Truss, HS, M6 x 23, SS | CS, Truss, HS, M6 x 23, SS | 8 | $4.80 | Obsolete | View Details |
| 16 | A9700337 CS, Truss, HS, M6 x 27, SS | CS, Truss, HS, M6 x 27, SS | 2 | $2.70 | Obsolete | View Details |
| 17 | A9930127 Badge, 30mm, Pressed | Badge, 30mm, Pressed | 1 | $10.50 | Obsolete | View Details |
| 18 | A9700331 Gasket, IS, Tab | Gasket, IS, Tab | 4 | $6.15 | Obsolete | View Details |
| 19 | A9700338 Flanged Nut, M6, SS | Flanged Nut, M6, SS | 10 | $1.35 | Obsolete | View Details |
| 20 | T3550224 Washer, Nylon | Washer, Nylon | 14 | $2.85 | Available to order | 14 |
