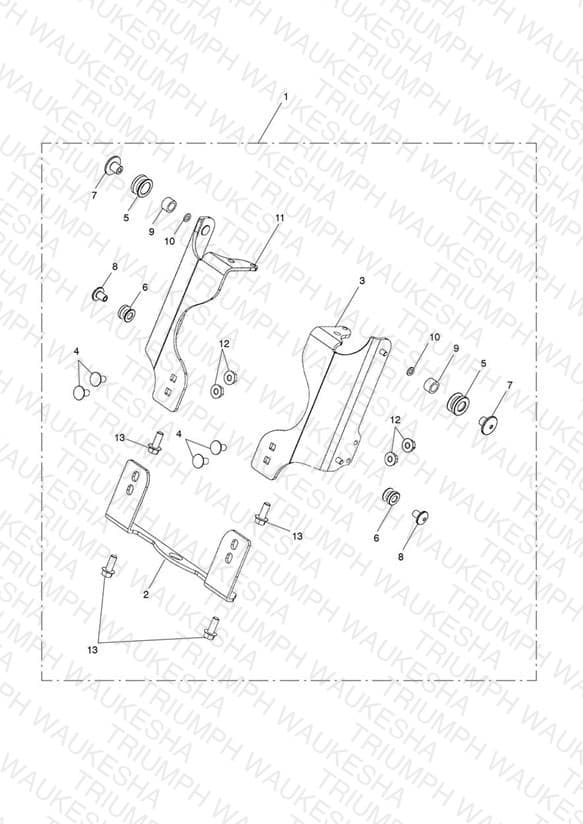

Screen Mounting Brackets Kit
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9700366 Brackets, Screen Mounting Kit | Brackets, Screen Mounting Kit | 1 | $77.38 | Obsolete | View Details |
| 2 | T2303482 Lower Mounting Bracket | Lower Mounting Bracket | 1 | $70.31 | Available to order | 1 |
| 3 | A9700359 Mount Bracket, Upper LH | Mount Bracket, Upper LH | 1 | $58.30 | Obsolete | View Details |
| 4 | A9750643 Screw, Carriage, 5/16 - 18 x 5/8 | Screw, Carriage, 5/16 - 18 x 5/8 | 4 | $2.88 | Out of Stock | Notify Me |
| 5 | T2303489 Spool, Upper | Spool, Upper | 2 | $11.54 | Available to order | 2 |
| 6 | T2303763 Spool, Lower, QS4 | Spool, Lower, QS4 * PART NO LONGER AVAILABLE * | 2 | $12.71 | Obsolete | View Details |
| 7 | T2303488 Nut, Upper, HD, S-Blade | Nut, Upper, HD, S-Blade | 2 | $3.93 | Obsolete | View Details |
| 8 | T2303487 Nut, Lower, QS4, Polished | Nut, Lower, QS4, Polished | 2 | $6.10 | Obsolete | View Details |
| 9 | T2303761 Cushion, Urethane, HD SB Spool | Cushion, Urethane, HD SB Spool | 2 | $10.66 | Available to order | 2 |
| 10 | T2303762 Washer, Flat, M6, Brass | Washer, Flat, M6, Brass | 2 | $2.37 | Available to order | 2 |
| 11 | A9700358 Mount Bracket, Upper, RH | Mount Bracket, Upper, RH | 1 | $45.90 | Out of Stock | Notify Me |
| 12 | A9750645 Nut, Whiz, 5/16-8, Zinc Plated | Nut, Whiz, 5/16-8, Zinc Plated | 4 | $6.33 | Available to order | 4 |
| 13 | A9750646 Screw, Hex Flg, M8 x 20, SS | Screw, Hex Flg, M8 x 20, SS | 4 | $5.18 | Available to order | 4 |
