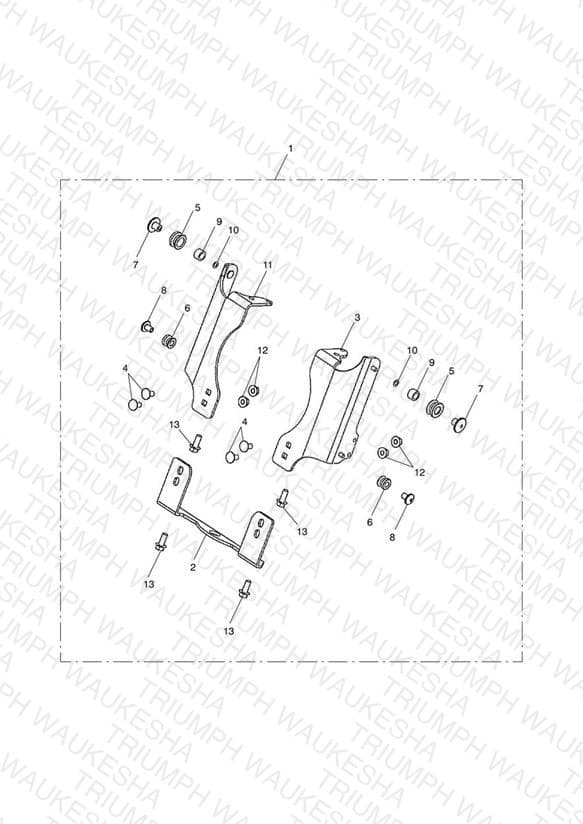

Screen Mounting Brackets
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9750510 Hardware, Screen Mounting | Hardware, Screen Mounting | 1 | $49.00 | Obsolete | View Details |
| 2 | T2303482 Lower Mounting Bracket | Lower Mounting Bracket | 1 | $71.63 | Available to order | 1 |
| 3 | T2303484 Mounting Bracket, Upper, LT | Mounting Bracket, Upper, LT | 1 | $81.00 | Obsolete | View Details |
| 4 | A9750643 Screw, Carriage, 5/16 - 18 x 5/8 | Screw, Carriage, 5/16 - 18 x 5/8 | 4 | $2.70 | Out of Stock | Notify Me |
| 5 | T2303489 Spool, Upper | Spool, Upper | 2 | $11.12 | Available to order | 2 |
| 6 | T2303763 Spool, Lower, QS4 | Spool, Lower, QS4 * PART NO LONGER AVAILABLE * | 2 | $11.35 | Obsolete | View Details |
| 7 | T2303488 Nut, Upper, HD, S-Blade | Nut, Upper, HD, S-Blade | 2 | $3.42 | Obsolete | View Details |
| 8 | T2303487 Nut, Lower, QS4, Polished | Nut, Lower, QS4, Polished | 2 | $5.30 | Obsolete | View Details |
| 9 | T2303761 Cushion, Urethane, HD SB Spool | Cushion, Urethane, HD SB Spool | 2 | $10.01 | Available to order | 2 |
| 10 | T2303762 Washer, Flat, M6, Brass | Washer, Flat, M6, Brass | 2 | $2.22 | Available to order | 2 |
| 11 | T2303483 Mtg Bracket, Upper RT | Mtg Bracket, Upper RT | 1 | $78.98 | Out of Stock | Notify Me |
| 12 | A9750645 Nut, Whiz, 5/16-8, Zinc Plated | Nut, Whiz, 5/16-8, Zinc Plated | 4 | $5.94 | Available to order | 4 |
| 13 | A9750646 Screw, Hex Flg, M8 x 20, SS | Screw, Hex Flg, M8 x 20, SS | 4 | $4.86 | Available to order | 4 |
