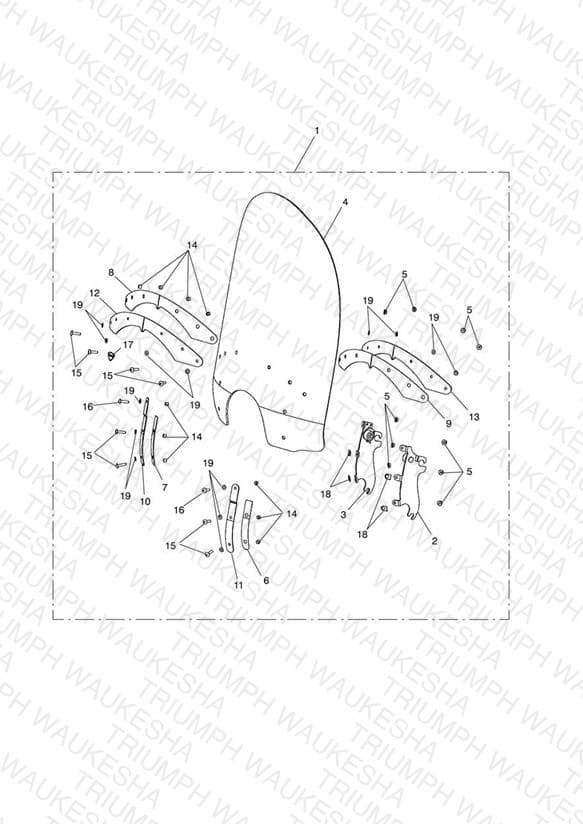

Screen, Roadster
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9700316 Screen, Roadster | Screen, Roadster | 1 | $114.00 | Obsolete | View Details |
| 2 | A9700320 Bracket, Verical, LH, Assembled | Bracket, Verical, LH, Assembled | 1 | $129.00 | Obsolete | View Details |
| 3 | A9700321 Bracket, Vertical, RH, Assembled | Bracket, Vertical, RH, Assembled | 1 | $129.00 | Obsolete | View Details |
| 4 | A9700322 Screen, Roadster, Formed | Screen, Roadster, Formed | 1 | $340.00 | Obsolete | View Details |
| 5 | A9700338 Flanged Nut, M6, SS | Flanged Nut, M6, SS | 10 | $1.35 | Obsolete | View Details |
| 6 | A9700323 Gasket, OS, Vertical, LH | Gasket, OS, Vertical, LH | 1 | $4.30 | Obsolete | View Details |
| 7 | A9700335 Gasket, OS, Vertical, RH | Gasket, OS, Vertical, RH | 1 | $2.70 | Obsolete | View Details |
| 8 | A9700324 Gasket, Outer, Horizontal | Gasket, Outer, Horizontal | 1 | $7.20 | Obsolete | View Details |
| 9 | A9700332 Gasket, Inside, Horizontal | Gasket, Inside, Horizontal | 1 | $7.20 | Obsolete | View Details |
| 10 | A9700325 O/S, Plate, Vertical, RH, Chrome | O/S, Plate, Vertical, RH, Chrome | 1 | $18.35 | Obsolete | View Details |
| 11 | A9700326 O/S, Plate, Vertical, LH, Chrome | O/S, Plate, Vertical, LH, Chrome | 1 | $38.00 | Obsolete | View Details |
| 12 | A9700327 O/S Plate, Horizontal, Chrome | O/S Plate, Horizontal, Chrome | 1 | $66.00 | Obsolete | View Details |
| 13 | A9700333 I/S, Frame, Horizontal | I/S, Frame, Horizontal | 1 | $71.00 | Obsolete | View Details |
| 14 | A9700328 Collar, SS | Collar, SS | 10 | $2.85 | Obsolete | View Details |
| 15 | A9700336 CS, Truss, HS, M6 x 23, SS | CS, Truss, HS, M6 x 23, SS | 8 | $4.80 | Obsolete | View Details |
| 16 | A9700337 CS, Truss, HS, M6 x 27, SS | CS, Truss, HS, M6 x 27, SS | 1 | $2.70 | Obsolete | View Details |
| 17 | A9930127 Badge, 30mm, Pressed | Badge, 30mm, Pressed | 1 | $10.50 | Obsolete | View Details |
| 18 | A9700331 Gasket, IS, Tab | Gasket, IS, Tab | 4 | $6.15 | Obsolete | View Details |
| 19 | T3550224 Washer, Nylon | Washer, Nylon | 14 | $2.85 | Available to order | 14 |
