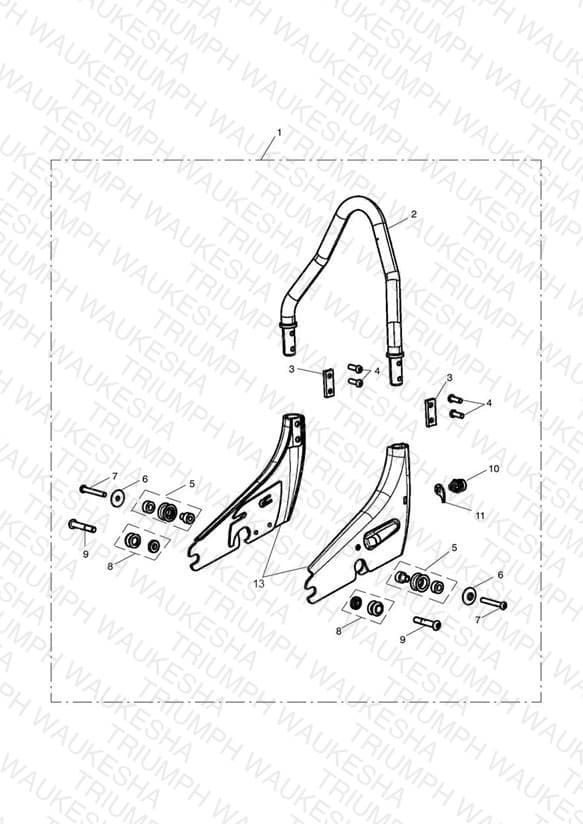

Passenger Backrest, QD
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9750516 Passenger Backrest, QD | Passenger Backrest, QD Requires Backrest Pad | 1 | $122.00 | Obsolete | View Details |
| 2 | T2305977 Passenger Backrest, Weldment | Passenger Backrest, Weldment | 1 | $201.51 | Backorder — Early August 2026 | 1 |
| 3 | T2305980 Washer Plate | Washer Plate | 2 | $21.97 | Available to order | 2 |
| 4 | A9910358 Screw, But/Hd, M8 x 25, Slv | Screw, But/Hd, M8 x 25, Slv | 4 | $3.78 | Available to order | 4 |
| 5 | A9750675 Spool Kit Rear | Spool Kit Rear * Part No Longer Available * | 2 | $30.00 | Obsolete | View Details |
| 6 | T2355985 Cover, Rear Spool | Cover, Rear Spool | 2 | $5.88 | Available to order | 2 |
| 7 | A9910359 Screw, But/Hd, M8 x 60, Slv | Screw, But/Hd, M8 x 60, Slv | 2 | $13.50 | Available to order | 2 |
| 8 | A9750674 Spool Kit Front | Spool Kit Front * Part No Longer Available * | 2 | $36.00 | Obsolete | View Details |
| 9 | A9910360 Screw, But/Hd, M10 x 60, Slv | Screw, But/Hd, M10 x 60, Slv * Part No Longer Available * | 2 | $22.68 | Obsolete | View Details |
| 10 | T2305990 Lock | Lock | 1 | $65.63 | Available to order | 1 |
| 11 | T2305991 Lock Pawl | Lock Pawl | 1 | $17.80 | Out of Stock | Notify Me |
| 12 | A9750689 Spool Alignment Gauge | Spool Alignment Gauge | 1 | $13.50 | Out of Stock | Notify Me |
| 13 | T2301101 Passenger Backrest Sideplate, LH & RH | Passenger Backrest Sideplate, LH & RH | 1 | $387.29 | Out of Stock | Notify Me |
