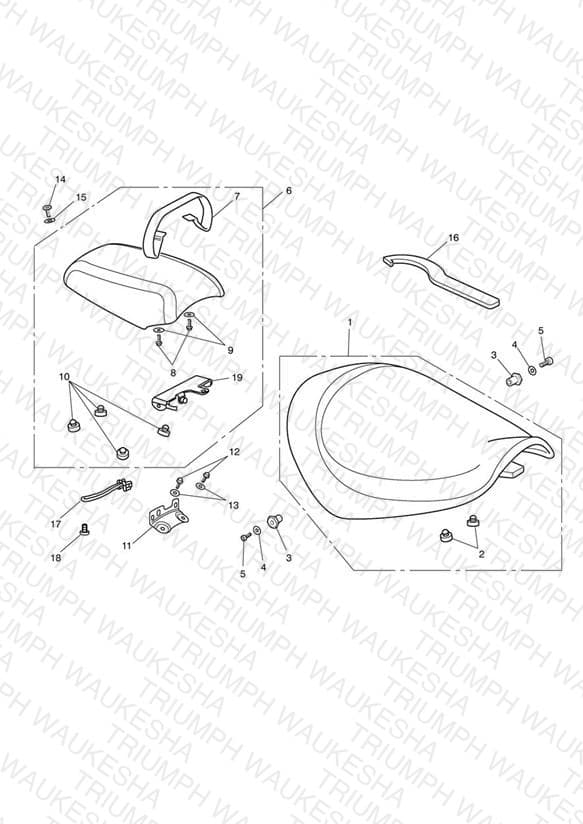

Seat - N/A to Special Edtion
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2301038 Seat Assy, Rider | Seat Assy, Rider | 1 | $448.88 | Out of Stock | Notify Me |
| 2 | T2307367 Rubber Foot, Seat Base | Rubber Foot, Seat Base | 2 | $4.01 | Available to order | 2 |
| 3 | T2309979 Bolt, M12 x 16, Int, M6 x 1.0, Slv | Bolt, M12 x 16, Int, M6 x 1.0, Slv | 2 | $9.41 | Available to order | 2 |
| 4 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 2 | $1.40 | Available to order | 2 |
| 5 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 2 | $1.51 | Available to order | 2 |
| 6 | T2301044 Kit, Pillion Seat | Kit, Pillion Seat > 468044 | 1 | $254.75 | Available to order | 1 |
| 6 | T2301043 Seat Assy, Pillion | Seat Assy, Pillion 468045 > | 1 | $245.24 | Out of Stock | Notify Me |
| 7 | T2301041 Strap, Pillion Seat | Strap, Pillion Seat | 1 | $46.94 | Out of Stock | Notify Me |
| 8 | T2307376 Screw, M6 x 1.0 x 16 | Screw, M6 x 1.0 x 16 | 2 | $3.77 | Available to order | 2 |
| 9 | T2307374 Washer, 24 x 7 x 2 | Washer, 24 x 7 x 2 | 2 | $1.40 | Available to order | 2 |
| 11 | T2301047 Kit, Seat Brackets | Kit, Seat Brackets > 468044 | 1 | $19.47 | Available to order | 1 |
| 11 | T2301024 Bracket, Pillion Seat | Bracket, Pillion Seat 468045 > | 1 | $9.78 | Available to order | 1 |
| 12 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.50 | Available to order | 2 |
| 13 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 2 | $1.21 | Available to order | 2 |
| 14 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 1 | $4.42 | Available to order | 1 |
| 15 | T3550218 Washer, Rubber, 24 x 11.5 | Washer, Rubber, 24 x 11.5 | 1 | $1.62 | Available to order | 1 |
| 16 | T2301448 C-Spanner, Dia 62 | C-Spanner, Dia 62 | 1 | $13.76 | Available to order | 1 |
| 17 | T3600127 O Ring, 31.6x2.4 | O Ring, 31.6x2.4 > 445081 | 1 | $3.50 | Available to order | 1 |
| 18 | T3702073 Clip, Button Head, Black | Clip, Button Head, Black > 445081 | 1 | $1.00 | Obsolete | View Details |
| 19 | T2301046 Front Bracket, Seat Assy | Front Bracket, Seat Assy 468045 > | 1 | $9.78 | Available to order | 1 |
