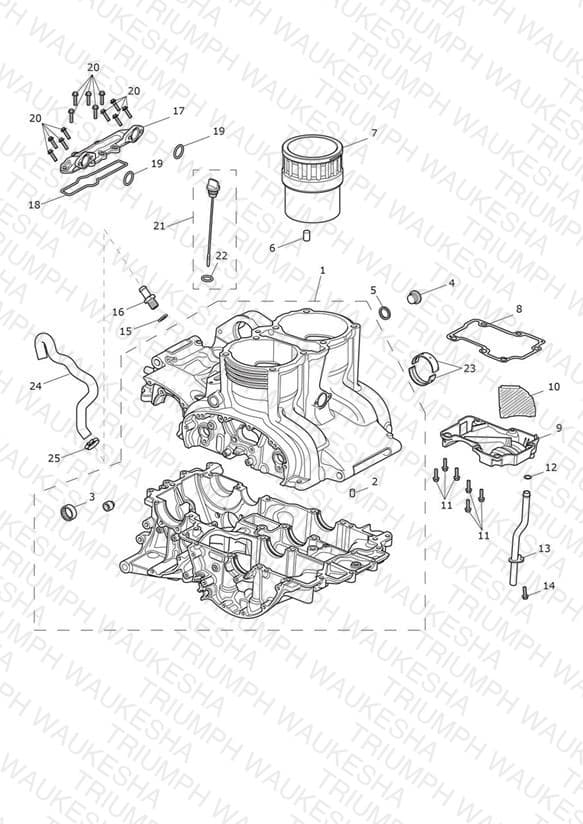

Crankcase & Fittings
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1161660 Crankcase Assy, Spares | Crankcase Assy, Spares > Eng No 413724 | 1 | $4990.60 | Out of Stock | Notify Me |
| 1 | T1168920 Kit, Crankcase, Spares | Kit, Crankcase, Spares Eng No 413725 > | 1 | $4990.60 | Out of Stock | Notify Me |
| 2 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 3 | $1.79 | Available to order | 3 |
| 3 | T3802512 Bearing, Needle | Bearing, Needle | 1 | $11.22 | Available to order | 1 |
| 4 | T3459999 Plug, M20, Face Seal, Slv | Plug, M20, Face Seal, Slv | 2 | $14.46 | Available to order | 2 |
| 5 | T3551185 Washer, Copper, 21.0x26.75x2.0 | Washer, Copper, 21.0x26.75x2.0 | 2 | $3.24 | Available to order | 2 |
| 6 | T3000064 Dowel, Hollow, Dia 14.0 | Dowel, Hollow, Dia 14.0 | 2 | $6.94 | Available to order | 2 |
| 7 | T1169077 Liner, Cylinder, 103.8, Alu | Liner, Cylinder, 103.8, Alu | 2 | $258.54 | Available to order | 2 |
| 7 | T1169088 Liner, Cylinder, 107.1, Aluminium | Liner, Cylinder, 107.1, Aluminium 1700cc Only | 1 | $273.77 | Available to order | 1 |
| 8 | T1161097 Gasket, Breather | Gasket, Breather | 1 | $3.24 | Available to order | 1 |
| 9 | T1161096 Plate, Breather, Moulded | Plate, Breather, Moulded | 1 | $42.14 | Out of Stock | Notify Me |
| 10 | T1161102 Baffle Plate, Perforated | Baffle Plate, Perforated | 1 | $12.16 | Out of Stock | Notify Me |
| 11 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 8 | $5.60 | Available to order | 8 |
| 12 | T3600104 O Ring | O Ring | 1 | $1.44 | Available to order | 1 |
| 13 | T1161098 Pipe, Drain, Breather | Pipe, Drain, Breather | 1 | $13.88 | Out of Stock | Notify Me |
| 14 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 1 | $0.57 | Available to order | 1 |
| 15 | T3551905 Washer, M18 x 21.9 OD, Copper | Washer, M18 x 21.9 OD, Copper | 1 | $2.55 | Available to order | 1 |
| 16 | T1163019 Spout, Breather, Threaded, M16 | Spout, Breather, Threaded, M16 | 1 | $35.44 | Out of Stock | Notify Me |
| 17 | T1161650 Manifold, Coolant, Black | Manifold, Coolant, Black | 1 | $117.87 | Available to order | 1 |
| 18 | T3601529 Seal, O-Ring Formed, Manifold | Seal, O-Ring Formed, Manifold | 1 | $13.33 | Available to order | 1 |
| 19 | T3600158 O-Ring, ID 24.0 x 3.0, HNBR | O-Ring, ID 24.0 x 3.0, HNBR | 2 | $3.39 | Available to order | 2 |
| 20 | T3205094 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 13 | $5.69 | Backorder — Mid August 2026 | 13 |
| 21 | T1160782 Dipstick, Oil Level, Assy | Dipstick, Oil Level, Assy | 1 | $23.95 | Available to order | 1 |
| 22 | T3601136 O-Ring, ID17.5 x Dia. 3.5 | O-Ring, ID17.5 x Dia. 3.5 | 1 | $4.01 | Available to order | 1 |
| 23 | T1160111 Main Bearing Shell, White | Main Bearing Shell, White | 8 | $16.42 | Available to order | 8 |
| 23 | T1160112 Main Bearing Shell, Red | Main Bearing Shell, Red | 8 | $16.42 | Available to order | 8 |
| 23 | T1160113 Main Bearing Shell, Blue | Main Bearing Shell, Blue | 8 | $16.42 | Available to order | 8 |
| 23 | T1160114 Main Bearing Shell, Green | Main Bearing Shell, Green | 8 | $16.42 | Available to order | 8 |
| 24 | T1161101 Hose, Breather, Crankcase | Hose, Breather, Crankcase | 1 | $26.16 | Available to order | 1 |
| 25 | T3700280 Hose Clip, Dia 22.0 - 23.00 | Hose Clip, Dia 22.0 - 23.00 | 1 | $2.98 | Obsolete | View Details |
