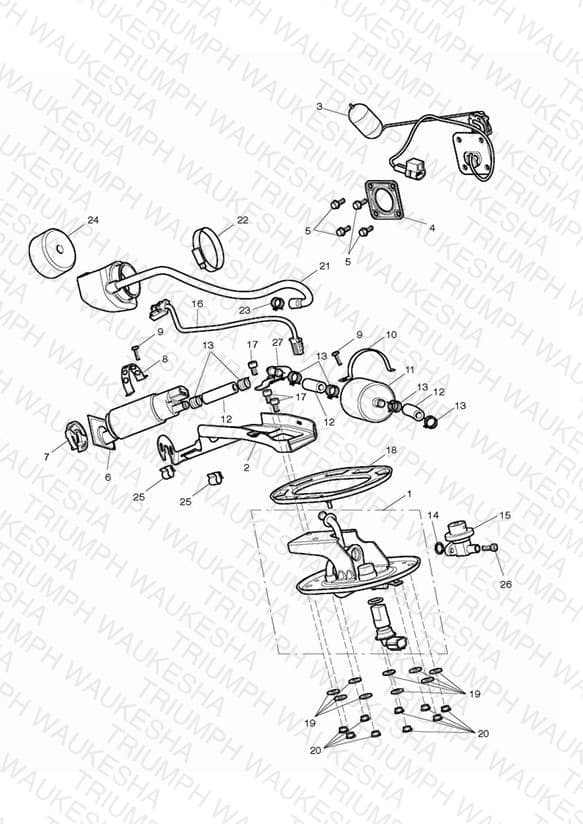

Fuel Pump & Fittings
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2406007 Kit, Pump Plate/O Ring | Kit, Pump Plate/O Ring > 568335 *Part No Longer Available* | 1 | $181.85 | Obsolete | View Details |
| 1 | T2404116 Pump Plate Assy | Pump Plate Assy 568336 > *Part No Longer Available* | 1 | $203.30 | Obsolete | View Details |
| 2 | T2404112 Support Arm, Fuel Pump | Support Arm, Fuel Pump | 1 | $30.23 | Out of Stock | Notify Me |
| 3 | T2404103 Level Sender | Level Sender | 1 | $159.27 | Available to order | 1 |
| 4 | T2401225 Seal, Fuel Level Sender, E25 | Seal, Fuel Level Sender, E25 | 1 | $11.02 | Available to order | 1 |
| 5 | T3330892 Bolt, RHHF, M5 x 15, S5041 | Bolt, RHHF, M5 x 15, S5041 | 4 | $1.21 | Backorder — Early October 2026 | 4 |
| 6 | T1247556 Fuel Pump, EFI, Square Strainer | Fuel Pump, EFI, Square Strainer | 1 | $272.16 | Backorder — Early October 2026 | 1 |
| 7 | T1247557 Cushion, Fuel Pump | Cushion, Fuel Pump | 1 | $9.61 | Available to order | 1 |
| 8 | T1240990 Strap, Retaining, Fuel Pump | Strap, Retaining, Fuel Pump | 1 | $15.12 | Available to order | 1 |
| 9 | T3050308 Screw, Cap/Hd, M4 x 8 | Screw, Cap/Hd, M4 x 8 | 2 | $5.47 | Available to order | 2 |
| 10 | T1240991 Strap, Retaining, Fuel Filter | Strap, Retaining, Fuel Filter | 1 | $15.12 | Available to order | 1 |
| 11 | T1240850 Fuel Filter | Fuel Filter | 1 | $66.81 | Available to order | 1 |
| 12 | T3620395 Fuel Hose, 45mm | Fuel Hose, 45mm | 3 | $10.52 | Available to order | 3 |
| 13 | T3700089 Hose Clip, Dia 12.5 | Hose Clip, Dia 12.5 | 6 | $4.27 | Available to order | 6 |
| 14 | T3600098 O Ring, ID 10 x 2.0 | O Ring, ID 10 x 2.0 > 568335 | 1 | $1.29 | Available to order | 1 |
| 14 | T3600213 O Ring, ID 9.8 x 1.9 | O Ring, ID 9.8 x 1.9 568336 > | 1 | $2.53 | Available to order | 1 |
| 15 | T1241101 Fuel Regulator, 3.5 Bar | Fuel Regulator, 3.5 Bar | 1 | $83.94 | Backorder — Early October 2026 | 1 |
| 16 | T1241097 Fly Lead, Fuel Pump | Fly Lead, Fuel Pump | 1 | $25.33 | Available to order | 1 |
| 17 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 3 | $1.36 | Available to order | 3 |
| 18 | T2401367 Seal, Fuel Pump, E25 | Seal, Fuel Pump, E25 | 1 | $26.80 | Available to order | 1 |
| 19 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 | 9 | $1.04 | Available to order | 9 |
| 20 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 9 | $2.40 | Available to order | 9 |
| 21 | T2404775 Baffle, Fuel Pump | Baffle, Fuel Pump | 1 | $45.06 | Available to order | 1 |
| 22 | T2102116 Clip, Hose, 11-12.5 | Clip, Hose, 11-12.5 | 1 | $6.98 | Out of Stock | Notify Me |
| 23 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.77 | Available to order | 1 |
| 24 | T2401843 Fuel Filter, Fuel Pump Baffle | Fuel Filter, Fuel Pump Baffle | 1 | $17.45 | Available to order | 1 |
| 25 | T3700330 Clip Hose, DIA 9.1mm | Clip Hose, DIA 9.1mm | 2 | $8.52 | Available to order | 2 |
| 26 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 1 | $3.04 | Available to order | 1 |
| 27 | T2404113 Pipe Assy, Fuel Pump | Pipe Assy, Fuel Pump | 1 | $29.60 | Available to order | 1 |
