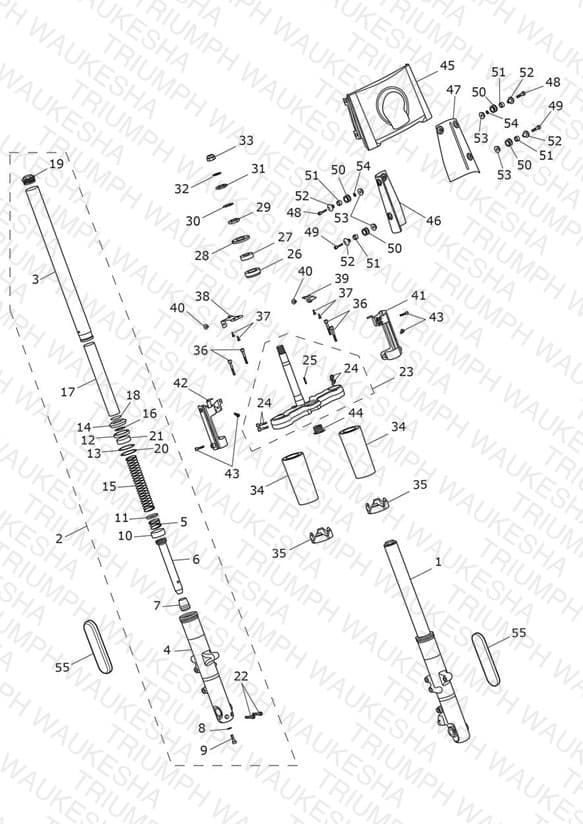

Front Forks & Lower Yoke
Parts (60)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2041721 Front Fork Spares Kit, LH | Front Fork Spares Kit, LH > 784875 | 1 | $1740.66 | Backorder — Mid October 2026 | 1 |
| 1 | T2041591 Fork Assy, LH | Fork Assy, LH 784876 > | 1 | $1713.46 | Available to order | 1 |
| 2 | T2041722 Front Fork Spares Kit, RH | Front Fork Spares Kit, RH > 784875 | 1 | $1740.66 | Out of Stock | Notify Me |
| 2 | T2041592 Fork Assy, RH | Fork Assy, RH 784876 > | 1 | $1713.46 | Available to order | 1 |
| 3 | T2041679 Stanchion, Fork | Stanchion, Fork | 2 | $293.96 | Obsolete | View Details |
| 4 | T2045733 Slider, Fork, LH | Slider, Fork, LH | 1 | $580.23 | Out of Stock | Notify Me |
| 4 | T2045734 Slider, Fork, RH | Slider, Fork, RH | 1 | $580.23 | Available to order | 1 |
| 5 | T2041682 Rebound Spring | Rebound Spring | 2 | $12.32 | Available to order | 2 |
| 6 | T2041683 Component, Under Seat | Component, Under Seat | 2 | $40.38 | Out of Stock | Notify Me |
| 7 | T2045655 Oil Lock Piece | Oil Lock Piece | 2 | $16.31 | Available to order | 2 |
| 8 | T2045656 Washer, Copper | Washer, Copper | 2 | $1.50 | Available to order | 2 |
| 9 | T2045657 Bolt, M10 | Bolt, M10 | 2 | $17.74 | Available to order | 2 |
| 10 | T2041173 Bush, Guide | Bush, Guide | 2 | $14.85 | Available to order | 2 |
| 11 | T2041688 Sealing Washer | Sealing Washer | 2 | $5.58 | Out of Stock | Notify Me |
| 12 | T2045660 Seal, Front Fork | Seal, Front Fork | 2 | $24.55 | Available to order | 2 |
| 13 | T2041690 Oil Seal Stopper Ring | Oil Seal Stopper Ring | 2 | $24.21 | Available to order | 2 |
| 14 | T2046249 Oil & Dust Seals, Pairs, Kit | Oil & Dust Seals, Pairs, Kit > 784875 - Contains 2 Oil Seals & 2 Dust Seals per kit | 1 | $87.21 | Available to order | 1 |
| 14 | T2041519 Dust Seal Kit | Dust Seal Kit > 784875 | 2 | $41.27 | Available to order | 2 |
| 14 | T2041541 Dust Seal | Dust Seal 784876 > | 2 | $21.43 | Available to order | 2 |
| 15 | T2041692 Spring | Spring | 2 | $100.74 | Available to order | 2 |
| 16 | T2045664 Washer, Spring | Washer, Spring | 2 | $4.27 | Available to order | 2 |
| 17 | T2045665 Spacer, Spring | Spacer, Spring | 2 | $11.84 | Available to order | 2 |
| 18 | T2045666 O Ring, End Cap | O Ring, End Cap | 2 | $2.91 | Available to order | 2 |
| 19 | T2045621 End Cap | End Cap | 2 | $81.20 | Available to order | 2 |
| 20 | T2041184 Bush, Slider | Bush, Slider | 2 | $15.12 | Available to order | 2 |
| 21 | T2041697 Abrasion Collar | Abrasion Collar | 2 | $25.33 | Backorder — Mid January 2027 | 2 |
| 22 | T3050073 Capscrew | Capscrew | 2 | $6.27 | Available to order | 2 |
| 23 | T2049110 Lower Yoke Assy, Black | Lower Yoke Assy, Black > 633669 | 1 | $707.15 | Available to order | 1 |
| 24 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 4 | $5.05 | Available to order | 4 |
| 25 | T3000096 Pin, Spirol Dia 3 x 18 | Pin, Spirol Dia 3 x 18 | 1 | $5.35 | Available to order | 1 |
| 26 | T3800031 Bearing, 30x55x17, Taper Roll | Bearing, 30x55x17, Taper Roll | 1 | $32.55 | Available to order | 1 |
| 27 | T3800032 Bearing, 24x47x15, Taper Roll | Bearing, 24x47x15, Taper Roll | 1 | $59.91 | Available to order | 1 |
| 28 | T2046552 Cover, Headstock Bearing | Cover, Headstock Bearing | 1 | $10.84 | Available to order | 1 |
| 29 | T2041265 Adjuster Nut, Lower | Adjuster Nut, Lower | 1 | $13.94 | Available to order | 1 |
| 30 | T3551820 Locating Washer, 25.5x38x2, Slv | Locating Washer, 25.5x38x2, Slv | 1 | $1.84 | Available to order | 1 |
| 31 | T2140210 Adjuster Nut, Upper | Adjuster Nut, Upper | 1 | $3.61 | Available to order | 1 |
| 32 | T2040061 Washer Upper Yoke | Washer Upper Yoke | 1 | $7.60 | Available to order | 1 |
| 33 | T2040060 Nut | Nut | 1 | $25.75 | Available to order | 1 |
| 34 | T2045016 Shroud, Lower Fork | Shroud, Lower Fork | 2 | $59.74 | Available to order | 2 |
| 35 | T3020046 Grommet, Shroud, Castellated | Grommet, Shroud, Castellated | 2 | $5.35 | Available to order | 2 |
| 36 | T3205073 Bolt, HHF, Lghtd, M6 x 1.0 x 50, Slv | Bolt, HHF, Lghtd, M6 x 1.0 x 50, Slv | 4 | $7.18 | Available to order | 4 |
| 37 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 4 | $3.45 | Available to order | 4 |
| 38 | T2049777 Bracket, RH, Shroud Support | Bracket, RH, Shroud Support | 1 | $22.30 | Available to order | 1 |
| 39 | T2049778 Bracket, LH, Shroud Support | Bracket, LH, Shroud Support | 1 | $22.30 | Available to order | 1 |
| 40 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 2 | $4.70 | Available to order | 2 |
| 41 | T2049781 Shroud Support Bracket, LH | Shroud Support Bracket, LH | 1 | $38.97 | Available to order | 1 |
| 42 | T2049782 Shroud Support Bracket, RH | Shroud Support Bracket, RH | 1 | $38.97 | Available to order | 1 |
| 43 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 4 | $1.04 | Available to order | 4 |
| 44 | T3450060 Cap | Cap | 1 | $1.50 | Available to order | 1 |
| 45 | T2045003 Shroud, Upper, Front, Single | Shroud, Upper, Front, Single | 1 | $69.05 | Available to order | 1 |
| 46 | T2045015 Shroud, Rear, RH Assy | Shroud, Rear, RH Assy | 1 | $44.09 | Out of Stock | Notify Me |
| 47 | T2045014 Shroud, Rear, LH Assy | Shroud, Rear, LH Assy | 1 | $44.09 | Available to order | 1 |
| 48 | T3051061 Screw, Cap/Hd, M6 x 30, Slv | Screw, Cap/Hd, M6 x 30, Slv | 2 | $5.47 | Available to order | 2 |
| 49 | T3050303 Capscrew, SKT HD, M6 x 35, Pltd | Capscrew, SKT HD, M6 x 35, Pltd | 2 | $1.29 | Available to order | 2 |
| 50 | T2303807 Spool, Upper | Spool, Upper | 4 | $12.91 | Available to order | 4 |
| 51 | T2303761 Cushion, Urethane, HD SB Spool | Cushion, Urethane, HD SB Spool | 4 | $10.66 | Available to order | 4 |
| 52 | T2303809 Bush, Bobbin, M6 | Bush, Bobbin, M6 | 4 | $13.82 | Available to order | 4 |
| 53 | T2303803 Spacer, Bobbin | Spacer, Bobbin | 4 | $13.59 | Available to order | 4 |
| 54 | T2303762 Washer, Flat, M6, Brass | Washer, Flat, M6, Brass | 2 | $2.37 | Available to order | 2 |
| 55 | T2700332 Reflector, Amber, Oval | Reflector, Amber, Oval | 2 | $6.81 | Available to order | 2 |
