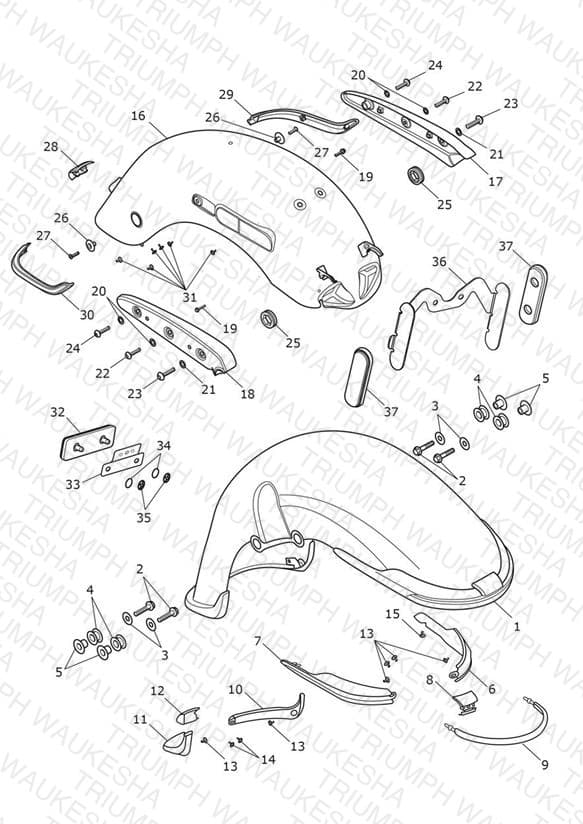

Mudguards - 738585 >
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2302284-CD Front Mudguard | Front Mudguard Lava Rad / Phantom Black | 1 | $729.89 | Available to order | 1 |
| 1 | T2302284-PG Front Mudguard | Front Mudguard Jet Black | 1 | $729.89 | Available to order | 1 |
| 1 | T2302284-NW Front Mudguard | Front Mudguard Crystal White / Phantom Black | 1 | $729.89 | Available to order | 1 |
| 2 | T3202319 Bolt, HHF, M8 x 35, Slv | Bolt, HHF, M8 x 35, Slv | 4 | $2.63 | Available to order | 4 |
| 3 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 4 | $2.74 | Available to order | 4 |
| 4 | T3020037 Grommet OD19 THK9 ID12 | Grommet OD19 THK9 ID12 | 4 | $2.37 | Backorder — Late August 2026 | 4 |
| 5 | T3010235 Flanged Sleeve, M8 | Flanged Sleeve, M8 | 4 | $17.11 | Available to order | 4 |
| 6 | T2308112 Embellisher, LH, Front | Embellisher, LH, Front | 1 | $79.84 | Available to order | 1 |
| 7 | T2308113 Embellisher, RH, Front | Embellisher, RH, Front | 1 | $79.84 | Available to order | 1 |
| 8 | T2308114 Embellisher, Centre, Front | Embellisher, Centre, Front | 1 | $96.97 | Available to order | 1 |
| 9 | T2308115 Rubber, Embellisher, Front | Rubber, Embellisher, Front | 1 | $26.99 | Available to order | 1 |
| 10 | T2308116 Embellisher, LH, Rear | Embellisher, LH, Rear | 1 | $71.29 | Available to order | 1 |
| 11 | T2308117 Embellisher, RH, Rear | Embellisher, RH, Rear | 1 | $71.29 | Available to order | 1 |
| 12 | T2308118 Embellisher, Centre, Rear | Embellisher, Centre, Rear | 1 | $28.96 | Available to order | 1 |
| 13 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 6 | $0.75 | Available to order | 6 |
| 14 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 2 | $1.51 | Available to order | 2 |
| 15 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 2 | $8.46 | Available to order | 2 |
| 16 | T2301164-CD Rear Mudguard Assembly | Rear Mudguard Assembly Lava Rad / Phantom Black | 1 | $922.34 | Out of Stock | Notify Me |
| 16 | T2301164-JD Rear Mudguard Assembly | Rear Mudguard Assembly Caspian Blue / Crystal White > 713760 | 1 | $922.34 | Available to order | 1 |
| 16 | T2301164-PG Rear Mudguard Assembly | Rear Mudguard Assembly Jet Black; 676648 > | 1 | $922.34 | Available to order | 1 |
| 16 | T2301164-NW Rear Mudguard Assembly | Rear Mudguard Assembly Crystal White / Phantom Black | 1 | $922.34 | Out of Stock | Notify Me |
| 17 | T2306409 Pressing, Mudgard Support, LH | Pressing, Mudgard Support, LH | 1 | $102.64 | Available to order | 1 |
| 18 | T2306408 Pressing, Mudguard Support, RH | Pressing, Mudguard Support, RH | 1 | $102.64 | Available to order | 1 |
| 19 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 20 | T3551282 Washer, M8, 8.4 x 15 x 1.6, Slv | Washer, M8, 8.4 x 15 x 1.6, Slv | 4 | $3.39 | Backorder — Late August 2026 | 4 |
| 21 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.00 | Available to order | 2 |
| 22 | T3205882 Bolt, Truss/Hd, TRX, M8 x 35 | Bolt, Truss/Hd, TRX, M8 x 35 | 2 | $9.02 | Available to order | 2 |
| 23 | T3205883 Bolt, Truss/Hd, TRX, M10 x 45 | Bolt, Truss/Hd, TRX, M10 x 45 | 2 | $9.31 | Backorder — Late August 2026 | 2 |
| 24 | T3205881 Bolt, Truss/Hd, TRX, M8 x 30 | Bolt, Truss/Hd, TRX, M8 x 30 | 2 | $8.75 | Available to order | 2 |
| 25 | T2306414 Grommet, RSU Mount | Grommet, RSU Mount | 2 | $2.95 | Available to order | 2 |
| 26 | T3010180 Flanged Sleeve, CSK, M6 | Flanged Sleeve, CSK, M6 | 2 | $17.11 | Available to order | 2 |
| 27 | T3331196 Screw, Skt, C'sk, M6 x 25, Slv | Screw, Skt, C'sk, M6 x 25, Slv | 2 | $4.12 | Available to order | 2 |
| 28 | T2305913 Rear Mudguard Embellisher, Centre | Rear Mudguard Embellisher, Centre | 1 | $54.20 | Available to order | 1 |
| 29 | T2305912 Rear Mudguard Embellisher, LH | Rear Mudguard Embellisher, LH | 1 | $85.52 | Available to order | 1 |
| 30 | T2305911 Rear Mudguard Embellisher, RH | Rear Mudguard Embellisher, RH | 1 | $85.52 | Available to order | 1 |
| 32 | T2707111 Reflex Reflector | Reflex Reflector | 1 | $9.88 | Available to order | 1 |
| 33 | T2701999 Bracket, Rear Reflector | Bracket, Rear Reflector | 1 | $8.75 | Available to order | 1 |
| 34 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 2 | $5.30 | Available to order | 2 |
| 35 | T3550253 Washer, Dia 5 mm, Retaining | Washer, Dia 5 mm, Retaining | 2 | $0.97 | Available to order | 2 |
| 36 | T2701024 Reflector Bracket | Reflector Bracket | 1 | $66.52 | Backorder — Mid August 2026 | 1 |
| 37 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 2 | $6.14 | Available to order | 2 |
