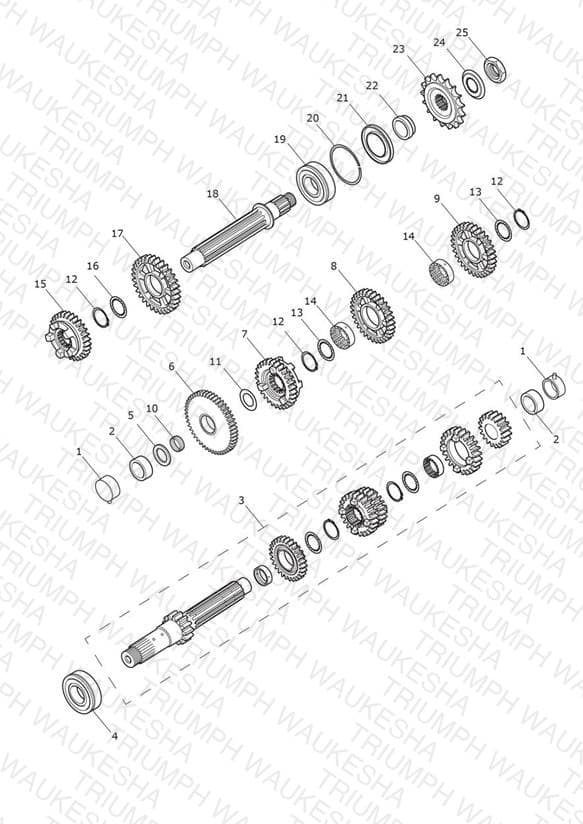

Transmission - Eng No 536533 >
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1180155 Sleeve Assembly, Input & Output | Sleeve Assembly, Input & Output | 2 | $117.87 | Available to order | 2 |
| 2 | T3800800 Bearing, Needle, K25 x 32 x 16 | Bearing, Needle, K25 x 32 x 16 | 2 | $17.21 | Available to order | 2 |
| 3 | T1185078 Input Shaft Spares Assy | Input Shaft Spares Assy | 1 | $853.20 | Available to order | 1 |
| 4 | 3800002-T0301 Bearing, Ball, DG2868 GN1C3 | Bearing, Ball, DG2868 GN1C3 | 1 | $43.51 | Available to order | 1 |
| 5 | T1180384 Washer, Thrust, 38 x 2.5 | Washer, Thrust, 38 x 2.5 | 1 | $3.77 | Available to order | 1 |
| 6 | T1181551 Gear, Output, First | Gear, Output, First | 1 | $153.98 | Available to order | 1 |
| 7 | T1187705 Output, Gear, Fifth | Output, Gear, Fifth | 1 | $127.38 | Backorder — Early October 2026 | 1 |
| 8 | T1187704 Gear, Output, Fourth | Gear, Output, Fourth | 1 | $110.28 | Backorder — Early August 2026 | 1 |
| 9 | T1181562 Gear, Output, Third | Gear, Output, Third | 1 | $127.38 | Available to order | 1 |
| 10 | T3800101 Bearing, Needle | Bearing, Needle | 1 | $18.85 | Available to order | 1 |
| 11 | T3555016 Thrust Washer, 25 x 35 x 1.0 | Thrust Washer, 25 x 35 x 1.0 | 1 | $4.92 | Available to order | 1 |
| 12 | T3500270 Circlip, 32mm Shaft | Circlip, 32mm Shaft | 3 | $7.02 | Available to order | 3 |
| 13 | T1180292 Washer, Thrust, Output | Washer, Thrust, Output | 2 | $4.85 | Available to order | 2 |
| 14 | T1181557 Bush, 3rd/4th, Output | Bush, 3rd/4th, Output | 1 | $44.40 | Out of Stock | Notify Me |
| 15 | T1186777 Kit, Gears, Output, Second & Sixth | Kit, Gears, Output, Second & Sixth > 596797 - Required when ordering item 15 or item 17 | 1 | $247.17 | Out of Stock | Notify Me |
| 15 | T1187817 Gear, Output, Sixth, 27/28 | Gear, Output, Sixth, 27/28 596798 > | 1 | $129.27 | Available to order | 1 |
| 16 | T1180051 Washer,Thrust, 41 OD x 1.5 | Washer,Thrust, 41 OD x 1.5 | 1 | $4.74 | Available to order | 1 |
| 17 | T1187812 Gear Assy, Output, Second | Gear Assy, Output, Second 596798 > | 1 | $125.46 | Available to order | 1 |
| 18 | T1187700 Output Shaft | Output Shaft | 1 | $387.29 | Out of Stock | Notify Me |
| 19 | T3800132 Bearing, 30 x 62 x 16, DGB | Bearing, 30 x 62 x 16, DGB | 1 | $119.76 | Out of Stock | Notify Me |
| 20 | T3800300 Snap Ring, Ext, 62 x 1.7 | Snap Ring, Ext, 62 x 1.7 | 1 | $3.59 | Available to order | 1 |
| 21 | T3600112 Oil seal | Oil seal | 1 | $11.32 | Available to order | 1 |
| 22 | T1181191 Distance Sleeve | Distance Sleeve | 1 | $4.12 | Available to order | 1 |
| 23 | T1180177 Sprocket Gearbox, 18 T | Sprocket Gearbox, 18 T | 1 | $36.78 | Available to order | 1 |
| 24 | T1180181 Washer, Gearbox Sprocket | Washer, Gearbox Sprocket | 1 | $7.56 | Available to order | 1 |
| 25 | T1180175 Nut, Gearbox Sprocket | Nut, Gearbox Sprocket | 1 | $5.56 | Available to order | 1 |
