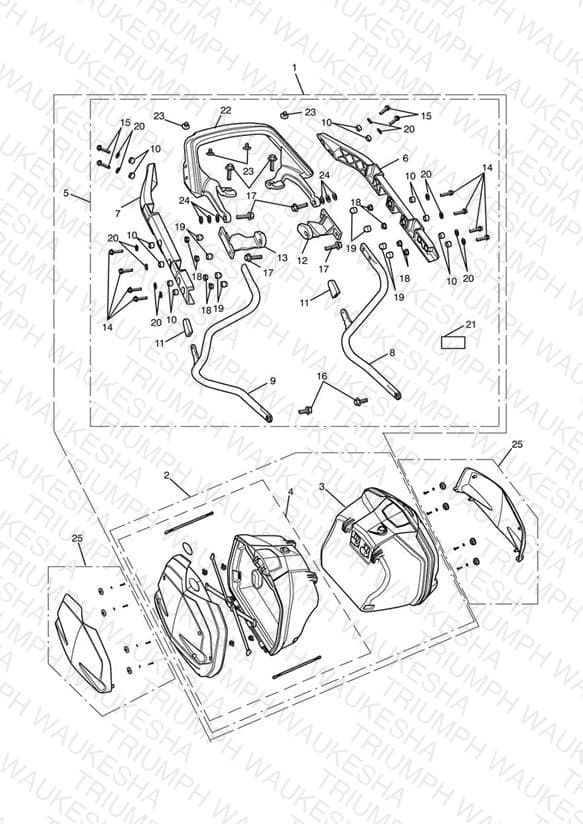

Loading schematic...
Panniers
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9508041 2 Box Pannier Kit | 2 Box Pannier Kit | 1 | $1009.40 | Obsolete | View Details |
| 2 | T2350302 Pannier Kit, 2 Box | Pannier Kit, 2 Box | 1 | $933.63 | Obsolete | View Details |
| 2 | T2350301 PANNIER KIT, 2 BOX, USA | PANNIER KIT, 2 BOX, USA US, CA, TW & AR only | 1 | $1015.36 | Out of Stock | Notify Me |
| 3 | A9508100 Pannier Assy, Inc Latch Replaced by A9508101 — Pannier Assy, Inc Latch | Pannier Assy, Inc Latch | 1 | $453.20 | Unavailable | View Details |
| 4 | A9508052 Pannier Assy RH, Spares Cond Replaced by A9508053 — Pannier Assy RH | Pannier Assy RH, Spares Cond | 1 | $309.00 | Unavailable | View Details |
| 5 | T2350370 2 Box Pannier Fitting Kit | 2 Box Pannier Fitting Kit | 1 | $455.56 | Obsolete | View Details |
| 6 | T2350351 Pannier Rail, LHS | Pannier Rail, LHS | 1 | $68.08 | Available to order | 1 |
| 7 | T2350352 Pannier Rail, RHS | Pannier Rail, RHS | 1 | $68.08 | Available to order | 1 |
| 8 | T2350353 Socket Locator, LH | Socket Locator, LH | 1 | $133.61 | Available to order | 1 |
| 9 | T2350354 Socket Locator, RH | Socket Locator, RH | 1 | $140.93 | Available to order | 1 |
| 10 | T2350355 Comp Limiter, M8 x 8 | Comp Limiter, M8 x 8 | 12 | $3.74 | Obsolete | View Details |
| 11 | T2350356 Boot, Rubber | Boot, Rubber | 2 | $5.16 | Available to order | 2 |
| 12 | A9500195 Bracket, Intermediate, LHS | Bracket, Intermediate, LHS | 1 | $44.28 | Obsolete | View Details |
| 13 | A9500196 Bracket, Intermediate, RHS | Bracket, Intermediate, RHS | 1 | $53.53 | Backorder — Early October 2026 | 1 |
| 14 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 8 | $2.61 | Available to order | 8 |
| 15 | T3331099 Bolt, HHF, M6 x 20, S/S | Bolt, HHF, M6 x 20, S/S > 475062 | 4 | $6.06 | Available to order | 4 |
| 15 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc 475063 > | 4 | $5.97 | Available to order | 4 |
| 16 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 2 | $1.73 | Available to order | 2 |
| 17 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 6 | $1.29 | Available to order | 6 |
| 18 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 8 | $0.71 | Available to order | 8 |
| 19 | T3450124 Cap | Cap | 8 | $5.97 | Available to order | 8 |
| 20 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 12 | $1.50 | Available to order | 12 |
| 21 | T3660171 Pad, Rubber, 30 x 10 x 5, thick | Pad, Rubber, 30 x 10 x 5, thick | 4 | $8.61 | Available to order | 4 |
| 22 | T2305056 Grabrail, Finished | Grabrail, Finished * Part No Longer Available * | 1 | $196.35 | Obsolete | View Details |
| 23 | T3451260 Firtree, 5 x 11mm, Blk | Firtree, 5 x 11mm, Blk | 4 | $1.50 | Available to order | 4 |
| 24 | T3550277 Washer, M8 | Washer, M8 | 6 | $1.13 | Available to order | 6 |
| 25 | T2350688-LS Infill Panel Kit, Matt Graphite Replaced by A9508035-LS — Infill Panel Kit, Pannier | Infill Panel Kit, Matt Graphite | 1 | $163.98 | Unavailable | View Details |
| 25 | T2350650-LS Infill Panel Pannier | Infill Panel Pannier | 1 | $88.63 | Out of Stock | Notify Me |
| 25 | T2350688-EI Infill Panel Kit, Intense Orange | Infill Panel Kit, Intense Orange 451181 > 483575 | 1 | $177.56 | Available to order | 1 |
| 25 | T2350650-EI Infill Panel, Pannier, Intense Orange | Infill Panel, Pannier, Intense Orange 451181 > 483575 | 1 | $88.63 | Out of Stock | Notify Me |
| 25 | A9508035-CW Infill Panel Kit, Pannier | Infill Panel Kit, Pannier 483576 > | 1 | $105.43 | Obsolete | View Details |
| 26 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red US, CA, TW, AR & ZA only | 2 | $6.54 | Available to order | 2 |
