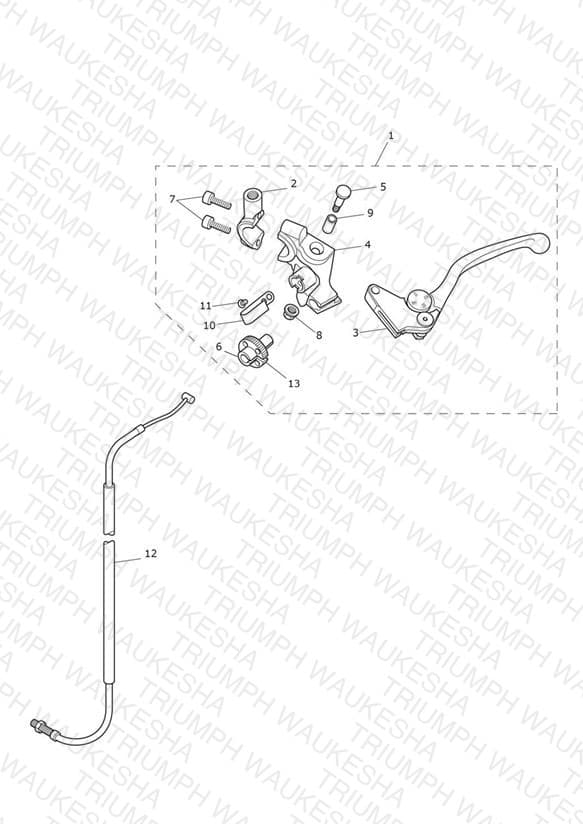

Clutch Controls
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046583 Lever Assy, Clutch, Adj | Lever Assy, Clutch, Adj | 1 | $115.19 | Available to order | 1 |
| 2 | T2025450 Clamp, Clutch Lever Bracket | Clamp, Clutch Lever Bracket | 1 | $31.94 | Available to order | 1 |
| 3 | T2046021 Adjustable Clutch Lever | Adjustable Clutch Lever | 1 | $87.92 | Available to order | 1 |
| 4 | T2046512 Clutch Lever Bracket | Clutch Lever Bracket > 561382 | 1 | $33.08 | Out of Stock | Notify Me |
| 4 | T2046527 Clutch Lever Bracket | Clutch Lever Bracket 561383 > | 1 | $38.96 | Available to order | 1 |
| 5 | T2046524 Pivot Bolt | Pivot Bolt | 1 | $2.63 | Available to order | 1 |
| 6 | T2046523 Adjuster, Clutch Cable | Adjuster, Clutch Cable > 561382 | 1 | $6.83 | Available to order | 1 |
| 6 | T2046520 Adjuster Screw | Adjuster Screw 561383 > | 1 | $8.53 | Available to order | 1 |
| 7 | T2046522 Bolt, Handlebar Clamp | Bolt, Handlebar Clamp | 2 | $2.00 | Available to order | 2 |
| 8 | T2046521 Nut, Pivot Bolt | Nut, Pivot Bolt | 1 | $1.21 | Available to order | 1 |
| 9 | T2046526 Collar, Clutch Lever | Collar, Clutch Lever | 1 | $3.29 | Available to order | 1 |
| 10 | T2046513 Clip, Cable Adjuster | Clip, Cable Adjuster > 561382 | 1 | $4.85 | Available to order | 1 |
| 11 | T2046514 Screw, Cable Adjuster Clip | Screw, Cable Adjuster Clip > 561382 | 1 | $1.80 | Obsolete | View Details |
| 12 | T2049205 Clutch Cable | Clutch Cable | 1 | $55.63 | Available to order | 1 |
| 13 | T3350205 Locknut, M8, Knurled | Locknut, M8, Knurled Part No Longer Available | 1 | $1.43 | Obsolete | View Details |
