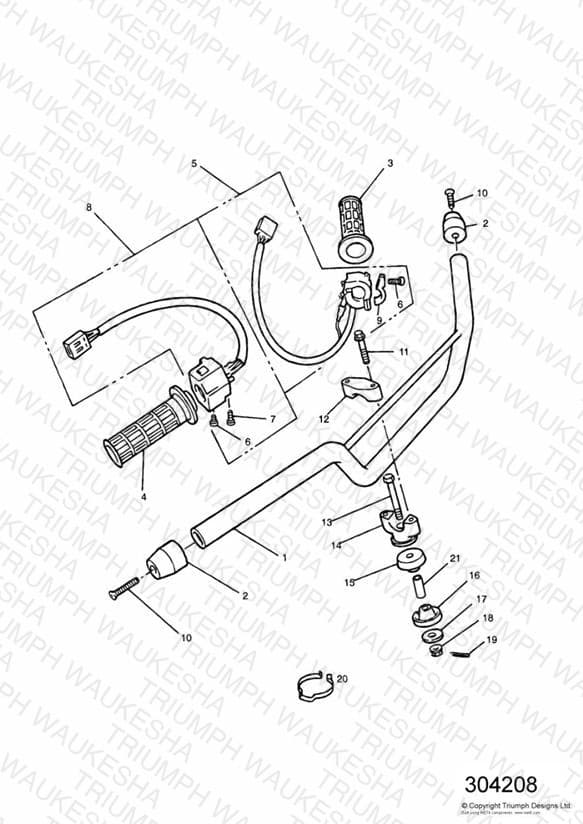

Handlebars and Switches
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2043450-T0301 Handlebars | Handlebars | 1 | $133.71 | Obsolete | View Details |
| 2 | T2040238 Weight | Weight | 2 | $36.21 | Available to order | 2 |
| 3 | 2040026-T0301 Grip | Grip LH | 1 | $18.16 | Available to order | 1 |
| 4 | 2040120-T0301 Grip | Grip RH | 1 | $12.59 | Obsolete | View Details |
| 5 | 2040028-T0301 Switch assembly | Switch assembly LH | 1 | $136.92 | Obsolete | View Details |
| 6 | T3330018 Screw, Phil, Pan/Hd, M5 x 25 | Screw, Phil, Pan/Hd, M5 x 25 M5 x 25mm For LH assembly | 2 | $2.17 | Available to order | 2 |
| 7 | 3330019-T0301 Screw, Phil, M5 x 30 | Screw, Phil, M5 x 30 * PART NO LONGER AVAILABLE * | 1 | $0.96 | Obsolete | View Details |
| 8 | 2040130-T0301 Switch assembly | Switch assembly * PART NO LONGER AVAILABLE * RH UK,NL,FR,ES,PT,IT,NZ,AR,ZA,GR,HK,BR,CY - All VINS JP, » 42766 - Switch back plate is lon longer supplied with switch and is not available | 1 | $144.21 | Obsolete | View Details |
| 8 | 2040132-T0301 Switch assembly | Switch assembly * PART NO LONGER AVAILABLE * RH AU,MY,SE,CA,US,SG - All VINS JP, 42767 » | 1 | $164.11 | Obsolete | View Details |
| 9 | 2040030-T0301 Choke lever | Choke lever * PART NO LONGER AVAILABLE * | 1 | $8.31 | Obsolete | View Details |
| 10 | T3330933 Screw, CSK, M6 x 60, Slv | Screw, CSK, M6 x 60, Slv M6 x 60mm | 2 | $0.75 | Available to order | 2 |
| 11 | 2043078-T0301 Bolt | Bolt » 45875 | 4 | $3.74 | Obsolete | View Details |
| 11 | T2042882 Bolt | Bolt 45876 » M8 x 35mm | 4 | $4.12 | Available to order | 4 |
| 12 | 2043440-T0301 Clamping cap | Clamping cap » 45875 | 2 | $22.32 | Obsolete | View Details |
| 12 | T2042880 Clamping cap | Clamping cap 45876 » | 2 | $23.74 | Obsolete | View Details |
| 13 | 2043080-T0301 Bolt | Bolt » 45875 | 2 | $3.17 | Out of Stock | Notify Me |
| 13 | T2042883 Bolt | Bolt 45876 » M10 x 70mm | 2 | $8.15 | Obsolete | View Details |
| 14 | 2043430-T0301 Clamping block | Clamping block » 45875 | 2 | $26.54 | Obsolete | View Details |
| 14 | T2042881 Clamping block | Clamping block 45876 » | 2 | $26.54 | Obsolete | View Details |
| 15 | 2043086-T0301 Damper | Damper » 45875 | 2 | $5.09 | Obsolete | View Details |
| 15 | T2042884 Bush | Bush 45876 » PART NO LONGER AVAILABLE | 2 | $11.01 | Obsolete | View Details |
| 16 | 2043084-T0301 Damper | Damper » 45875 | 2 | $13.37 | Obsolete | View Details |
| 17 | 2043088-T0301 Washer | Washer » 45875 then deleted | 2 | $3.33 | Obsolete | View Details |
| 18 | T2043082 Nut, M10, 14 A/F | Nut, M10, 14 A/F » 45875 | 2 | $8.09 | Out of Stock | Notify Me |
| 18 | T2042886 Nut | Nut 45876 » | 2 | $3.33 | Available to order | 2 |
| 19 | 3000080-T0301 Clip | Clip » 45875 * Part No Longer Available * | 2 | $0.70 | Obsolete | View Details |
| 20 | T3700025 Cable clip | Cable clip | 4 | $2.10 | Available to order | 4 |
| 21 | T2042885 Sleeve | Sleeve 45876 » | 2 | $17.37 | Obsolete | View Details |
