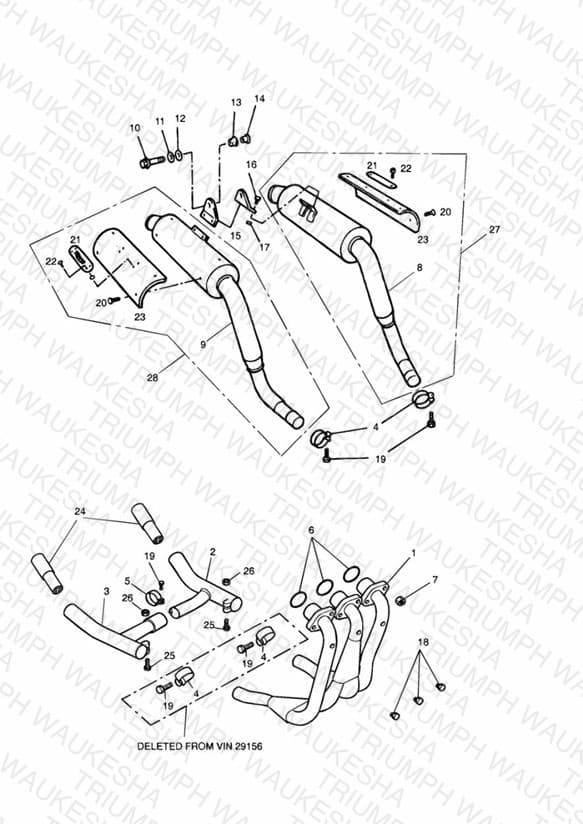

Exhaust System
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2200517-T0301 Downpipe | Downpipe » 29155 | 1 | $1147.91 | Obsolete | View Details |
| 1 | T2201011 Downpipe | Downpipe 29156 » | 1 | $1147.91 | Obsolete | View Details |
| 2 | 2200630-T0301 Tailpipe | Tailpipe » 29155 LH | 1 | $60.22 | Obsolete | View Details |
| 2 | T2201023 Tailpipe | Tailpipe 29156 » LH | 1 | $51.95 | Obsolete | View Details |
| 3 | 2200640-T0301 Tailpipe | Tailpipe » 29155 RH | 1 | $60.22 | Obsolete | View Details |
| 3 | T2201018 Tailpipe | Tailpipe 29156 » RH | 1 | $51.95 | Obsolete | View Details |
| 4 | T2201695 Clamp, Exhaust, Polished | Clamp, Exhaust, Polished » 29155 | 4 | $11.33 | Available to order | 4 |
| 5 | 2200175-T0301 Clamp | Clamp | 1 | $9.67 | Obsolete | View Details |
| 6 | T2200229 Exhaust Pipe Sealing Ring | Exhaust Pipe Sealing Ring | 3 | $14.59 | Available to order | 3 |
| 7 | T3350301 Nut, Flanged, M8, Silver | Nut, Flanged, M8, Silver | 6 | $0.86 | Available to order | 6 |
| 8 | T2200650 Silencer | Silencer LH | 1 | $607.41 | Out of Stock | Notify Me |
| 9 | T2200660 Silencer | Silencer RH | 1 | $607.41 | Out of Stock | Notify Me |
| 10 | 3210020-T0301 Bolt | Bolt M8 x 40mm | 2 | $4.26 | Obsolete | View Details |
| 11 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.91 | Available to order | 2 |
| 12 | T3551553 Washer, Rubber | Washer, Rubber M8 | 2 | $7.60 | Available to order | 2 |
| 13 | T2200680 Bush, Rubber | Bush, Rubber | 2 | $5.47 | Available to order | 2 |
| 14 | T3010048 Flanged Sleeve, M8 x 12.4 x 17.2 | Flanged Sleeve, M8 x 12.4 x 17.2 | 2 | $12.32 | Available to order | 2 |
| 15 | 2200665-T0301 Bracket silencer | Bracket silencer | 2 | $10.37 | Obsolete | View Details |
| 16 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 4 | $2.79 | Available to order | 4 |
| 17 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc | 4 | $1.21 | Available to order | 4 |
| 18 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 3 | $5.20 | Available to order | 3 |
| 19 | T3330081 Bolt | Bolt » 29155 | 5 | $0.93 | Obsolete | View Details |
| 20 | T3300100 Rivet, Stainless | Rivet, Stainless | 8 | $1.84 | Available to order | 8 |
| 21 | T3950020 Badge | Badge | 2 | $21.91 | Available to order | 2 |
| 22 | T3300020 Rivet | Rivet | 8 | $0.71 | Available to order | 8 |
| 23 | T2200690 Heat shield | Heat shield » 42766 | 2 | $75.00 | Obsolete | View Details |
| 23 | T2200691 Heat shield | Heat shield 42767 » | 2 | $106.19 | Backorder — Early October 2026 | 2 |
| 24 | T2200290-G Catalytic converter | Catalytic converter US Cal » Engine No.43215 | 2 | $258.55 | Obsolete | View Details |
| 24 | T2200295-G Catalytic converter | Catalytic converter DE, All Vins CH & US Cal, Engine No.43216 » Engine No.55615 | 2 | $258.55 | Obsolete | View Details |
| 25 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv 29156 » | 2 | $3.93 | Available to order | 2 |
| 27 | T2200657 Silencer assembly | Silencer assembly » 16921 LH | 1 | $652.74 | Out of Stock | Notify Me |
| 27 | T2200651 Silencer assembly | Silencer assembly 16922 » » 42766 LH | 1 | $707.15 | Out of Stock | Notify Me |
| 27 | T2200652 Silencer assembly | Silencer assembly 42767 » » 62620 LH | 1 | $752.48 | Out of Stock | Notify Me |
| 27 | T2200678 Silencer assembly | Silencer assembly 62621 » LH | 1 | $661.82 | Out of Stock | Notify Me |
| 28 | T2200667 Silencer assembly | Silencer assembly » 16921 RH | 1 | $652.74 | Out of Stock | Notify Me |
| 28 | T2200661 Silencer assembly | Silencer assembly 16922 » » 42766 RH | 1 | $707.15 | Out of Stock | Notify Me |
| 28 | T2200662 Silencer assembly | Silencer assembly 42767 » » 62620 RH | 1 | $601.05 | Obsolete | View Details |
| 28 | T2200679 Silencer assembly | Silencer assembly 62621 » RH | 1 | $661.82 | Out of Stock | Notify Me |
