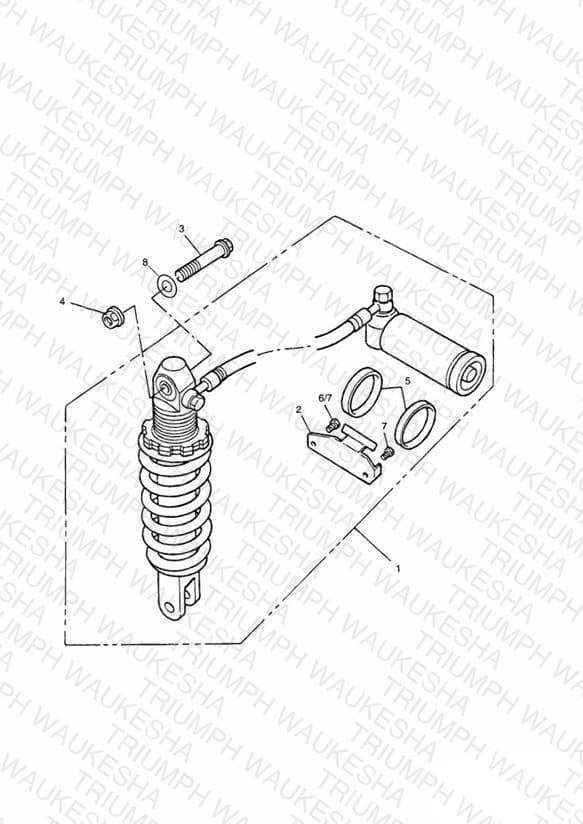

Rear Suspension Unit
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050630 Rear Suspension Unit | Rear Suspension Unit » 43397 - PART NO LONGER AVAILABLE | 1 | $917.72 | Obsolete | View Details |
| 2 | T2053035 Bracket | Bracket | 1 | $9.68 | Obsolete | View Details |
| 3 | T3334640 Screw, HHF, M12 x 60 | Screw, HHF, M12 x 60 | 1 | $6.15 | Available to order | 1 |
| 4 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 1 | $6.46 | Available to order | 1 |
| 5 | 3700080-T0301 Clip | Clip » 43397 | 2 | $10.30 | Obsolete | View Details |
| 5 | T2102231 Hose Clip, 32 x 50 | Hose Clip, 32 x 50 43398 » | 2 | $2.52 | Obsolete | View Details |
| 6 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv » 27447 | 1 | $2.91 | Available to order | 1 |
| 7 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv » 27447 | 1 | $1.04 | Available to order | 1 |
| 7 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv 27488 » (use both positions) | 2 | $1.84 | Available to order | 2 |
| 8 | T3550614 Washer, 12 x 23 x 2 | Washer, 12 x 23 x 2 | 1 | $1.04 | Available to order | 1 |
