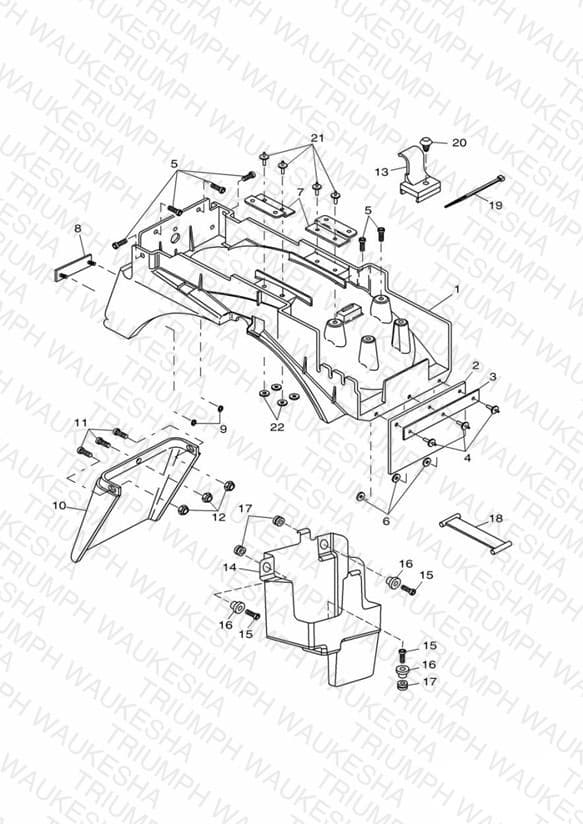

Rear Mudguard & Battery Box
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2301275 Rear mudguard | Rear mudguard ** Part No Longer Available ** | 1 | $379.82 | Obsolete | View Details |
| 2 | T2300449 Flap | Flap | 1 | $11.41 | Obsolete | View Details |
| 3 | T2300330 Clamp plate | Clamp plate | 1 | $4.65 | Available to order | 1 |
| 4 | T3300062 Pop Rivet | Pop Rivet | 3 | $2.40 | Available to order | 3 |
| 5 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 6 | $1.84 | Available to order | 6 |
| 6 | T3550135 Washer | Washer | 3 | $0.84 | Obsolete | View Details |
| 7 | T2070020 Bracket | Bracket » 87936 | 2 | $9.35 | Obsolete | View Details |
| 8 | T2700450 Reflector | Reflector Red US & CA All Vins SG » 110499 | 2 | $11.65 | Obsolete | View Details |
| 9 | T3500025 Spire nut | Spire nut US & CA All Vins SG » 110499 | 4 | $3.73 | Available to order | 4 |
| 10 | T2300335 Mudguard extension | Mudguard extension DE | 1 | $46.44 | Obsolete | View Details |
| 11 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv DE | 3 | $7.18 | Available to order | 3 |
| 12 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 DE | 3 | $2.40 | Available to order | 3 |
| 13 | T2301176 Shield | Shield » 87936 | 1 | $2.88 | Obsolete | View Details |
| 14 | T2500084 Battery box | Battery box | 1 | $39.92 | Available to order | 1 |
| 15 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 3 | $2.79 | Available to order | 3 |
| 16 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 3 | $6.15 | Available to order | 3 |
| 17 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 3 | $2.04 | Available to order | 3 |
| 18 | T2501740 Battery Strap | Battery Strap | 1 | $10.61 | Available to order | 1 |
| 19 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long » 87936 | 1 | $1.01 | Available to order | 1 |
| 20 | T3450266 Fir Tree Plug, Blk, 19mm long | Fir Tree Plug, Blk, 19mm long PART NO LONGER AVAILABLE | 1 | $1.25 | Obsolete | View Details |
