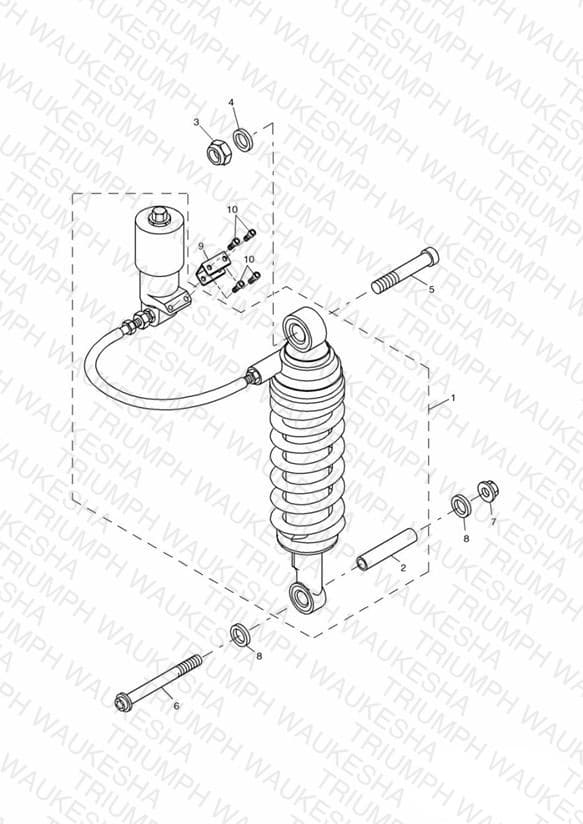

Rear Suspension Unit
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050315 Rear suspension unit | Rear suspension unit | 1 | $1190.02 | Obsolete | View Details |
| 2 | T2057965 Sleeve | Sleeve | 1 | $20.31 | Obsolete | View Details |
| 3 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 1 | $6.07 | Available to order | 1 |
| 4 | T3550614 Washer, 12 x 23 x 2 | Washer, 12 x 23 x 2 | 1 | $0.97 | Available to order | 1 |
| 5 | T3330455 Screw,torx | Screw,torx M12 X 64mm | 1 | $5.98 | Out of Stock | Notify Me |
| 6 | T3330131 Screw, Torx | Screw, Torx M10 x 111mm | 1 | $10.21 | Obsolete | View Details |
| 7 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 1 | $4.16 | Available to order | 1 |
| 8 | T3555028 Washer, 10.5 x 25 x 2 | Washer, 10.5 x 25 x 2 | 2 | $1.13 | Available to order | 2 |
| 9 | T2070734 Bracket | Bracket | 1 | $9.61 | Obsolete | View Details |
| 10 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 4 | $0.97 | Available to order | 4 |
