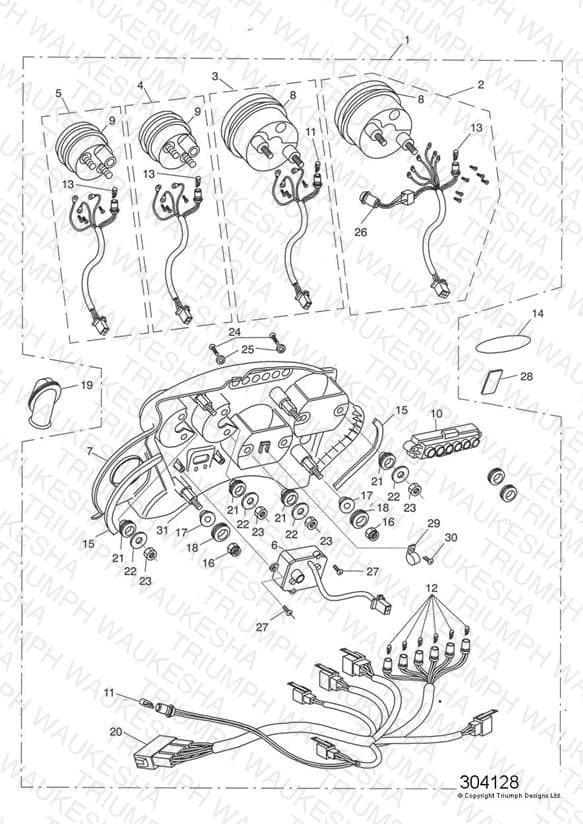

Instruments
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2501144 Instrument assembly | Instrument assembly MPH | 1 | $1452.91 | Obsolete | View Details |
| 1 | T2501149 Instrument assembly | Instrument assembly KPH | 1 | $1452.91 | Obsolete | View Details |
| 2 | T2504021 Speedometer | Speedometer MPH | 1 | $418.53 | Obsolete | View Details |
| 2 | T2504022 Speedometer | Speedometer KPH | 1 | $374.33 | Obsolete | View Details |
| 3 | T2504116 Gauge tachometer | Gauge tachometer | 1 | $350.17 | Obsolete | View Details |
| 4 | T2504204 Gauge temperature | Gauge temperature | 1 | $240.52 | Obsolete | View Details |
| 5 | T2504255 Gauge fuel | Gauge fuel | 1 | $262.90 | Available to order | 1 |
| 6 | T2504351 Clock | Clock Digital | 1 | $267.49 | Obsolete | View Details |
| 7 | T2502097 Facia | Facia | 1 | $175.72 | Out of Stock | Notify Me |
| 8 | T2500480 Seal rubber | Seal rubber | 2 | $34.93 | Obsolete | View Details |
| 9 | T2500481 Seal rubber | Seal rubber | 2 | $57.52 | Obsolete | View Details |
| 10 | T2504320 Warning lt unit | Warning lt unit | 1 | $91.17 | Obsolete | View Details |
| 11 | 2500085-T0301 Bulb | Bulb T6.5 - 1.7W Tachometer /Clock | 2 | $5.97 | Available to order | 2 |
| 12 | T2500090 Bulb | Bulb T6.5 - 3W Warning lamps | 6 | $6.54 | Available to order | 6 |
| 13 | 2500095-T0301 Bulb | Bulb T10 - 1.7W Speedometer/Fuel/Temperature Gauges | 3 | $6.54 | Available to order | 3 |
| 14 | T3900450 Badge, Oval, Plastic | Badge, Oval, Plastic | 1 | $9.09 | Backorder — Late October 2026 | 1 |
| 15 | T2501139 Facia trim | Facia trim | 2 | $11.30 | Obsolete | View Details |
| 16 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc | 4 | $1.21 | Available to order | 4 |
| 17 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $6.15 | Available to order | 4 |
| 18 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $3.04 | Available to order | 4 |
| 19 | T2501138 Cover | Cover PART NO LONGER AVAILABLE | 1 | $11.27 | Obsolete | View Details |
| 20 | T2501152 Harness instruments | Harness instruments | 1 | $136.77 | Obsolete | View Details |
| 21 | T2500479 Grommet | Grommet | 8 | $3.21 | Obsolete | View Details |
| 22 | T3350057 Washer, M5 | Washer, M5 | 8 | $1.84 | Available to order | 8 |
| 23 | T3350061 Nut, M5 | Nut, M5 | 8 | $1.84 | Available to order | 8 |
| 24 | T3330265 Screw | Screw M4 x 16mm | 2 | $3.61 | Available to order | 2 |
| 25 | T3330267 Washer | Washer | 2 | $6.54 | Available to order | 2 |
| 26 | T2501150 Button | Button | 1 | $42.21 | Obsolete | View Details |
| 27 | T2500402 Screw | Screw M4 | 2 | $3.21 | Obsolete | View Details |
| 28 | T2300983 Cover blanking | Cover blanking All except DE,ES,IT,JP,NL,SE & UK - All VINS DE,ES,IT,JP,NL,SE & UK »186150 | 1 | $12.22 | Available to order | 1 |
| 29 | T2501147 P Clip | P Clip | 1 | $2.75 | Obsolete | View Details |
| 30 | T2501148 Screw | Screw | 1 | $1.90 | Obsolete | View Details |
| 31 | T2501157 SETTING BOLT,INSTRUMENT ASSY | SETTING BOLT,INSTRUMENT ASSY | 1 | $5.80 | Obsolete | View Details |
