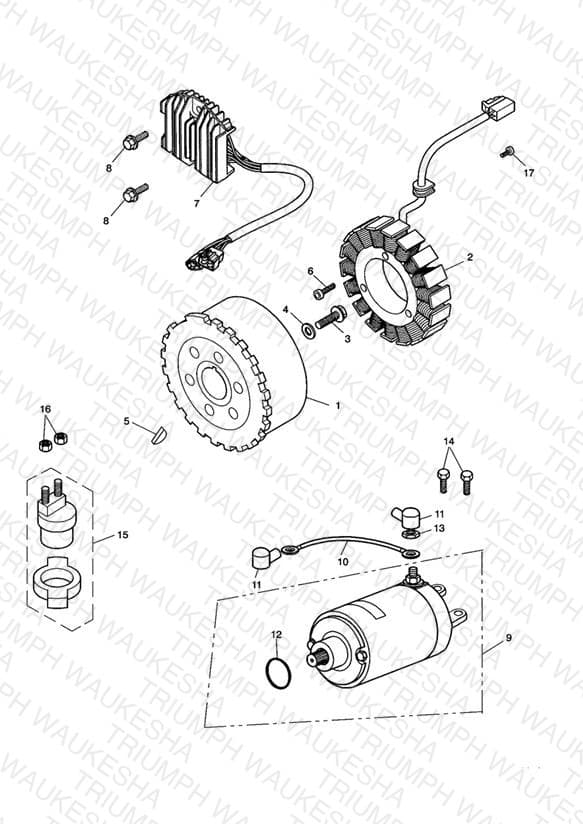

Alternator/Starter
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1300501 Rotor | Rotor Alternator | 1 | $985.79 | Available to order | 1 |
| 2 | T1300502 Stator | Stator Alternator | 1 | $486.70 | Obsolete | View Details |
| 3 | T3330831 Bolt, Cap HD, M12x40 | Bolt, Cap HD, M12x40 | 1 | $7.22 | Available to order | 1 |
| 4 | T3550846 Washer, M12 x 30 x 8 | Washer, M12 x 30 x 8 | 1 | $11.03 | Available to order | 1 |
| 5 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 6 | T3051081 Screw, Cap/HD, M6 x 40, Enc | Screw, Cap/HD, M6 x 40, Enc | 3 | $6.73 | Available to order | 3 |
| 7 | T1304040 Regulator Rectifier, 40A | Regulator Rectifier, 40A | 1 | $440.08 | Out of Stock | Notify Me |
| 8 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 9 | T1311119 Starter Motor | Starter Motor | 1 | $524.00 | Available to order | 1 |
| 10 | T2500453 Cable | Cable **Part No Longer Available** | 1 | $63.59 | Obsolete | View Details |
| 11 | T2500459 Boot, 90 Deg | Boot, 90 Deg | 2 | $4.07 | Obsolete | View Details |
| 12 | T3600115 O Ring | O Ring | 1 | $3.39 | Backorder — Mid September 2026 | 1 |
| 13 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 14 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 15 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 17 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 1 | $0.97 | Available to order | 1 |
| 18 | 1310009-T0301 Terminal Kit, Starter Solenoid | Terminal Kit, Starter Solenoid Not Illustrated | 1 | $12.63 | Backorder — Late August 2026 | 1 |
