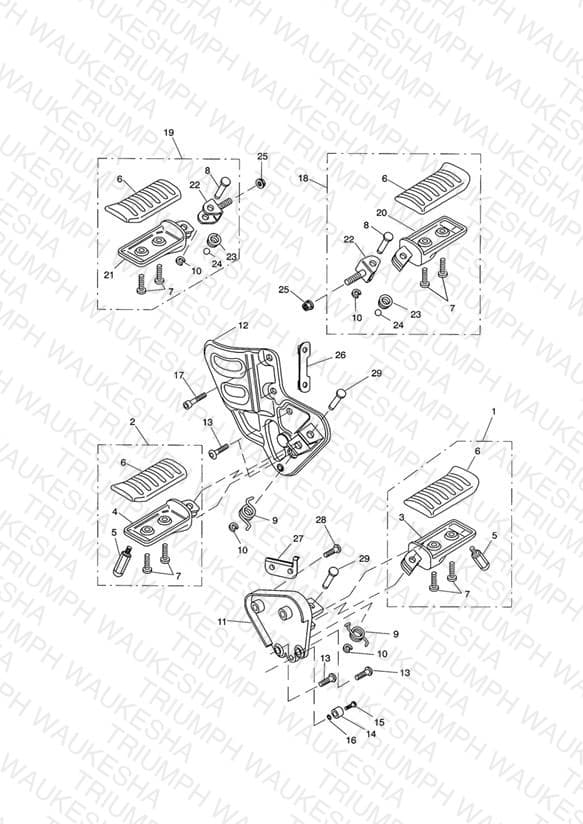

Footrests & Control Plates
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2082403 Footrest Assy, Front, LH | Footrest Assy, Front, LH LH * PART NO LONGER AVAILABLE * | 1 | $107.14 | Obsolete | View Details |
| 2 | T2080486 Footrest assembly front | Footrest assembly front RH * PART NO LONGER AVAILABLE * | 1 | $115.38 | Obsolete | View Details |
| 3 | T2080425 Footrest | Footrest LH | 1 | $67.86 | Available to order | 1 |
| 4 | T2080426 Footrest | Footrest RH | 1 | $67.47 | Available to order | 1 |
| 5 | 2080104-T0301 Peg | Peg | 2 | $13.66 | Obsolete | View Details |
| 6 | T2080227 Pedal rubber | Pedal rubber * PART NO LONGER AVAILABLE * | 4 | $71.63 | Out of Stock | Notify Me |
| 7 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv | 8 | $5.69 | Available to order | 8 |
| 8 | T2080721 Pivot Pin, Footrest | Pivot Pin, Footrest | 2 | $6.45 | Available to order | 2 |
| 9 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.29 | Available to order | 2 |
| 10 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 | 4 | $2.14 | Available to order | 4 |
| 11 | T2080464 Control plate lh | Control plate lh Painted | 1 | $95.68 | Obsolete | View Details |
| 12 | T2080466 Control plate rh | Control plate rh Painted | 1 | $104.87 | Obsolete | View Details |
| 13 | T3330040 Screw | Screw M8 x 65mm | 4 | $2.99 | Obsolete | View Details |
| 14 | T2070859 Bumpstop | Bumpstop | 1 | $6.01 | Obsolete | View Details |
| 15 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 1 | $0.97 | Available to order | 1 |
| 16 | T3555555 Washer, Nylon | Washer, Nylon | 1 | $1.62 | Backorder — Late August 2026 | 1 |
| 17 | T2080475 Pin | Pin | 1 | $2.89 | Obsolete | View Details |
| 18 | T2082401 Rear Footrest Assy, LH | Rear Footrest Assy, LH LH | 1 | $81.44 | Obsolete | View Details |
| 19 | T2082402 Rear Footrest Assy, RH | Rear Footrest Assy, RH RH | 1 | $83.35 | Obsolete | View Details |
| 20 | T2080427 Footrest | Footrest LH | 1 | $67.47 | Available to order | 1 |
| 21 | T2080428 Footrest | Footrest RH | 1 | $67.47 | Available to order | 1 |
| 22 | 2080024-T0301 Pivot bracket | Pivot bracket | 2 | $17.88 | Obsolete | View Details |
| 23 | T2080724 Spring, Footrest (Rear) | Spring, Footrest (Rear) | 2 | $2.10 | Available to order | 2 |
| 24 | T2080725 Detent Ball | Detent Ball | 2 | $1.72 | Available to order | 2 |
| 25 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 2 | $4.16 | Available to order | 2 |
| 26 | T2080479 Bracket | Bracket All except DE,ES,IT,JP,NL,NZ,SE & UK - All VINS DE,ES,IT,JP,NL,NZ,SE & UK »186150 | 1 | $10.19 | Obsolete | View Details |
| 27 | T2080419 Bracket | Bracket All except DE,ES,IT,JP,NL,NZ,SE & UK - All VINS DE,ES,IT,JP,NL,NZ,SE & UK »186150 | 1 | $10.19 | Obsolete | View Details |
| 28 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 1 | $5.30 | Available to order | 1 |
