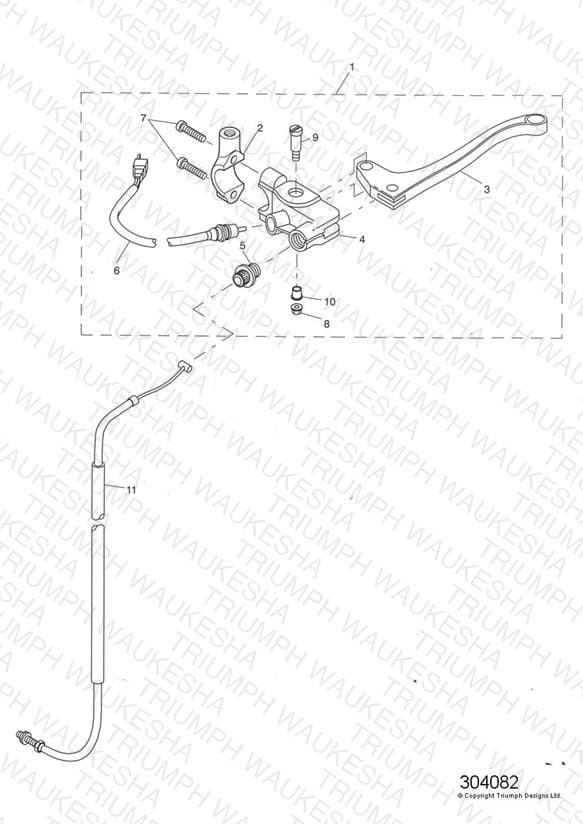

Control Cables
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046528 Lever Assy, Cable Clutch, BLK | Lever Assy, Cable Clutch, BLK | 1 | $117.18 | Obsolete | View Details |
| 2 | T2025450 Clamp, Clutch Lever Bracket | Clamp, Clutch Lever Bracket | 1 | $31.94 | Available to order | 1 |
| 3 | T2046501 Clutch lever | Clutch lever ** Part No Longer Available ** | 1 | $51.44 | Obsolete | View Details |
| 4 | T2046505 Bracket | Bracket | 1 | $33.62 | Obsolete | View Details |
| 5 | T2046520 Adjuster Screw | Adjuster Screw | 1 | $8.53 | Available to order | 1 |
| 6 | T2505005 Switch assembly | Switch assembly | 1 | $21.13 | Backorder — Early August 2026 | 1 |
| 7 | T2046522 Bolt, Handlebar Clamp | Bolt, Handlebar Clamp | 2 | $2.00 | Available to order | 2 |
| 8 | T3350012 Locknut, Flgd, M6, Black, Zinc | Locknut, Flgd, M6, Black, Zinc M6 | 1 | $1.13 | Available to order | 1 |
| 9 | T2046516 Pivot bolt | Pivot bolt *Part No Longer Available* | 1 | $15.15 | Obsolete | View Details |
| 10 | T3010062 Flanged Sleeve, M6 x 7.8 x 2.85 | Flanged Sleeve, M6 x 7.8 x 2.85 | 1 | $7.14 | Available to order | 1 |
| 11 | T2040462 Clutch cable | Clutch cable | 1 | $52.03 | Available to order | 1 |
