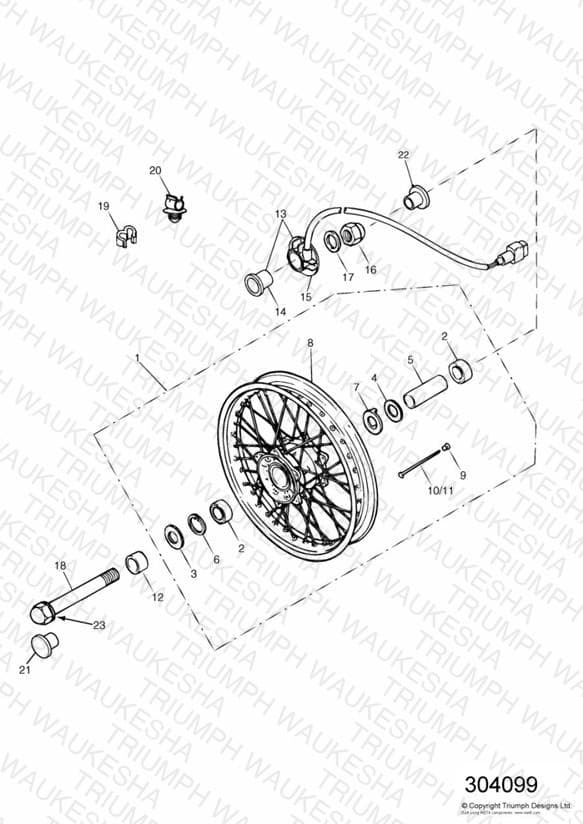

Front Wheel
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2004004 Wheel | Wheel Front Stainless Spokes | 1 | $946.97 | Obsolete | View Details |
| 2 | T3800701 Bearing, Ball, 17 47 14 | Bearing, Ball, 17 47 14 | 2 | $27.13 | Available to order | 2 |
| 3 | T3600705 Oil Seal, 35 47 6 | Oil Seal, 35 47 6 | 1 | $9.69 | Available to order | 1 |
| 4 | T3600706 Seal, Oil, DC 55 73 6 | Seal, Oil, DC 55 73 6 | 1 | $9.69 | Available to order | 1 |
| 5 | 2004290-T0301 Spacer inner | Spacer inner | 1 | $43.14 | Obsolete | View Details |
| 6 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.95 | Available to order | 1 |
| 7 | T2001111 Drive Ring, Speedo | Drive Ring, Speedo *Part No Longer Available* | 1 | $18.28 | Obsolete | View Details |
| 8 | T2000087 Wheel rim | Wheel rim | 1 | $510.84 | Obsolete | View Details |
| 9 | T2004390 Nipple, Spoke | Nipple, Spoke | 36 | $6.81 | Available to order | 36 |
| 10 | T2004352 Spoke | Spoke Inner | 18 | $8.52 | Out of Stock | Notify Me |
| 11 | T2004353 Spoke | Spoke Outer | 18 | $6.27 | Available to order | 18 |
| 12 | T2004296 Spacer | Spacer | 1 | $11.45 | Available to order | 1 |
| 13 | T2004210 Speedo drive assembly | Speedo drive assembly | 1 | $204.20 | Obsolete | View Details |
| 14 | T2004220 Sleeve | Sleeve *PART NO LONGER AVAILABLE* | 1 | $19.51 | Obsolete | View Details |
| 15 | T2001200 Speedo drive assembly | Speedo drive assembly Electric | 1 | $192.18 | Available to order | 1 |
| 16 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 » 141582 M16 | 2 | $10.02 | Available to order | 2 |
| 17 | T3555032 Washer, 17 x 30 x 3 | Washer, 17 x 30 x 3 » 141582 M14 | 1 | $3.37 | Available to order | 1 |
| 18 | T2001284 Spindle assy | Spindle assy » 141582 | 1 | $118.98 | Out of Stock | Notify Me |
| 18 | T2001281 Spindle assy | Spindle assy 141583 » | 1 | $83.59 | Obsolete | View Details |
| 19 | T3700061 Clip, Cable Double | Clip, Cable Double | 2 | $5.65 | Available to order | 2 |
| 20 | T3700082 Firtree | Firtree | 1 | $2.91 | Backorder — Mid October 2026 | 1 |
| 21 | T3450499 Bung Hole, Dia 9, Black | Bung Hole, Dia 9, Black 141583 » 9mm dia Black | 1 | $10.84 | Available to order | 1 |
| 22 | T3450183 Bung, Hole, Dia 7.0, Blk | Bung, Hole, Dia 7.0, Blk 141583 » 7mm dia Black | 1 | $8.79 | Available to order | 1 |
