Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics
Loading schematic...

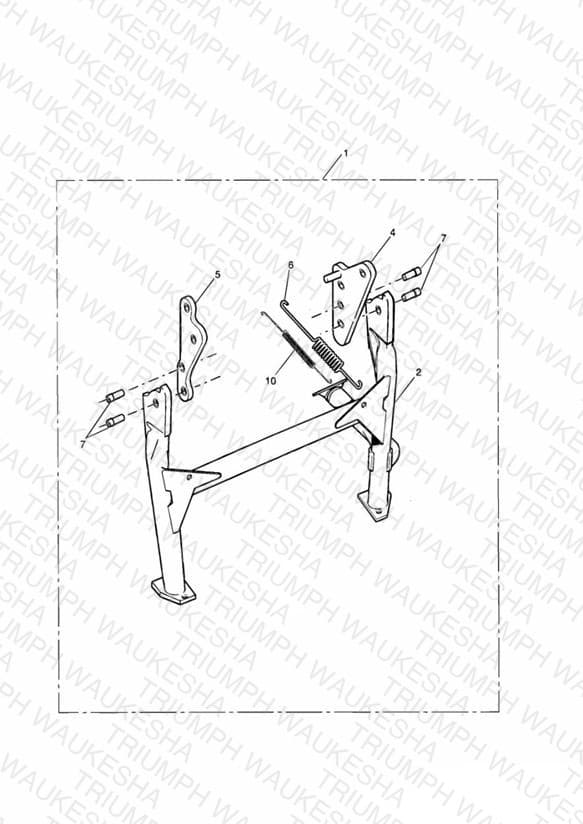

Centrestand
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9758007 Centrestand Kit | Centrestand Kit | 1 | $95.00 | Obsolete | View Details |
| 2 | T2080856 CENTRESTAND,ASSY | CENTRESTAND,ASSY | 1 | $245.24 | Available to order | 1 |
| 4 | T2080857 MOUNTING BRACKET,LH | MOUNTING BRACKET,LH | 1 | $26.87 | Available to order | 1 |
| 5 | T2080858 MOUNTING BRACKET,RH | MOUNTING BRACKET,RH | 1 | $18.09 | Obsolete | View Details |
| 6 | A2079312 Spring | Spring Outer | 1 | $2.25 | Obsolete | View Details |
| 7 | A3330109 Screw | Screw M10 | 4 | $10.50 | Obsolete | View Details |
| 8 | A9650001 Grease | Grease Not shown pictorially | 1 | $3.78 | Available to order | 1 |
| 10 | A2079311 Spring | Spring Inner | 1 | $2.70 | Available to order | 1 |
| 11 | A9930042 Bush | Bush Not shown pictorially | 2 | $2.70 | Available to order | 2 |
