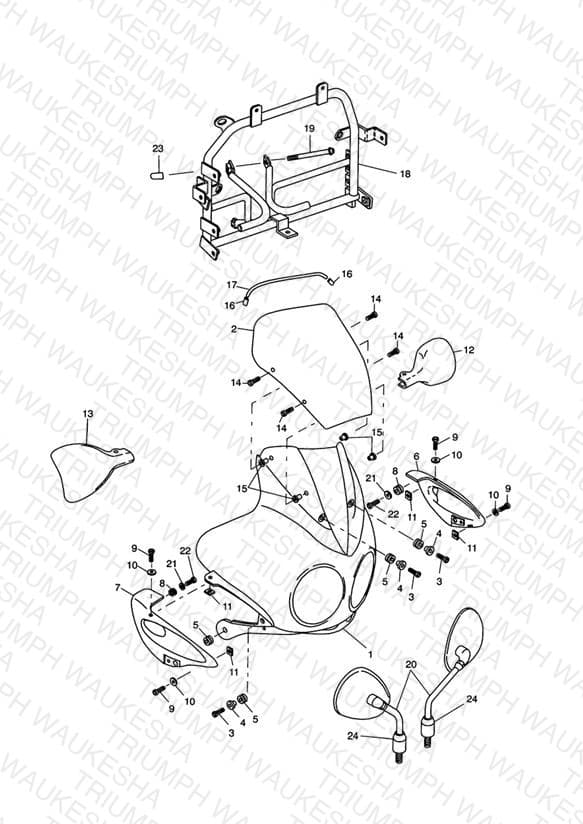

Cockpit
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2301701-HA Cockpit Replaced by T2301702-HA — Cockpit | Cockpit | 1 | $418.46 | Unavailable | View Details |
| 1 | T2301701-ED Cockpit Replaced by T2301702-ED — Cockpit | Cockpit | 1 | $418.46 | Unavailable | View Details |
| 1 | T2301701-MH Cockpit Replaced by T2301702-MH — Cockpit | Cockpit | 1 | $418.46 | Unavailable | View Details |
| 1 | T2301701-JD Cockpit, Caspian Blue | Cockpit, Caspian Blue | 1 | $472.44 | Obsolete | View Details |
| 1 | T2301671-PG Cockpit, Jet Black | Cockpit, Jet Black | 1 | $472.44 | Obsolete | View Details |
| 1 | T2301702-HA Cockpit | Cockpit US, TW & CA ONLY | 1 | $374.26 | Obsolete | View Details |
| 1 | T2301702-ED Cockpit | Cockpit US, TW & CA ONLY | 1 | $374.26 | Obsolete | View Details |
| 1 | T2301702-MH Cockpit | Cockpit US, TW & CA ONLY | 1 | $392.98 | Obsolete | View Details |
| 1 | T2301702-JD Cockpit, Caspian Blue | Cockpit, Caspian Blue US, TW & CA Only | 1 | $392.98 | Obsolete | View Details |
| 1 | T2301672-PG Cockpit, Jet Black | Cockpit, Jet Black US, TW & CA Only | 1 | $472.44 | Obsolete | View Details |
| 2 | T2301687 Screen | Screen | 1 | $232.45 | Obsolete | View Details |
| 2 | T2301686 Screen | Screen US, TW & CA ONLY | 1 | $232.45 | Obsolete | View Details |
| 3 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 4 | $3.61 | Available to order | 4 |
| 4 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $6.15 | Available to order | 4 |
| 5 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 6 | $2.04 | Available to order | 6 |
| 6 | T2301684 Moulding | Moulding | 1 | $98.75 | Obsolete | View Details |
| 7 | T2301685 Moulding | Moulding | 1 | $107.98 | Available to order | 1 |
| 8 | T3020460 Grommet | Grommet | 2 | $3.04 | Available to order | 2 |
| 9 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 4 | $7.18 | Available to order | 4 |
| 10 | T3555555 Washer, Nylon | Washer, Nylon | 4 | $1.73 | Backorder — Mid October 2026 | 4 |
| 11 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 4 | $2.63 | Available to order | 4 |
| 12 | T2301678 Knuckle guard | Knuckle guard | 1 | $45.61 | Available to order | 1 |
| 13 | T2301679 Knuckle guard | Knuckle guard | 1 | $46.11 | Available to order | 1 |
| 14 | T3330635 Screw, M5 X 16, Plastic | Screw, M5 X 16, Plastic | 4 | $0.40 | Available to order | 4 |
| 15 | T3350050 Wellnut, M5 | Wellnut, M5 | 4 | $7.08 | Available to order | 4 |
| 16 | T3700057 Trim clip | Trim clip | 2 | $1.68 | Obsolete | View Details |
| 17 | T3660019 Edge trim | Edge trim | 1 | $12.41 | Backorder — Mid October 2026 | 1 |
| 18 | T2301728 Subframe, Cockpit | Subframe, Cockpit | 1 | $498.63 | Out of Stock | Notify Me |
| 19 | T3330041 Screw | Screw | 2 | $11.45 | Available to order | 2 |
| 20 | T2300537-P Mirror Assy | Mirror Assy | 2 | $129.99 | Available to order | 2 |
| 21 | T3555023 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 | 2 | $1.36 | Available to order | 2 |
| 22 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 2 | $4.15 | Available to order | 2 |
| 23 | T3450140 Tip | Tip | 2 | $1.50 | Out of Stock | Notify Me |
| 24 | T2300595 Knockback Cover, Mirror | Knockback Cover, Mirror | 2 | $8.37 | Available to order | 2 |
