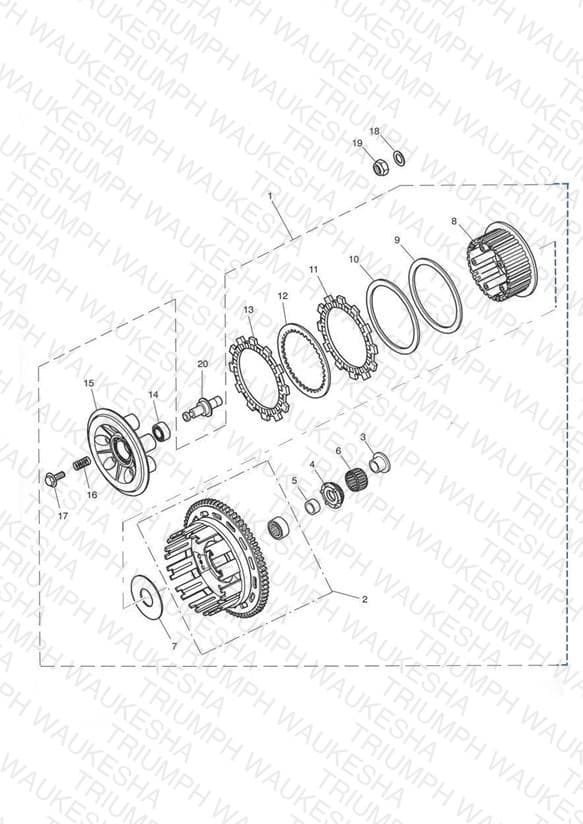

Clutch > Eng No 232538
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1170938 Clutch assembly | Clutch assembly | 1 | $924.83 | Obsolete | View Details |
| 2 | T1170940 Drum | Drum Outer | 1 | $422.46 | Available to order | 1 |
| 3 | T1174900 Bush, Sprocket | Bush, Sprocket | 1 | $8.46 | Out of Stock | Notify Me |
| 4 | T1170943 Sprocket, Auxillary Drive | Sprocket, Auxillary Drive | 1 | $176.81 | Out of Stock | Notify Me |
| 5 | T1170012 Bush, Clutch | Bush, Clutch | 1 | $25.05 | Obsolete | View Details |
| 6 | T1175200 Bearing, Needle, K32 x 37 x 13 | Bearing, Needle, K32 x 37 x 13 | 1 | $19.57 | Available to order | 1 |
| 7 | T1170941 Thrust washer | Thrust washer | 1 | $5.69 | Available to order | 1 |
| 8 | T1170952 Centre Drum, Clutch | Centre Drum, Clutch | 1 | $341.51 | Available to order | 1 |
| 9 | T1170723 Seat, Judder Sprint | Seat, Judder Sprint | 1 | $22.82 | Available to order | 1 |
| 10 | T1170912 Spring, Judder | Spring, Judder | 1 | $29.24 | Available to order | 1 |
| 11 | T1170716 Friction disc B | Friction disc B | 2 | $29.97 | Available to order | 2 |
| 12 | T1170714 Clutch plate | Clutch plate | 8 | $22.92 | Available to order | 8 |
| 13 | T1170713 Disc, Friction, Clutch, A | Disc, Friction, Clutch, A | 7 | $29.97 | Available to order | 7 |
| 14 | T3800012 Bearing Ball | Bearing Ball | 1 | $45.12 | Available to order | 1 |
| 15 | T1170780 Plate, Clutch Pressure | Plate, Clutch Pressure | 1 | $250.98 | Available to order | 1 |
| 16 | T1170934 Spring | Spring | 5 | $5.29 | Obsolete | View Details |
| 17 | T1170719 Bolt, M6 X 25 | Bolt, M6 X 25 | 5 | $1.60 | Unavailable | View Details |
| 18 | T1179999 Washer, C, Clutch | Washer, C, Clutch | 1 | $11.71 | Available to order | 1 |
| 19 | T1170192 Nut, Clutch, M22 | Nut, Clutch, M22 | 1 | $12.29 | Available to order | 1 |
| 20 | T1175149 Lifter Piece, Clutch BG | Lifter Piece, Clutch BG | 1 | $55.55 | Obsolete | View Details |
