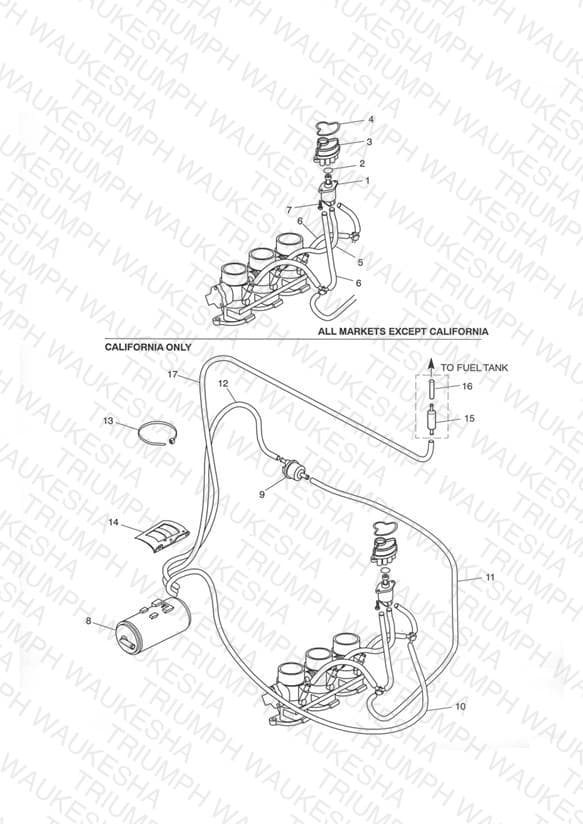

Evaporative System
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240888 Stepper motor | Stepper motor ** PART NO LONGER AVAILABLE ** | 1 | $145.81 | Obsolete | View Details |
| 2 | T3600037 O ring | O ring | 1 | $1.51 | Available to order | 1 |
| 3 | T1241064 Housing, Idle Speed Control Valve | Housing, Idle Speed Control Valve PART NO LONGER AVAILABLE | 1 | $48.08 | Obsolete | View Details |
| 4 | T1241063 Grommet, Idle Speed Control Valve | Grommet, Idle Speed Control Valve | 1 | $9.03 | Available to order | 1 |
| 5 | T1242502 Tube | Tube | 1 | $24.05 | Available to order | 1 |
| 6 | T1242501 Tube | Tube | 2 | $24.05 | Available to order | 2 |
| 7 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 8 | T2400160 Carbon Canister | Carbon Canister | 1 | $56.07 | Obsolete | View Details |
| 9 | T1240802 Purge Valve, EFI | Purge Valve, EFI | 1 | $58.02 | Unavailable | View Details |
| 10 | T1242507 Tube assembly | Tube assembly | 1 | $23.87 | Obsolete | View Details |
| 11 | T1242508 Tube assembly | Tube assembly | 1 | $23.87 | Obsolete | View Details |
| 12 | T1242511 Tube | Tube | 1 | $16.08 | Obsolete | View Details |
| 13 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 5 | $0.95 | Available to order | 5 |
| 14 | T2400164 Canister bracket | Canister bracket | 1 | $21.83 | Obsolete | View Details |
| 15 | T2401135 Kit, Valve, Roll Over | Kit, Valve, Roll Over > Eng No 257350 | 1 | $47.33 | Out of Stock | Notify Me |
| 15 | T2400074 Roll Over Valve | Roll Over Valve Eng No 257351 > | 1 | $40.30 | Available to order | 1 |
| 16 | T3622503 Pipe, Fuel, 40mm | Pipe, Fuel, 40mm | 1 | $3.70 | Available to order | 1 |
| 17 | T1242538 Tube assembly | Tube assembly > Eng No 257350 | 1 | $23.72 | Obsolete | View Details |
| 17 | T1241606 Hose, Evap | Hose, Evap Eng No 257351 | 1 | $23.32 | Obsolete | View Details |
