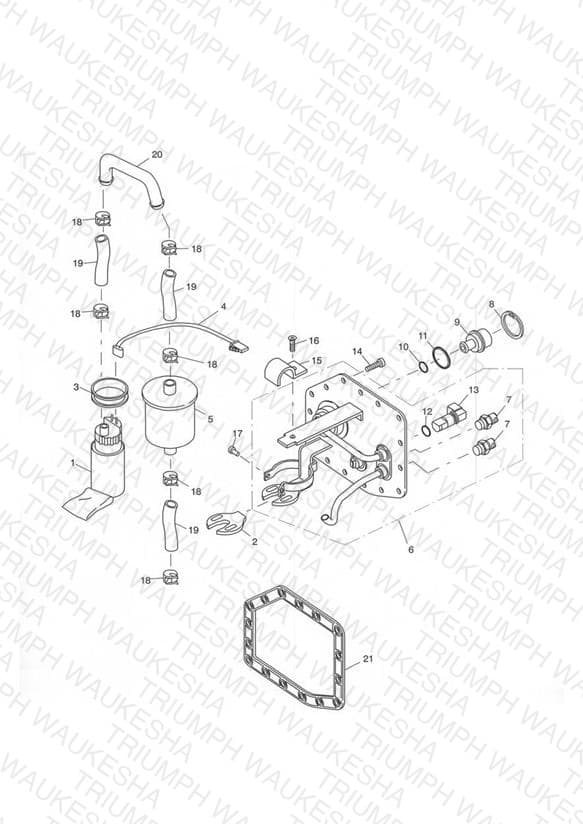

Fuel Pump & Filter > Eng No 207446
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240911 Fuel Pump, EFI | Fuel Pump, EFI | 1 | $264.04 | Available to order | 1 |
| 2 | T1247557 Cushion, Fuel Pump | Cushion, Fuel Pump | 1 | $9.03 | Available to order | 1 |
| 3 | T1240866 Anti Vibration Ring | Anti Vibration Ring | 1 | $2.79 | Obsolete | View Details |
| 4 | T1240847 Fly Lead, Fuel Pump | Fly Lead, Fuel Pump | 1 | $23.95 | Available to order | 1 |
| 5 | T1240850 Fuel Filter | Fuel Filter | 1 | $68.07 | Available to order | 1 |
| 6 | T1241057 Fuel Pump Plate Assy | Fuel Pump Plate Assy | 1 | $320.40 | Available to order | 1 |
| 7 | T1240868 Connector, Fuel Line | Connector, Fuel Line | 2 | $56.07 | Available to order | 2 |
| 8 | T3500038 Circlip | Circlip | 1 | $2.37 | Available to order | 1 |
| 9 | T1240856 Regulator, Fuel Pressure | Regulator, Fuel Pressure **PART NO LONGER AVAILABLE** | 1 | $75.03 | Obsolete | View Details |
| 10 | T3600039 O RING, 5 x 2.5 | O RING, 5 x 2.5 | 1 | $2.25 | Available to order | 1 |
| 11 | T3600038 O RING, 20 x 2.5 | O RING, 20 x 2.5 | 1 | $1.91 | Available to order | 1 |
| 12 | T3600052 O ring | O ring | 1 | $3.24 | Available to order | 1 |
| 13 | T1240867 Electrical Connector Assy | Electrical Connector Assy | 1 | $13.33 | Available to order | 1 |
| 14 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 14 | $3.24 | Available to order | 14 |
| 15 | T1242055 Clamp | Clamp | 1 | $1.51 | Available to order | 1 |
| 16 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw | 1 | $1.47 | Available to order | 1 |
| 17 | T3332130 Bolt, H/HD, M4 x 16, Slv | Bolt, H/HD, M4 x 16, Slv | 1 | $0.57 | Out of Stock | Notify Me |
| 18 | T3700089 Hose Clip, Dia 12.5 | Hose Clip, Dia 12.5 | 6 | $4.01 | Available to order | 6 |
| 19 | T3620395 Fuel Hose, 45mm | Fuel Hose, 45mm | 3 | $9.88 | Available to order | 3 |
| 20 | T1242056 PIPE, 8.0mm x 1.0 | PIPE, 8.0mm x 1.0 | 1 | $12.46 | Available to order | 1 |
| 21 | T1241054 Seal, Mounting Plate | Seal, Mounting Plate | 1 | $60.87 | Available to order | 1 |
