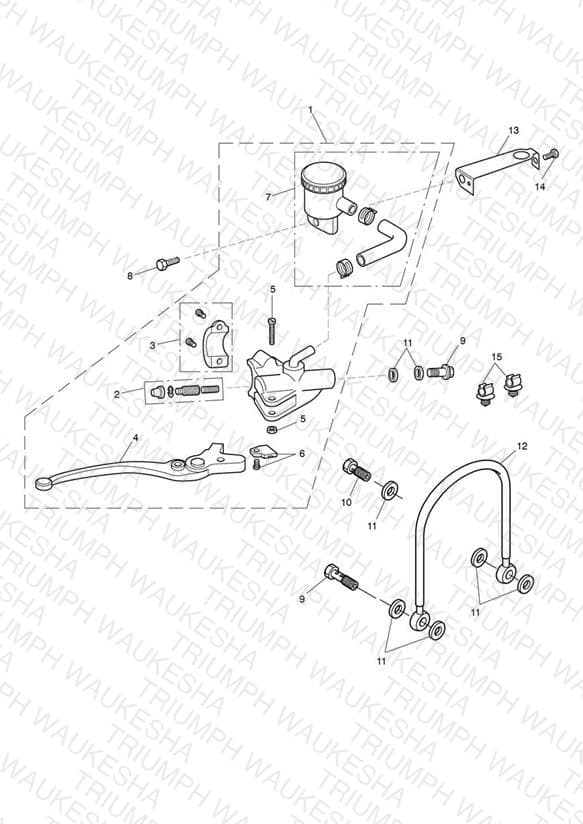

Front Brake Master Cylinder & Hoses
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2025640 Front Brake Lever Assembly | Front Brake Lever Assembly | 1 | $265.17 | Available to order | 1 |
| 2 | T2020294 Piston Set, M.Cyl 15.875 | Piston Set, M.Cyl 15.875 | 1 | $51.31 | Available to order | 1 |
| 3 | T2025411 Clamp Set | Clamp Set | 1 | $33.93 | Available to order | 1 |
| 4 | T2025441 Lever Assy | Lever Assy | 1 | $87.92 | Available to order | 1 |
| 5 | T2020158 Lever, Bolt, Front M/Cyl | Lever, Bolt, Front M/Cyl | 1 | $13.56 | Available to order | 1 |
| 6 | T2021217 Switch Set | Switch Set | 1 | $24.43 | Available to order | 1 |
| 7 | T2026221 M/Cyl Reservoir Assy, Front | M/Cyl Reservoir Assy, Front | 1 | $125.46 | Available to order | 1 |
| 8 | T3205062 Bolt, HHF, Lghtd, M6 x 12, Slv | Bolt, HHF, Lghtd, M6 x 12, Slv | 1 | $4.19 | Available to order | 1 |
| 9 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 2 | $7.02 | Available to order | 2 |
| 10 | T3250019 Bolt, Banjo, M10 x 31 | Bolt, Banjo, M10 x 31 | 1 | $6.29 | Available to order | 1 |
| 11 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 7 | $1.07 | Available to order | 7 |
| 12 | T2025154 Brake Hose, Link | Brake Hose, Link | 1 | $52.29 | Out of Stock | Notify Me |
| 13 | T2041092 Bracket, Reservoir | Bracket, Reservoir | 1 | $23.76 | Available to order | 1 |
| 14 | T3050141 Bolt, H/HD, M10 x 16 | Bolt, H/HD, M10 x 16 | 1 | $3.17 | Available to order | 1 |
| 15 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 2 | $5.88 | Available to order | 2 |
