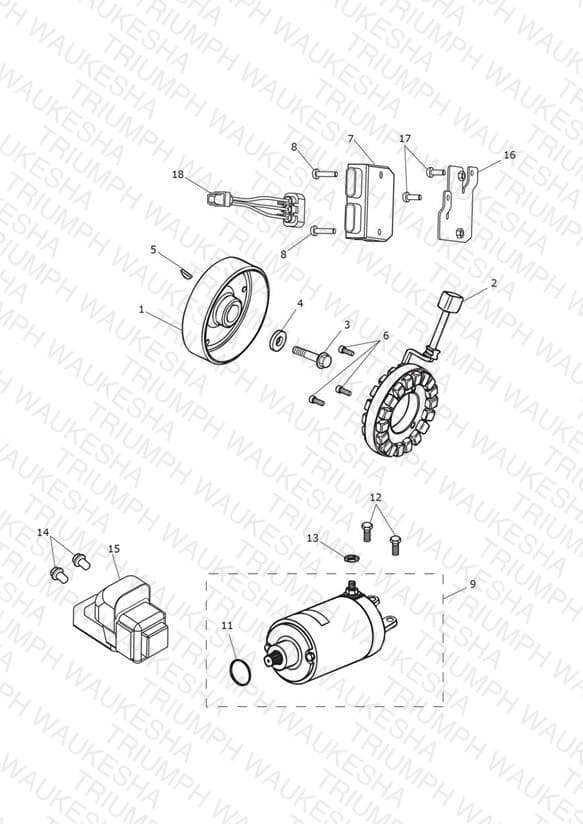

Starter & Alternator
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1300113 Rotor, Alternator, Rare Earth | Rotor, Alternator, Rare Earth | 1 | $985.79 | Backorder — Mid August 2026 | 1 |
| 2 | T1300111 Stator, Alternator, 550mm Lead | Stator, Alternator, 550mm Lead | 1 | $566.24 | Available to order | 1 |
| 3 | T3208888 Bolt, Radial Feed, M12 x 40 | Bolt, Radial Feed, M12 x 40 | 1 | $14.46 | Available to order | 1 |
| 4 | T3550846 Washer, M12 x 30 x 8 | Washer, M12 x 30 x 8 | 1 | $11.03 | Available to order | 1 |
| 5 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 6 | T3051081 Screw, Cap/HD, M6 x 40, Enc | Screw, Cap/HD, M6 x 40, Enc | 3 | $6.73 | Available to order | 3 |
| 7 | T1300679 Regulator Rectifier | Regulator Rectifier | 1 | $412.16 | Available to order | 1 |
| 8 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 9 | T1311114 Starter Motor | Starter Motor | 1 | $862.09 | Available to order | 1 |
| 11 | T3600115 O Ring | O Ring | 1 | $3.39 | Backorder — Mid September 2026 | 1 |
| 12 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 13 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 14 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $4.88 | Available to order | 2 |
| 15 | T1310115 Solenoid | Solenoid | 1 | $68.42 | Available to order | 1 |
| 16 | T1300680 Bracket, Regulator Rectifier | Bracket, Regulator Rectifier | 1 | $24.43 | Out of Stock | Notify Me |
| 17 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.63 | Available to order | 2 |
| 18 | T2500953 Link Lead, Alternator | Link Lead, Alternator | 1 | $17.11 | Available to order | 1 |
