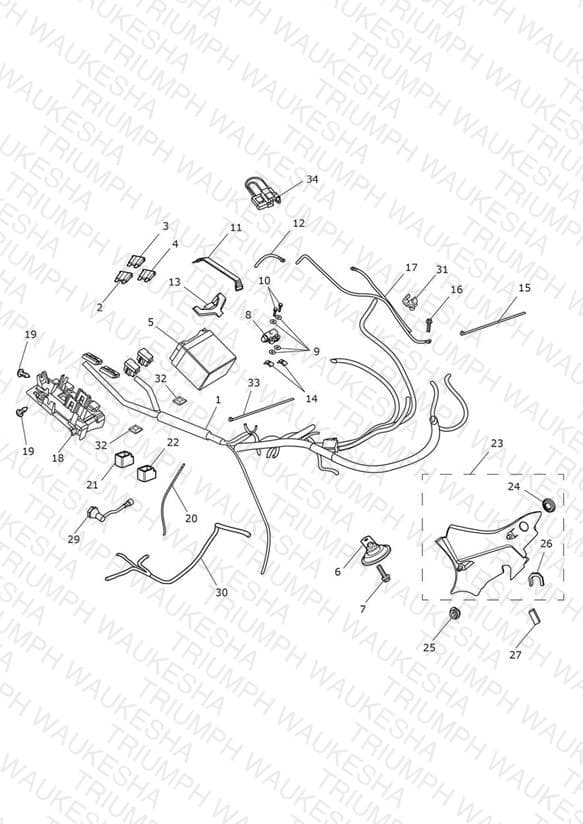

Electrical Equipment
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2502164 Harness, Main, ABS | Harness, Main, ABS > 670283 All Expt BR; > 670661 BR Only | 1 | $806.86 | Out of Stock | Notify Me |
| 2 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 2 | $5.05 | Available to order | 2 |
| 3 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 8 | $5.05 | Available to order | 8 |
| 4 | T2501320 Fuse, Mini, 20A | Fuse, Mini, 20A | 6 | $5.05 | Available to order | 6 |
| 5 | T2500182 Battery | Battery All Markets Except BR/EF/ER/GR | 1 | $119.50 | Available to order | 1 |
| 5 | T2502513 Battery Multipack (10) | Battery Multipack (10) All Markets Except BR - (10 x T2500182) | 1 | $1141.21 | Out of Stock | Notify Me |
| 5 | T2506721 Kit, Battery, YTX14-BS | Kit, Battery, YTX14-BS EF/ER/GR Markets Only | 1 | $136.98 | Out of Stock | Notify Me |
| 5 | T2504602 Spares Kit, Battery | Spares Kit, Battery BR Only | 1 | $155.31 | Out of Stock | Notify Me |
| 6 | T2500113 Horn Assembly, Hi Tone | Horn Assembly, Hi Tone | 1 | $41.82 | Available to order | 1 |
| 7 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.91 | Available to order | 1 |
| 8 | T2502405 Switch, Fall Detection | Switch, Fall Detection | 1 | $77.49 | Available to order | 1 |
| 9 | T3551066 Washer, 4.3 x 12.0 x 1.0 | Washer, 4.3 x 12.0 x 1.0 | 4 | $1.73 | Out of Stock | Notify Me |
| 10 | T3330390 Screw, H/Hd, M4 x 25, Slv, Enc | Screw, H/Hd, M4 x 25, Slv, Enc | 2 | $2.91 | Available to order | 2 |
| 11 | T2501740 Battery Strap | Battery Strap | 1 | $10.61 | Available to order | 1 |
| 12 | T2502180 Lead, Battery, Positive | Lead, Battery, Positive | 1 | $36.58 | Out of Stock | Notify Me |
| 13 | T2502161 Cover, Battery Terminals | Cover, Battery Terminals | 1 | $11.31 | Out of Stock | Notify Me |
| 14 | T3351093 Nut, Captive, M4 | Nut, Captive, M4 | 2 | $4.84 | Available to order | 2 |
| 15 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 5 | $0.95 | Available to order | 5 |
| 16 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.84 | Available to order | 1 |
| 17 | T2502185 Lead, Earth & Starter | Lead, Earth & Starter | 1 | $69.97 | Out of Stock | Notify Me |
| 18 | T2506300 Moulding, ECU Bracket | Moulding, ECU Bracket | 1 | $26.68 | Out of Stock | Notify Me |
| 19 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 2 | $1.29 | Available to order | 2 |
| 20 | T2501716 Link Lead, Oxygen Sensor | Link Lead, Oxygen Sensor | 1 | $17.02 | Out of Stock | Notify Me |
| 21 | T2507727 Relay, Normally Open | Relay, Normally Open | 4 | $20.87 | Available to order | 4 |
| 22 | T2507728 Relay, Changeover | Relay, Changeover | 1 | $19.19 | Available to order | 1 |
| 23 | T2309973 Cover, Engine | Cover, Engine | 1 | $83.02 | Backorder — Mid October 2026 | 1 |
| 24 | T2306941 Blanking Plug, 27.5mm | Blanking Plug, 27.5mm | 1 | $1.91 | Backorder — Early October 2026 | 1 |
| 25 | T3020029 Grommet, Side Panel | Grommet, Side Panel | 1 | $2.71 | Available to order | 1 |
| 26 | T2307973 Trim Cover, Engine | Trim Cover, Engine | 1 | $2.40 | Out of Stock | Notify Me |
| 27 | T3660106 Foam pad | Foam pad | 1 | $3.45 | Available to order | 1 |
| 29 | T2501615 Flylead, Oil Pressure Switch | Flylead, Oil Pressure Switch US CAL Only | 1 | $11.31 | Available to order | 1 |
| 30 | T2500898 Rear Subharness, Lighting | Rear Subharness, Lighting | 1 | $83.94 | Available to order | 1 |
| 31 | T3700061 Clip, Cable Double | Clip, Cable Double | 2 | $5.65 | Available to order | 2 |
| 32 | T3700370 Cable Tie Holder, 21 x 21, White | Cable Tie Holder, 21 x 21, White > 670283 | 3 | $2.24 | Available to order | 3 |
| 33 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long > 670283 | 1 | $1.01 | Available to order | 1 |
| 34 | T2503436 Auxiliary Fly Lead, Japan | Auxiliary Fly Lead, Japan JP Only - 682880 > | 1 | $26.29 | Available to order | 1 |
