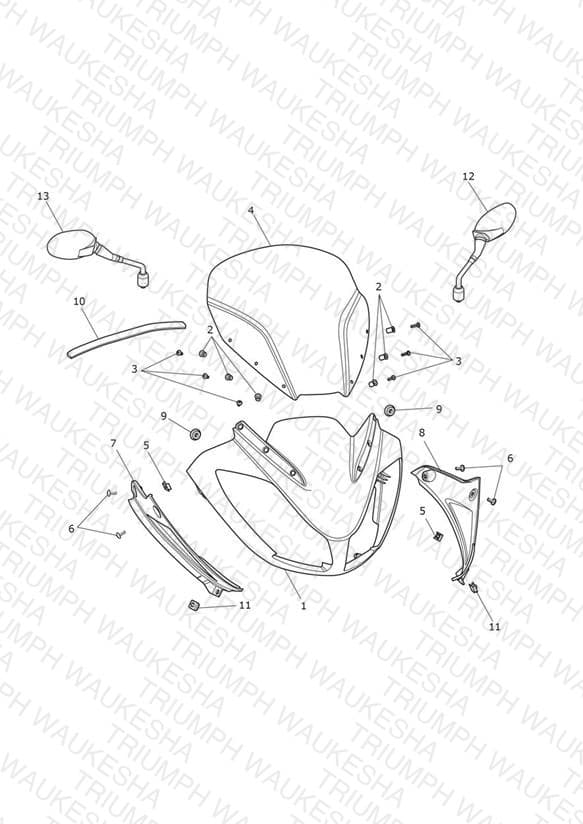

Cockpit
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2306909-NW Cockpit | Cockpit Crystal White > 657552 | 1 | $836.04 | Backorder — Early August 2026 | 1 |
| 1 | T2306919-NW Cockpit | Cockpit Crystal White - 657553 > 713760 | 1 | $836.04 | Out of Stock | Notify Me |
| 1 | T2306909-CW Cockpit | Cockpit Diablo Red > 657552 | 1 | $836.04 | Available to order | 1 |
| 1 | T2306919-CW Cockpit | Cockpit Diablo Red - 657553 > | 1 | $836.04 | Out of Stock | Notify Me |
| 1 | T2306919-PR Cockpit | Cockpit Phantom Black - 713761 > | 1 | $836.04 | Out of Stock | Notify Me |
| 2 | T3350050 Wellnut, M5 | Wellnut, M5 | 6 | $6.65 | Available to order | 6 |
| 3 | T3330646 Screw, Phillips, M5 x 16, Plastic | Screw, Phillips, M5 x 16, Plastic | 6 | $1.27 | Available to order | 6 |
| 4 | T2306735 Screen | Screen Screen Std - 378mm - All Markets Except US, & CA | 1 | $197.72 | Out of Stock | Notify Me |
| 4 | T2306774 Screen | Screen Screen Std - 378mm - US & CA Only | 1 | $146.79 | Obsolete | View Details |
| 4 | T2306711 Screen Touring | Screen Touring Screen Tall - 405mm - All Markets Except US, & CA | 1 | $227.65 | Backorder — Late August 2026 | 1 |
| 4 | T2306712 Screen, Touring | Screen, Touring Screen Tall - 405mm - US & CA Only | 1 | — | Obsolete | View Details |
| 5 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 2 | $4.36 | Available to order | 2 |
| 6 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 4 | $6.73 | Available to order | 4 |
| 7 | T2306737 Cockpit Side Moulding, RH | Cockpit Side Moulding, RH > 713760 | 1 | $74.12 | Out of Stock | Notify Me |
| 7 | T2306849-CW Cockpit Side, Painted, RH | Cockpit Side, Painted, RH Diablo Red - 713761 > | 1 | $129.00 | Backorder — Late August 2026 | 1 |
| 7 | T2306849-PR Cockpit Side, Painted, RH | Cockpit Side, Painted, RH Phantom Black - 713761 > | 1 | $95.57 | Unavailable | View Details |
| 8 | T2306738 Cockpit Side Moulding, LH | Cockpit Side Moulding, LH > 713760 | 1 | $74.12 | Available to order | 1 |
| 8 | T2306843-CW Cockpit Side, Painted, LH | Cockpit Side, Painted, LH Diablo Red - 713761 > | 1 | $129.00 | Out of Stock | Notify Me |
| 8 | T2306843-PR Cockpit Side, Painted, LH | Cockpit Side, Painted, LH Phantom Black - 713761 > | 1 | $129.00 | Out of Stock | Notify Me |
| 9 | T3020135 Rubber Grommet | Rubber Grommet | 2 | $1.91 | Available to order | 2 |
| 10 | T3660225 Rubber Strip, 215 X 15 X 1mm | Rubber Strip, 215 X 15 X 1mm | 1 | $8.25 | Obsolete | View Details |
| 11 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 2 | $1.79 | Available to order | 2 |
| 12 | T2060240 Mirror Assy, LH | Mirror Assy, LH | 1 | $134.99 | Available to order | 1 |
| 13 | T2060241 Mirror Assy, RH | Mirror Assy, RH | 1 | $134.99 | Available to order | 1 |
| 14 | T2300595 Knockback Cover, Mirror | Knockback Cover, Mirror | 1 | $7.87 | Available to order | 1 |
