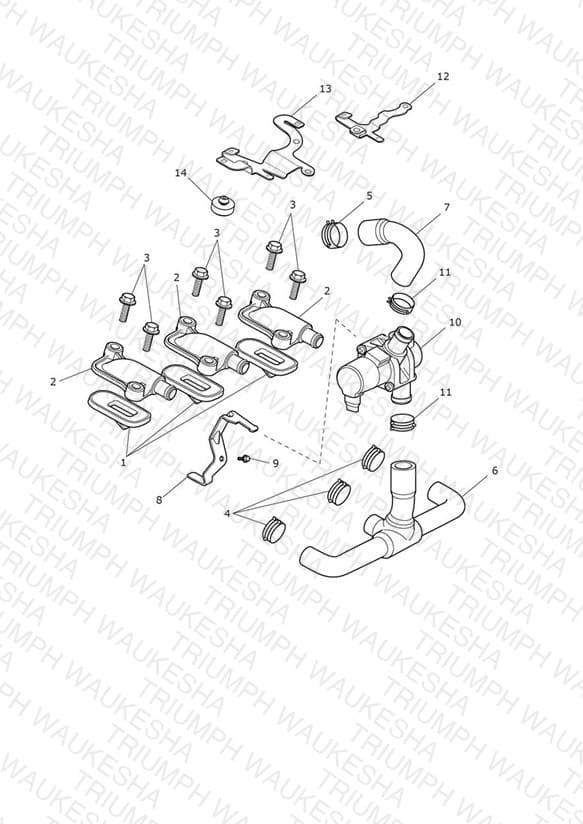

Emissions Control
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1250151 Reed Valve | Reed Valve | 3 | $59.87 | Available to order | 3 |
| 2 | T1255555 Cover, Reed Valve | Cover, Reed Valve | 3 | $36.58 | Available to order | 3 |
| 3 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 6 | $4.55 | Available to order | 6 |
| 4 | T3700051 Hose Clip, Dia 18.1-20 x 8mm | Hose Clip, Dia 18.1-20 x 8mm | 3 | $2.25 | Out of Stock | Notify Me |
| 5 | T3700050 Hose Clip, Dia 19.5-22 x 8mm | Hose Clip, Dia 19.5-22 x 8mm | 1 | $3.77 | Available to order | 1 |
| 6 | T1250201 Hose, Sai, Vulcanised | Hose, Sai, Vulcanised | 1 | $27.83 | Out of Stock | Notify Me |
| 7 | T1250202 Hose, Sai, Formed | Hose, Sai, Formed | 1 | $13.01 | Available to order | 1 |
| 8 | T1250203 Bracket, Sai, Solenoid | Bracket, Sai, Solenoid | 1 | $20.05 | Available to order | 1 |
| 9 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 1 | $0.97 | Available to order | 1 |
| 10 | T1250204 Valve, Solenoid Assy | Valve, Solenoid Assy | 1 | $98.85 | Available to order | 1 |
| 12 | T2503456 Bracket, Harness, LH | Bracket, Harness, LH | 1 | $17.21 | Out of Stock | Notify Me |
| 13 | T2503458 Bracket, Harness, RH | Bracket, Harness, RH | 1 | $17.21 | Out of Stock | Notify Me |
| 14 | T2081697 Up Stop, Sidestand | Up Stop, Sidestand | 1 | $9.88 | Available to order | 1 |
