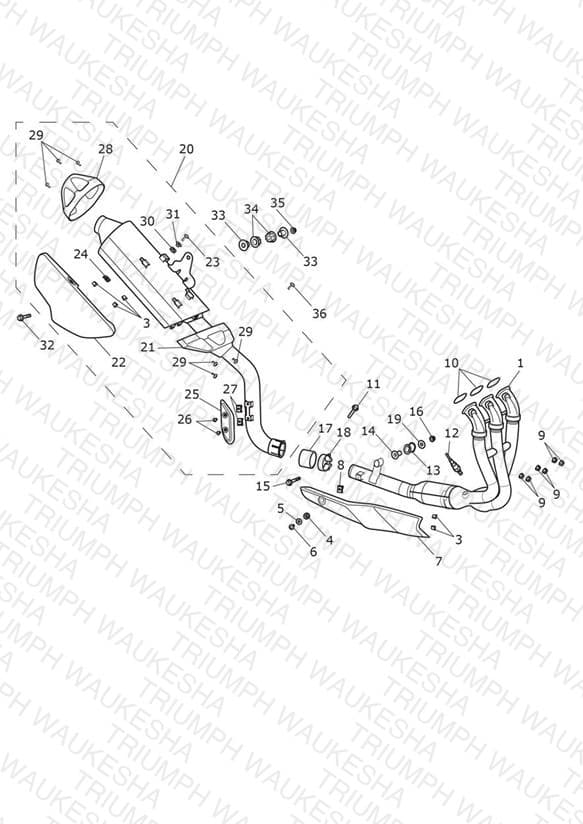

Exhaust System
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2204917 Header Assembly | Header Assembly All Except AU, JP, NZ - All Vins & ZA Only - 967729 > | 1 | $1251.11 | Out of Stock | Notify Me |
| 1 | T2204916 Exhaust Assembly | Exhaust Assembly AU, JP, NZ - All Vins & ZA Only > 967728 | 1 | $1251.11 | Out of Stock | Notify Me |
| 3 | T2204745 Grommet, Secondary Cvr Brkt | Grommet, Secondary Cvr Brkt | 5 | $2.79 | Available to order | 5 |
| 4 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 1 | $2.24 | Backorder — Early October 2026 | 1 |
| 5 | T3010704 Sleeve, Flanged, 5.3 x 9 x 6.5 | Sleeve, Flanged, 5.3 x 9 x 6.5 | 1 | $2.31 | Available to order | 1 |
| 6 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 1 | $7.18 | Available to order | 1 |
| 7 | T2204456 Finisher, Exhaust Assembly | Finisher, Exhaust Assembly | 1 | $97.02 | Out of Stock | Notify Me |
| 8 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 1 | $2.63 | Available to order | 1 |
| 9 | T3350301 Nut, Flanged, M8, Silver | Nut, Flanged, M8, Silver | 6 | $0.86 | Available to order | 6 |
| 10 | T2200326 Exhaust Pipe Sealing Ring | Exhaust Pipe Sealing Ring | 3 | $7.90 | Available to order | 3 |
| 11 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 1 | $1.29 | Available to order | 1 |
| 12 | T2204191 Oxygen Sensor Spares Kit | Oxygen Sensor Spares Kit | 1 | $210.95 | Available to order | 1 |
| 13 | T2200912 Rubber Grommet, 7.86mm | Rubber Grommet, 7.86mm | 1 | $3.37 | Out of Stock | Notify Me |
| 14 | T3010212 Flanged Sleeve, M8 x 26.6 | Flanged Sleeve, M8 x 26.6 | 1 | $2.63 | Available to order | 1 |
| 15 | T3202307 Bolt, HHF, M8 x 50, Slv | Bolt, HHF, M8 x 50, Slv | 1 | $7.08 | Available to order | 1 |
| 16 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 1 | $2.61 | Available to order | 1 |
| 17 | T2202115 Gasket, Exhaust Header | Gasket, Exhaust Header | 1 | $13.46 | Available to order | 1 |
| 18 | T2208431 Clamp, Exhaust, ID 53.3 | Clamp, Exhaust, ID 53.3 | 1 | $13.01 | Available to order | 1 |
| 19 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 1 | $2.91 | Available to order | 1 |
| 20 | T2202490 Silencer Assy, Exhaust | Silencer Assy, Exhaust | 1 | $897.53 | Backorder — Mid October 2026 | 1 |
| 21 | T2200927 Cover Silencer, Entry | Cover Silencer, Entry | 1 | $104.49 | Out of Stock | Notify Me |
| 22 | T2204461 Silencer, Finisher, Black | Silencer, Finisher, Black | 1 | $92.37 | Backorder — Mid October 2026 | 1 |
| 23 | T3338991 Screw, But/Hd, M5 x 20, S/S | Screw, But/Hd, M5 x 20, S/S | 1 | $6.98 | Available to order | 1 |
| 25 | T2200869 Cover, Secondary, Brushed | Cover, Secondary, Brushed | 1 | $82.12 | Available to order | 1 |
| 26 | T3330356 Screw, M5 x 10, S/S, Enc | Screw, M5 x 10, S/S, Enc | 2 | $6.46 | Out of Stock | Notify Me |
| 27 | T3350107 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $5.35 | Available to order | 2 |
| 28 | T2200929 Cover, Silencer, Exit | Cover, Silencer, Exit | 1 | $104.49 | Available to order | 1 |
| 29 | T3338383 Screw, Pan/Hd, Tx, M6 x 12, S/S | Screw, Pan/Hd, Tx, M6 x 12, S/S | 6 | $1.50 | Available to order | 6 |
| 31 | T3010124 Flange Sleeve, M5 | Flange Sleeve, M5 | 1 | $2.31 | Available to order | 1 |
| 32 | T3205109 Bolt, HHF, Lghtd, M8 x 45, Slv | Bolt, HHF, Lghtd, M8 x 45, Slv | 1 | $5.45 | Available to order | 1 |
| 33 | T3010705 Flanged Sleeve, 8.4 x 12.4 x 13.8 | Flanged Sleeve, 8.4 x 12.4 x 13.8 | 2 | $11.12 | Available to order | 2 |
| 34 | T2200622 Bush, Rubber, M8 | Bush, Rubber, M8 | 2 | $2.40 | Available to order | 2 |
| 36 | T3338990 Screw, But/Hd, M5 x 20, S/S | Screw, But/Hd, M5 x 20, S/S Heatshield Screw | 1 | $6.81 | Out of Stock | Notify Me |
