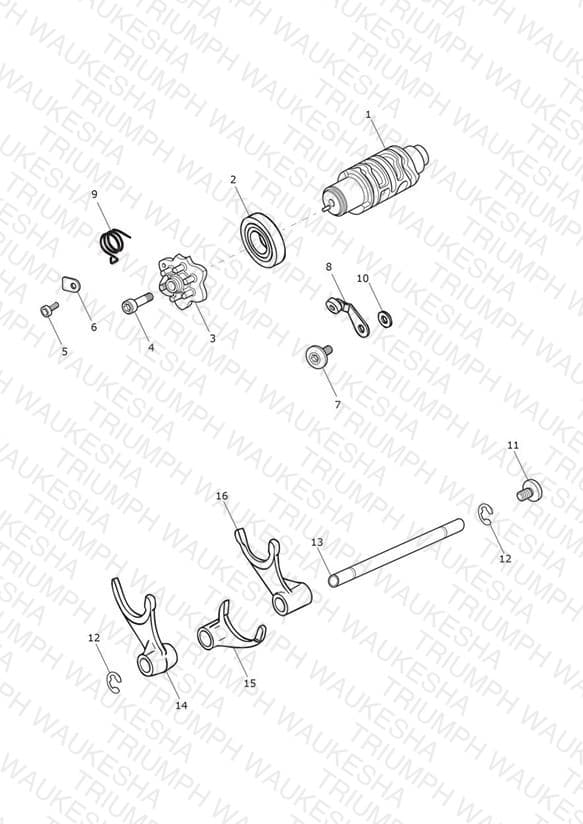

Gear Selector Drum
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1190137 Selector Drum Assy | Selector Drum Assy | 1 | $40.67 | Available to order | 1 |
| 2 | T3050302 Capscrew, Skt/Hd, M6 x 35 | Capscrew, Skt/Hd, M6 x 35 | 1 | $1.21 | Available to order | 1 |
| 3 | T1190293 Detend Wheel, Pivot, Gearchange | Detend Wheel, Pivot, Gearchange > Eng No 867673 All Except BR & > 867320 BR Only | 1 | $40.47 | Out of Stock | Notify Me |
| 3 | T1190294 Detent Wheel | Detent Wheel Eng No 867674 > All Except BR & 867321 > BR Only | 1 | $40.47 | Out of Stock | Notify Me |
| 4 | T3800090 Bearing Ball, Unshld, 20x42x8 | Bearing Ball, Unshld, 20x42x8 | 1 | $7.62 | Available to order | 1 |
| 5 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 1 | $1.27 | Available to order | 1 |
| 6 | T1190207 Keeper Plate | Keeper Plate | 1 | $20.60 | Available to order | 1 |
| 7 | T3050188 Bolt, Pan/HD, Shld, M6 x 16.2 | Bolt, Pan/HD, Shld, M6 x 16.2 | 1 | $0.89 | Available to order | 1 |
| 8 | T1190115 Detent Arm Assy | Detent Arm Assy | 1 | $17.80 | Available to order | 1 |
| 9 | T1190677 Spring, Detent Lever | Spring, Detent Lever > Eng No 867673 All Except BR & > 867320 BR Only | 1 | $4.92 | Available to order | 1 |
| 9 | T1190678 Spring, Detent Lever | Spring, Detent Lever Eng No 867674 > All Except BR & 867321 > BR Only | 1 | $4.92 | Available to order | 1 |
| 10 | T3550228 Washer, Hardened, 6.4 x 12.5 x 2 | Washer, Hardened, 6.4 x 12.5 x 2 | 1 | $1.72 | Out of Stock | Notify Me |
| 11 | T3450000 Plug, PTF-SAE Short, 3/8-18, Enc | Plug, PTF-SAE Short, 3/8-18, Enc | 1 | $6.65 | Available to order | 1 |
| 12 | T3500044 E Circlip | E Circlip | 2 | $0.97 | Available to order | 2 |
| 13 | T1191424 Shaft, Selector, Sliding | Shaft, Selector, Sliding | 1 | $39.63 | Backorder — Early August 2026 | 1 |
| 14 | T1197000 Fork, A, Selector, Output | Fork, A, Selector, Output | 1 | $125.46 | Available to order | 1 |
| 15 | T1191006 Fork, B, Selector, Input | Fork, B, Selector, Input | 1 | $98.85 | Available to order | 1 |
| 16 | T1198000 Fork, C, Selector, Output | Fork, C, Selector, Output | 1 | $125.46 | Available to order | 1 |
