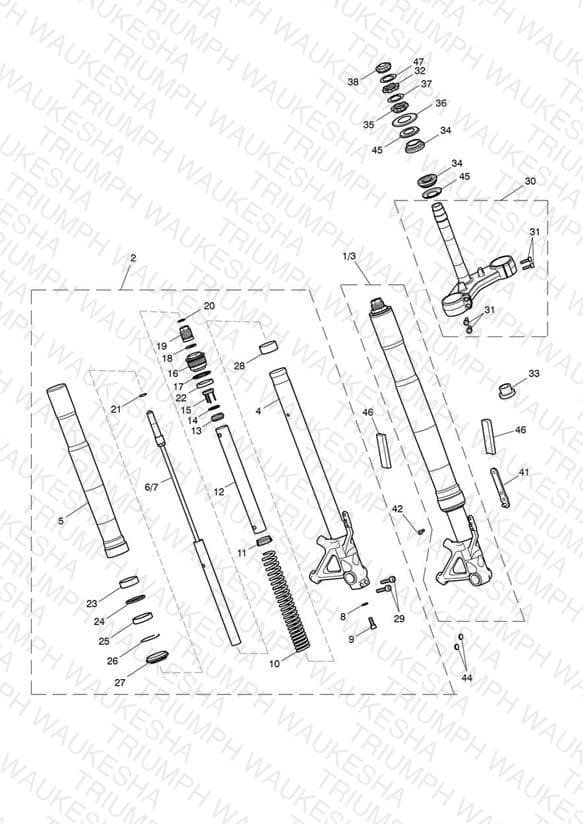

Triumph Tiger Front Forks & Yokes — OEM Parts Diagram

Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics

Loading schematic...

What riders say about Triumph Waukesha

4.9 out of 5 based on 175 reviews

View all reviews →

“Thanks.”

B. BOUTET · SANTA MARIA, CA · Apr 2026

“So far excellent”

K. Colmark · Pharr, TX · Mar 2026

“great shop. easy to search/navigate for parts”

B. Hobratschk · Buda, TX · Feb 2026

“Very Smooth”

D. Haynes · GREENBACKVILLE, VA · Feb 2026

“Great inventory!”

S. Saenz · IDAHO FALLS, ID · Feb 2026

“This is my favorite Triumph OEM store on the planet”

C. Bozonier · VENTURA, CA · Jan 2026

#	Part Number	Description	Qty	Price	Status
1	T2046317 Kit, Fork Leg, LH	Kit, Fork Leg, LH > 788206; All Except BR & > 778472; BR Only	1	$1196.67	Out of Stock	Notify Me
1	T2046314 Stanchion Assembly, LH	Stanchion Assembly, LH 788207 > All Except BR & 778473 > BR Only	1	$1178.59	Out of Stock	Notify Me
2	T2046318 Kit, Fork Leg, RH	Kit, Fork Leg, RH > 788206; All Except BR & > 778472; BR Only	1	$1196.67	Out of Stock	Notify Me
2	T2046312 Stanchion Assembly, RH	Stanchion Assembly, RH 788207 > All Except BR & 778473 > BR Only	1	$1178.59	Out of Stock	Notify Me
3	T2045251 Tube, Inner, LH	Tube, Inner, LH	1	$562.07	Out of Stock	Notify Me
4	T2045261 Tube Inner, RH	Tube Inner, RH	1	$562.07	Out of Stock	Notify Me
5	T2045271 Tube, Outer	Tube, Outer	2	$543.98	Out of Stock	Notify Me
6	T2045256 Damper, Comp, LH	Damper, Comp, LH	1	$507.70	Out of Stock	Notify Me
7	T2045266 Damper, Comp, RH	Damper, Comp, RH	1	$625.56	Out of Stock	Notify Me
8	T2042907 Sealing washer	Sealing washer	2	$1.21	Available to order	2 Ships within 3–7 business days
9	T2046164 Capscrew, Oil Lock	Capscrew, Oil Lock	2	$9.69	Available to order	2 Ships within 3–7 business days
10	T2045218 Spring	Spring	2	$11.19	Obsolete	View Details
11	T2046166 Spring Seat	Spring Seat	2	$19.94	Out of Stock	Notify Me
12	T2045217 Spacer Tube, Spring	Spacer Tube, Spring	2	$179.41	Available to order	2 Ships within 3–7 business days
13	T2046178 Slider	Slider	2	$13.66	Out of Stock	Notify Me
14	T2046219 Washer, Flat	Washer, Flat	2	$9.21	Available to order	2 Ships within 3–7 business days
15	T2046220 Spring, Adj Plate, Comp	Spring, Adj Plate, Comp	2	$2.14	Available to order	2 Ships within 3–7 business days
16	T2046221 Top Cap	Top Cap	2	$68.08	Out of Stock	Notify Me
17	T2046222 O Ring, Top Cap	O Ring, Top Cap	2	$3.04	Available to order	2 Ships within 3–7 business days
18	T2046223 O Ring, Spring, Adj, Outer	O Ring, Spring, Adj, Outer	2	$2.91	Available to order	2 Ships within 3–7 business days
19	T2046194 Spring Adjuster	Spring Adjuster	2	$30.02	Available to order	2 Ships within 3–7 business days
20	T2046225 O Ring, Spring, Adj, Inner	O Ring, Spring, Adj, Inner	2	$2.91	Available to order	2 Ships within 3–7 business days
21	T2046226 Ring Clip	Ring Clip	2	$1.73	Available to order	2 Ships within 3–7 business days
22	T2046197 Seat, rubber	Seat, rubber	2	$6.15	Backorder — Mid October 2026	2
23	T2045094 Bush, Guide, Outer	Bush, Guide, Outer	2	$13.01	Available to order	2 Ships within 3–7 business days
24	T2046246 Seal, Spacer	Seal, Spacer	2	$6.37	Backorder — Late September 2026	2
25	T2048424 Oil Seal	Oil Seal	2	$23.16	Available to order	2 Ships within 3–7 business days
26	T2046248 Stop Ring	Stop Ring	2	$7.28	Available to order	2 Ships within 3–7 business days
27	T2041524 Kit, Dust Seals, Pair	Kit, Dust Seals, Pair > 788206; All Except BR & > 778472; BR Only - Comprises of 2 x T2041542	1	$44.69	Available to order	1 Ships within 3–7 business days
27	T2041542 Dust Seal	Dust Seal 788207 > All Except BR & 778473 > BR Only	2	$20.76	Available to order	2 Ships within 3–7 business days
28	T2045095 Bush, Slide, Inner	Bush, Slide, Inner	2	$13.01	Available to order	2 Ships within 3–7 business days
29	T2040429 Pinch Bolt, S6 Fork	Pinch Bolt, S6 Fork	2	$6.37	Available to order	2 Ships within 3–7 business days
30	T2041562 Yoke Assy, Lower	Yoke Assy, Lower	1	$417.04	Out of Stock	Notify Me
31	T3050323 Screw, Cap/Hd, M8 x 30, Slv	Screw, Cap/Hd, M8 x 30, Slv	4	$5.05	Available to order	4 Ships within 3–7 business days
32	T2040442 Nut, Upper Yoke	Nut, Upper Yoke	1	$26.02	Available to order	1 Ships within 3–7 business days
33	T3450060 Cap	Cap	1	$1.50	Available to order	1 Ships within 3–7 business days
34	T3800091 Bearing, Sac	Bearing, Sac	2	$33.94	Available to order	2 Ships within 3–7 business days
35	T2040301 Adjuster Nut, M30, Lower	Adjuster Nut, M30, Lower	1	$28.50	Available to order	1 Ships within 3–7 business days
36	T2046559 Cover, Headstock Bearing	Cover, Headstock Bearing	1	$10.84	Available to order	1 Ships within 3–7 business days
37	T2044183 Washer, Headstock	Washer, Headstock	1	$8.83	Available to order	1 Ships within 3–7 business days
38	T2040304 Locknut, M30	Locknut, M30	1	$21.37	Available to order	1 Ships within 3–7 business days
41	T2041501 Mudguard Bracket	Mudguard Bracket	2	$31.38	Backorder — Mid October 2026	2
42	T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv	Screw, Pan/Hd, Tx, M6 x 16, Slv	2	$1.04	Available to order	2 Ships within 3–7 business days
44	T3450200 Plug, Caphead, Chrome	Plug, Caphead, Chrome	2	$4.46	Available to order	2 Ships within 3–7 business days
45	T3600234 Dust Seal, Dia 55	Dust Seal, Dia 55	2	$8.88	Available to order	2 Ships within 3–7 business days
46	T2700332 Reflector, Amber, Oval	Reflector, Amber, Oval All Markets Except BR	2	$6.81	Available to order	2 Ships within 3–7 business days
47	T3551551 Washer, 27.5 x 35 x 0.5	Washer, 27.5 x 35 x 0.5	1	$1.91	Available to order	1 Ships within 3–7 business days
