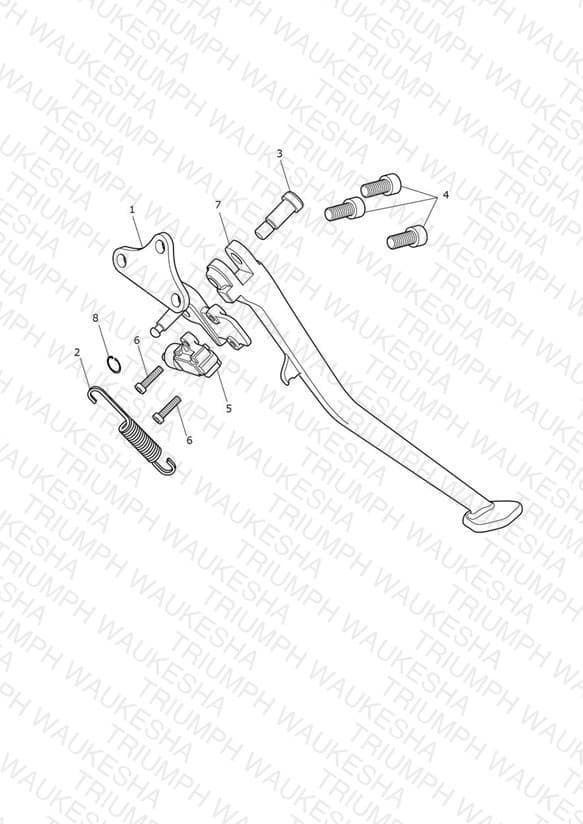

Loading schematic...
Sidestand
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2087654 Bracket, Sidestand | Bracket, Sidestand | 1 | $109.86 | Backorder — Mid October 2026 | 1 |
| 2 | T2080808 Spring, Sidestand | Spring, Sidestand | 1 | $11.33 | Available to order | 1 |
| 3 | T2084020 Pin, Pivot, Sidestand | Pin, Pivot, Sidestand > 859344 - All Except BR & > 867320 - BR Only | 1 | $7.48 | Available to order | 1 |
| 3 | T2084022 Pivot Pin Spares Kit | Pivot Pin Spares Kit 859345 > All Except BR & 867321 > BR Only | 1 | $15.36 | Available to order | 1 |
| 4 | T3050402 Screw, Cap HD, M10 x 23, Slv | Screw, Cap HD, M10 x 23, Slv | 3 | $6.81 | Out of Stock | Notify Me |
| 5 | T2080746 Sidestand Switch | Sidestand Switch | 1 | $59.74 | Available to order | 1 |
| 6 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $1.04 | Available to order | 2 |
| 7 | T2081568 Sidestand Leg | Sidestand Leg | 1 | $117.19 | Backorder — Mid October 2026 | 1 |
| 8 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 > 859344 - All Except BR & > 867320 - BR Only | 1 | $2.29 | Available to order | 1 |
| 8 | T3500350 Circlip, E Type, Int Dia 9 | Circlip, E Type, Int Dia 9 859345 > All Except BR & 867321 > BR Only | 1 | $3.78 | Available to order | 1 |
