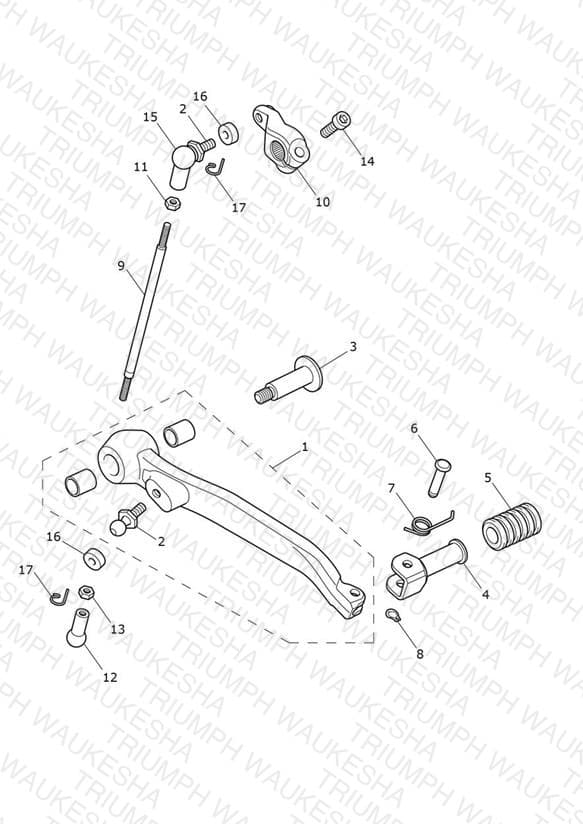

Gearchange Mechanism
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2083203 Gearchange Pedal Assembly | Gearchange Pedal Assembly | 1 | $165.89 | Out of Stock | Notify Me |
| 2 | T2083720 Ball, Ball Joint, M8 | Ball, Ball Joint, M8 | 2 | $26.46 | Available to order | 2 |
| 3 | T3330965 Bolt, Shld, M8, Slv, Enc, Long | Bolt, Shld, M8, Slv, Enc, Long | 1 | $12.57 | Available to order | 1 |
| 4 | T2089051 Pivot, Gearchange | Pivot, Gearchange | 1 | $12.92 | Available to order | 1 |
| 5 | T2089052 Rubber, Gearchange | Rubber, Gearchange | 1 | $24.22 | Available to order | 1 |
| 6 | T2089054 Pin, Gearchange | Pin, Gearchange | 1 | $13.10 | Available to order | 1 |
| 7 | T2089053 Spring, Gearchange | Spring, Gearchange | 1 | $5.88 | Available to order | 1 |
| 8 | T3509055 Circlip, DIN471, Dia 6 | Circlip, DIN471, Dia 6 | 1 | $0.97 | Available to order | 1 |
| 9 | T2082446 Rod, Gearchange | Rod, Gearchange | 1 | $25.14 | Out of Stock | Notify Me |
| 10 | T2085338 Clamp, Gearchange | Clamp, Gearchange | 1 | $97.01 | Out of Stock | Notify Me |
| 11 | T3350306 Nut, M6, Black | Nut, M6, Black | 1 | $1.51 | Available to order | 1 |
| 12 | T2086888 Ball Joint, Left Hand Thread | Ball Joint, Left Hand Thread | 1 | $23.08 | Available to order | 1 |
| 13 | T3350308 Nut, M6, Black, LH | Nut, M6, Black, LH | 1 | $1.51 | Out of Stock | Notify Me |
| 14 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.51 | Available to order | 1 |
| 15 | T2086999 Ball Joint, Right Hand Thread | Ball Joint, Right Hand Thread | 1 | $22.44 | Available to order | 1 |
| 16 | T2086072 Seal, Ball Joint | Seal, Ball Joint | 2 | $7.66 | Available to order | 2 |
| 17 | T2086073 Clip, Ball Joint | Clip, Ball Joint | 2 | $2.37 | Available to order | 2 |
